20459 - Troy-Bilt Pony I Rear-Tine Tiller (SN: P001001 - P101750) HANDLE BARS & CONTROL LEVERS Parts Diagram

Pony I Rear-Tine Tiller

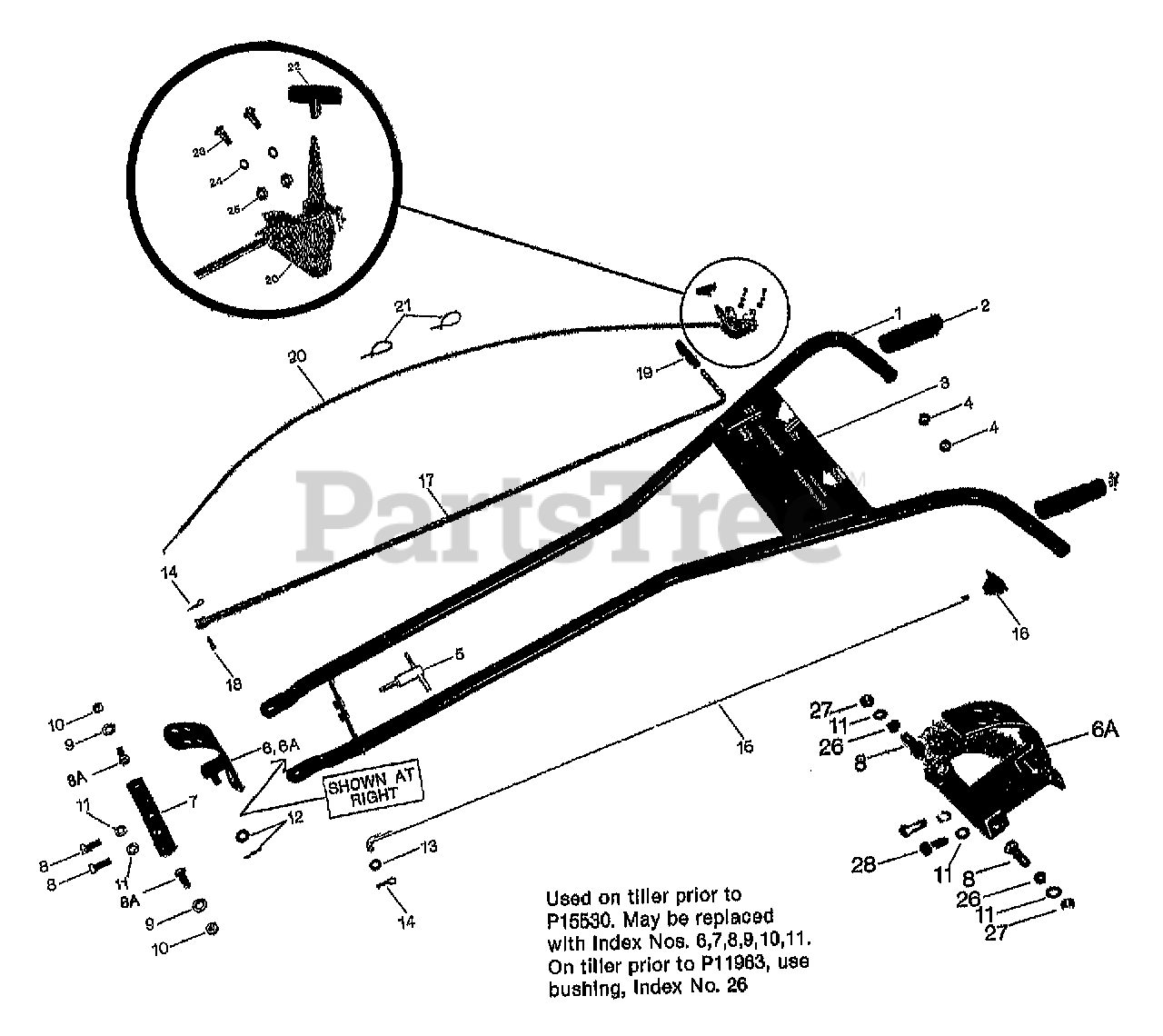

HANDLE BARS & CONTROL LEVERS Parts Diagram

  • Title
1

Troy-Bilt 20356

ASSM-HANDLEBAR

$

$

Currently unavailable

2

Troy-Bilt 9117

GRIP-HANDLEBAR

$

$

Currently unavailable

3

Troy-Bilt 20399

DECAL-CONTROL PANEL

$

$

Currently unavailable

4

Troy-Bilt 9211

GROMMET-PLASTIC

$

$

Currently unavailable

5

Troy-Bilt 20396

ASSM-CLAMP

$

$

Currently unavailable

6

Troy-Bilt 20349

BRKT-HANDLEBAR MTG WELD

$

$

Currently unavailable

6A

Troy-Bilt 20349

BRKT-HANDLEBAR MTG WELD

$

$

Currently unavailable

7

Troy-Bilt 20349-03

BRKT-HANDLEBAR MTG

$

$

Currently unavailable

8

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

8A

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

9

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

10

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

11

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

12

0

WASHER & COTTER PIN - FOR IDLER ASSM. CLUTCH LEVER

$

$

Not available

13

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

14

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 20341

ASSM-DRIVE CONTROL ROD

$

$

Currently unavailable

16

Troy-Bilt 9208

KNOB-DRIVE CNTRL ROD

$

$

Currently unavailable

17

Troy-Bilt 20343

ROD-CONTROL

$

$

Currently unavailable

18

MTD 9336

PIN-CLEVIS .183X1.0 ZP

$

$

Not available

19

Troy-Bilt 9198

GRIP-CONTROL ROD

$

$

Currently unavailable

20

Troy-Bilt 9191

CABLE-THROTTLE (COMPLETE)

$

$

Currently unavailable

21

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

24

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

25

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

26

Troy-Bilt 1113-1

BUSHING-.5X.375X.3 (REPLACES 1113)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

28

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable
