20456 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

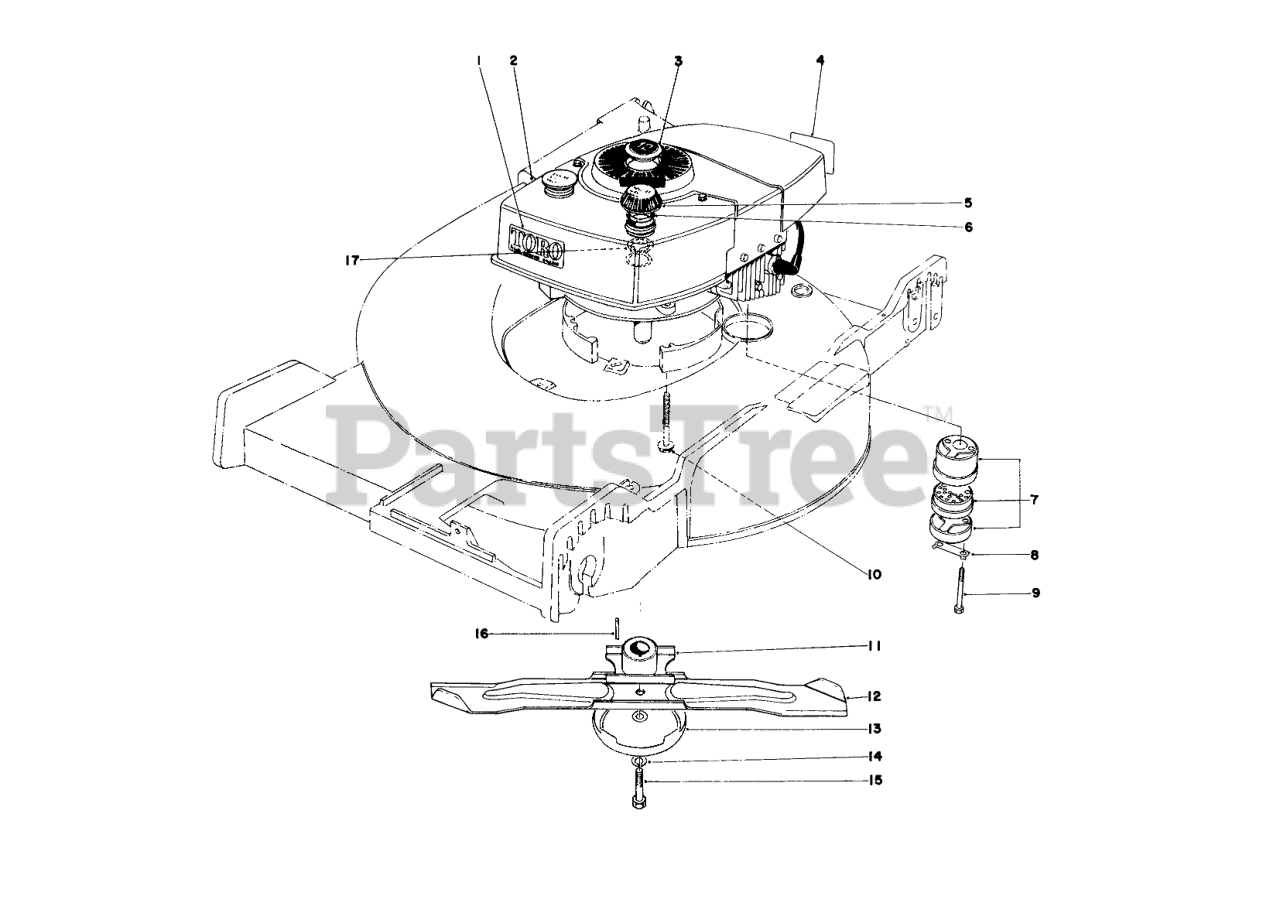

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-486

Engine

$

$

Currently unavailable

3

Toro 23-0600

Plug Button
(Superseded to 38-1480)

$16.99

$

In Stock, only 1 left!

0

4

Toro 20-2710

Decal Maintenance

$

$

Not available

5

Toro 20-2860

Gas Cap (Incl. Ref. #6 & 17)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 5-4769

Muffler Assembly (Incl. Ref. #8 & 9)

$62.99

$

Usually ships in 3-6 days

0

8

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

11

Toro 24-6560

BLADE RETAINER WA

$149.99

$

Usually ships in 3-6 days

0

12

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

In Stock, only 1 left!

0

13

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 23-0080

BLADE SCREW

$

$

Not available

16

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

17

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available
