20455x30D - Murray 20" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

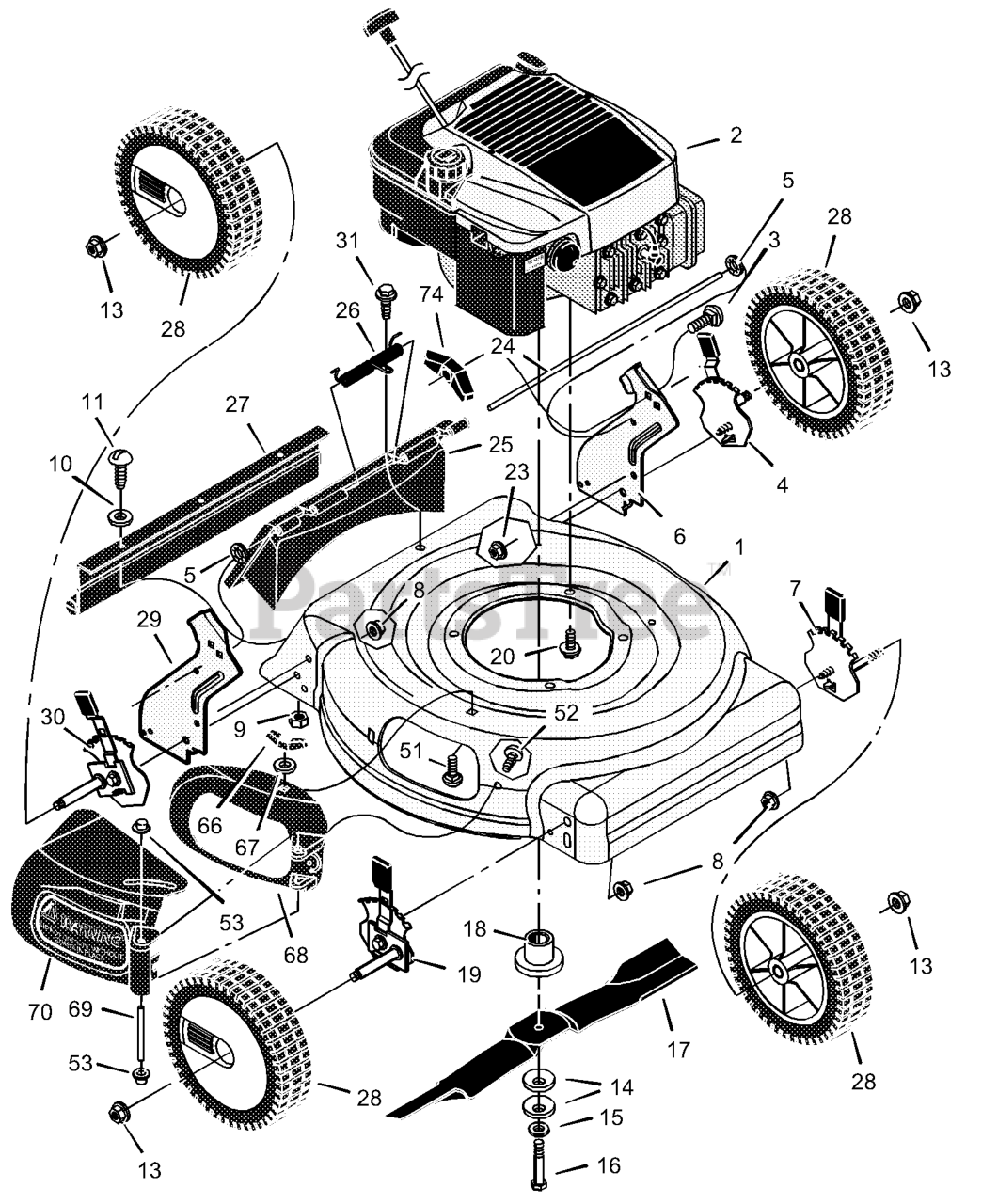

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 776151

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 672605MA

Adjuster, Left Rear Height

$23.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601MA

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

$3.99

$

Usually ships in 2-12 days

0

11

Murray 00421

Screw

$

$

Currently unavailable

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

$4.49

$

Usually ships in 2-12 days

0

$26.99

$

In Stock, only 2 left!

0

18

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600MA

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 25)

$

$

Currently unavailable

25

Murray 672610

Door, Rear

$11.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 1 left!

0

27

Murray 671970MA

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672060MA

Wheel
(Superseded to 336545MA)

$33.99

$

Usually ships in 2-12 days

0

29

Murray 1101238E245

Bracket, Right Handle

$6.49

$

Usually ships in 2-12 days

0

30

Murray 672604MA

Adjuster, Right Rear Height

$24.99

$

Usually ships in 2-12 days

0

31

$4.49

$

In Stock, Qty 6

0

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

$3.49

$

Usually ships in 2-12 days

0

53

Murray 028X42MA

Push On Cap

Note: (Included with Ref. No. 70)

$3.99

$

Usually ships in 2-12 days

0

66

Murray 01486

Wingnut

$

$

Currently unavailable

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

Murray 671926

Bezel

Note: (Included with Ref. No. 70)

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

Note: (Included with Ref. No. 70)

$

$

Currently unavailable

70

Murray 672158MA

Deflector, Chute

$72.99

$

Usually ships in 2-12 days

0

74

$4.99

$

In Stock, only 3 left!

0

--

Murray F-020444L

Instruction Book

$

$

Currently unavailable
