20452 (R-21 S) - Toro 21" Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12H802-1758-E1 Parts Diagram

21" Recycler Walk-Behind Mower

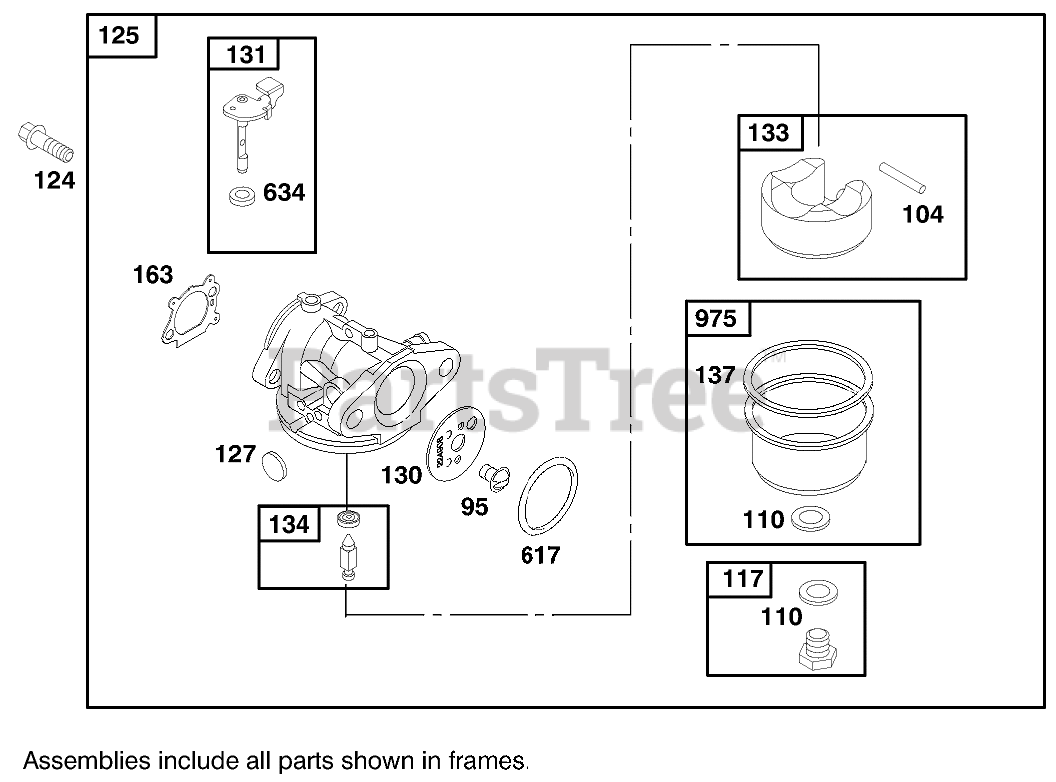

ENGINE BRIGGS & STRATTON MODEL 12H802-1758-E1 Parts Diagram

  • Title

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

$3.99

$

In Stock, Qty 10

0

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

117

Briggs & Stratton 494870

Jet-Main

$

$

Not available

124

Briggs & Stratton 94840

Screw-Hex
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 498170

Carburetor
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

130

Briggs & Stratton 224908

Throttle Valve
(Superseded to 691203)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Shaft and Lever

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-Part No. 498260.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

972

Briggs & Stratton 495224

Tank-Fuel
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
