20451 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

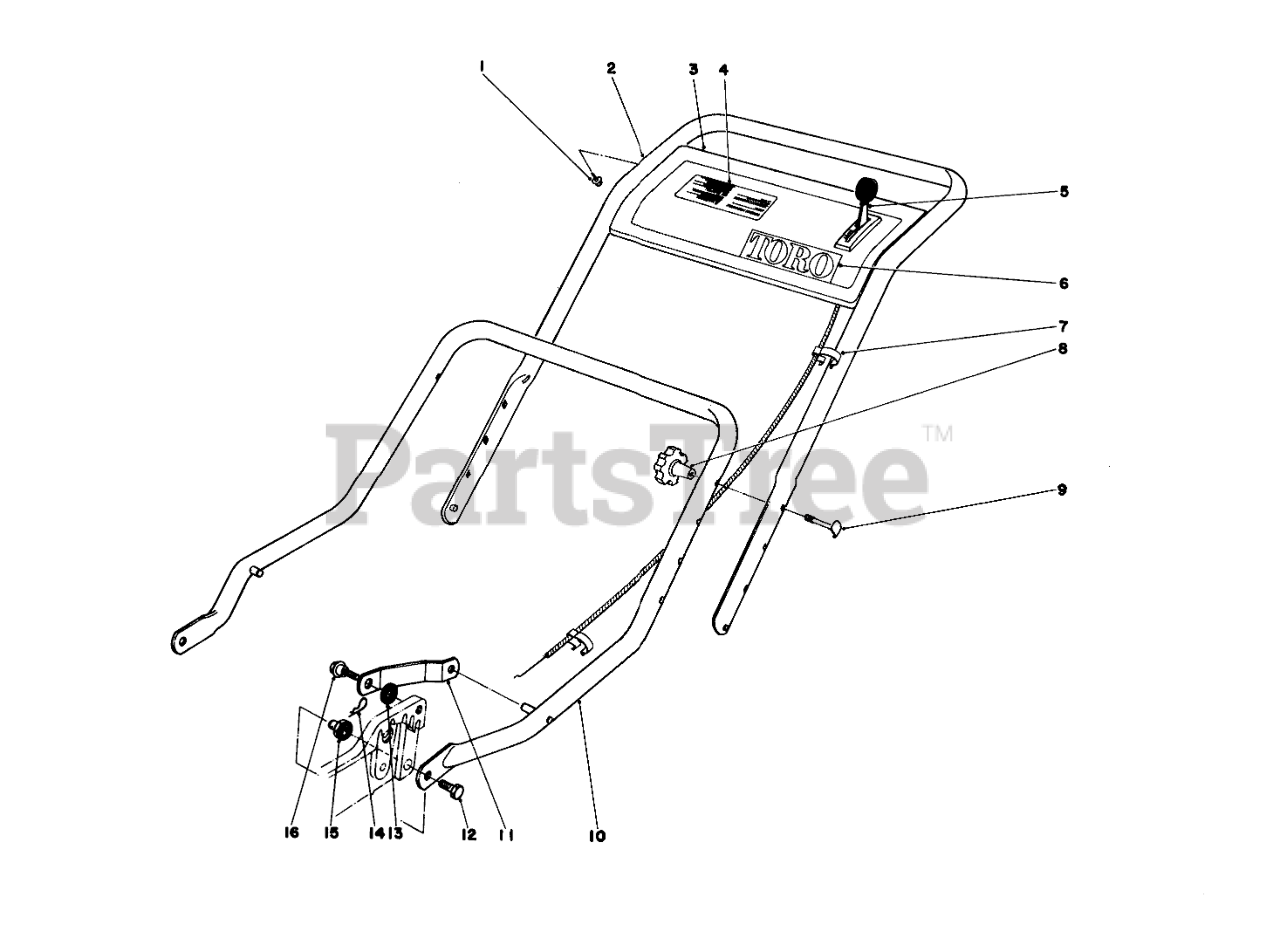

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 23-0580

Upper Handle

$

$

Not available

3

Toro 26-3090

Control Plate

$

$

Currently unavailable

4

Toro 26-3080

Decal-Control Plate

$

$

Currently unavailable

5

Toro 26-0710

Control-Throttle
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

6

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

7

Toro 218-465

BOWDEN CLIP

$

$

Not available

8

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

9

Toro 6-6330

HANDLE SCREW

$

$

Not available

10

Toro 26-0740

Lower Handle

$

$

Currently unavailable

11

Toro 26-0760

HANDLE LATCH

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

14

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

15

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

16

Toro 5-2490

SCREW-SHOULDER

$

$

Not available
