20451 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1976) FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

Walk-Behind Mower

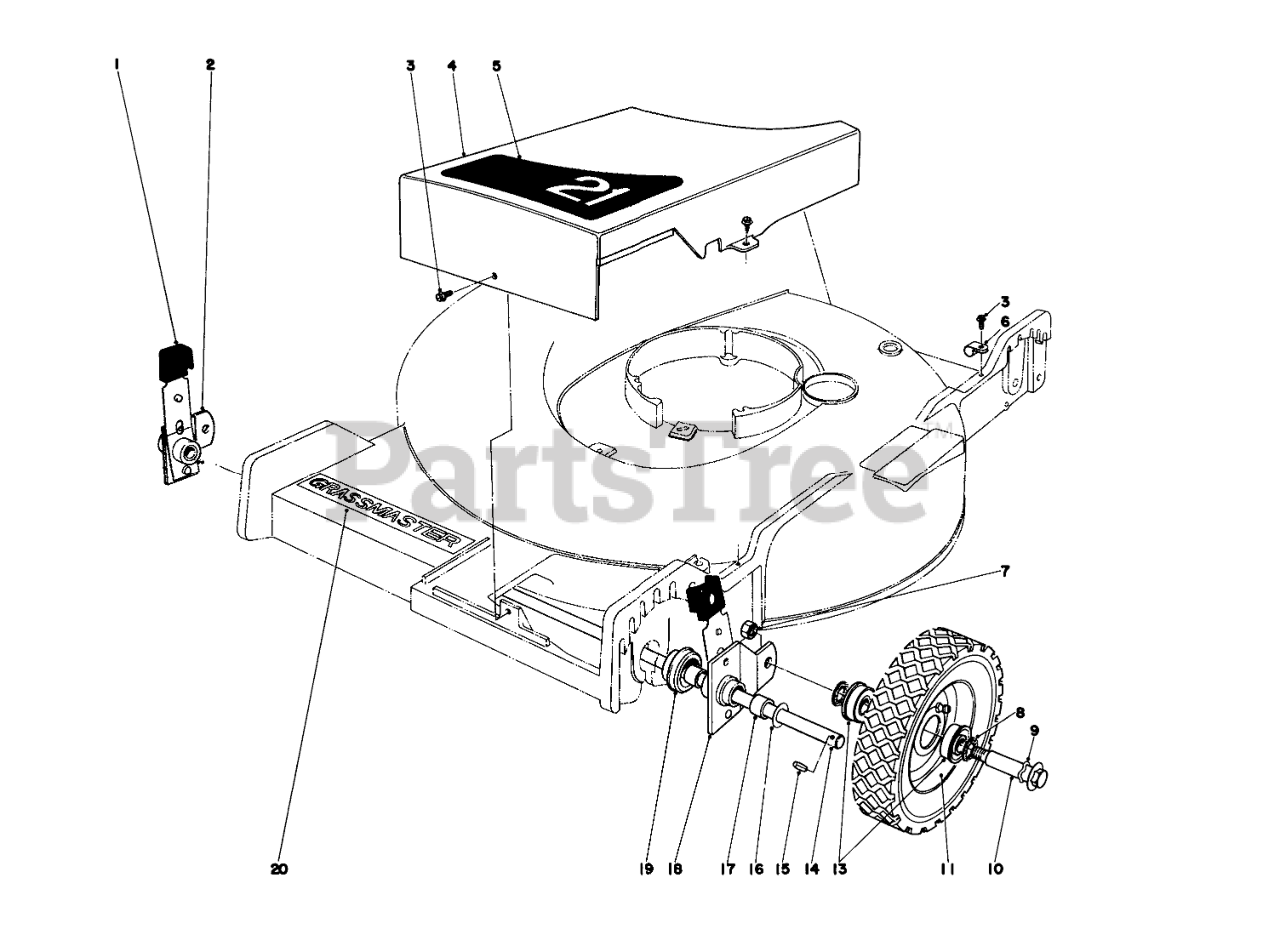

FRONT WHEEL AND PIVOT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

2

Toro 25-8190

Pivot Arm (Incl. Ref. #17)

$

$

Not available

3

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

4

Toro 23-0510

Belt Cover

$

$

Not available

5

Toro 23-0870

Decal

$

$

Currently unavailable

6

Toro 2412-51

CABLE CLAMP

$

$

Not available

7

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

8

Toro 26-7500

FELT WASHER

$

$

Not available

9

Toro 3290-393

SPRING WASHER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 3-2652

Bolt

$

$

Not available

11

Toro 26-2960

Wheel & Tire assembly (Incl. Ref. #13)
(Superseded to 11-1309)

$124.99

$

Usually ships in 3-6 days

0

13

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

14

Toro 27-0050

Shaft-Pivot Arm

$

$

Currently unavailable

15

Toro 3284-3

PIN-GROOVED

$2.99

$

In Stock, Qty 12

0

16

Toro 18-9810

WASHER-THRUST

$9.99

$

In Stock, only 2 left!

0

17

Toro 256-206

BUSHING

$1.99

$

In Stock, only 2 left!

0

18

Toro 25-8180

Pivot Arm (Incl. Ref. #17)

$147.99

$

Usually ships in 3-6 days

0

19

Toro 23-0380

End Cap
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

20

Toro 23-0930

Decal Grassmaster

$

$

Currently unavailable
