20450 (R-21 P) - Toro 21" Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

21" Recycler Walk-Behind Mower

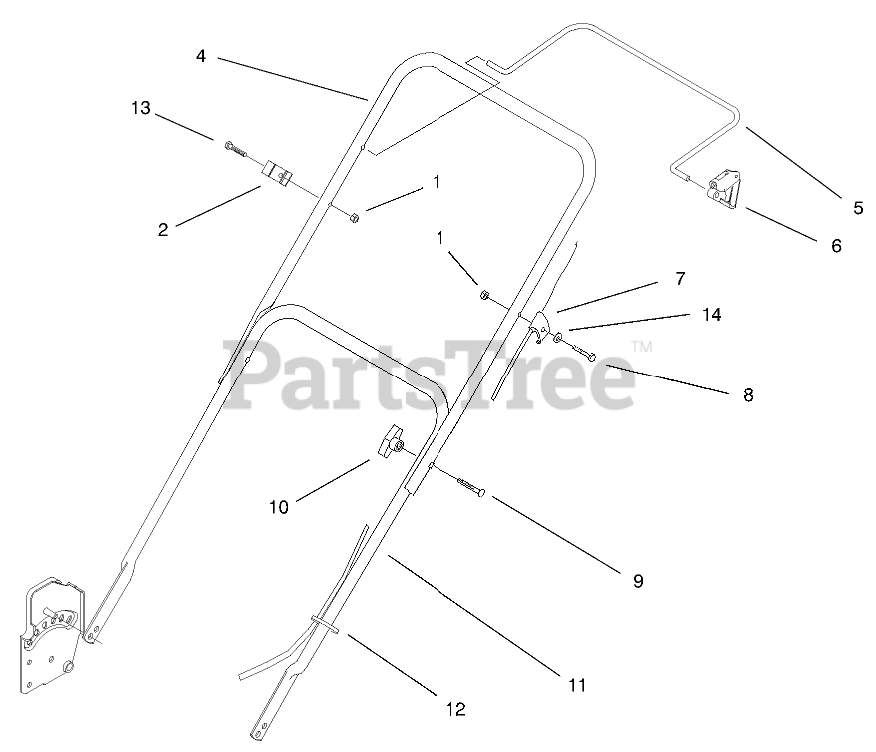

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

2

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

4

Toro 93-0237

Handle-Upper
(Superseded to 93-0237-05)

$74.99

$

Usually ships in 3-6 days

0

5

Toro 92-3134

Bar-Control
(Superseded to 92-3134-03)

$

$

Not available

6

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

7

Toro 98-7147

CABLE - BRAKE

$41.99

$

Usually ships in 3-6 days

0

8

Toro 321-52

.250-20X1.625 HH SCREW

$

$

Not available

9

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

10

Toro 98-7134

KNOB-HANDLE

$2.99

$

In Stock, Qty 16

0

11

Toro 93-0238

Handle-Lower
(Superseded to 93-0238-05)

$

$

Not available

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

14

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
