20449 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

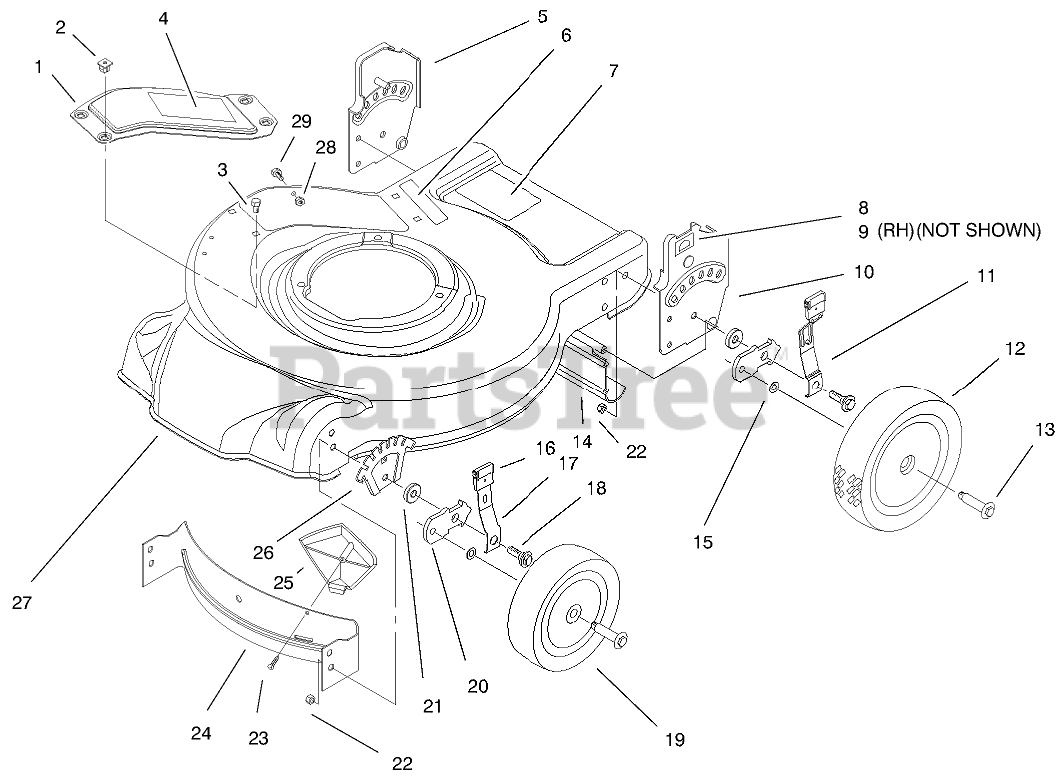

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 16-9269

Cover-Recycling (Incl. Ref. #4)

$

$

Not available

2

Toro 93-0242

NUT - CLIP
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 85-7060

DECAL - COVER

$

$

Not available

5

Toro 93-0236

ASM - RH HANDLE BRACKET

$33.99

$

In Stock, only 1 left!

0

6

Toro 93-0262

DECAL - WARNING

$

$

Not available

7

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

8

Toro 92-2915

DECAL-HOC, RH

$6.49

$

Usually ships in 3-6 days

0

9

Toro 92-2914

DECAL-HOC, LH

$

$

Not available

10

Toro 93-0235

ASM - LH HANDLE BRACKET

$28.99

$

In Stock, only 1 left!

0

11

Toro 92-1005

REAR SPRING ARM ASM

$21.99

$

In Stock, only 1 left!

0

12

Toro 92-9592

WHEEL ASM

$60.99

$

In Stock, only 4 left!

0

13

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

14

Toro 92-8647

SHIELD-TRAILING

$41.99

$

In Stock, only 1 left!

0

15

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$14.99

$

In Stock, only 2 left!

0

17

Toro 614687

ARM-FRONT SPRING

$21.99

$

In Stock, only 3 left!

0

18

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

19

Toro 92-9591

WHEEL ASM

$27.99

$

In Stock, only 4 left!

0

20

Toro 614637

Bracket-H.
(Superseded to 95-7403-03)

$

$

Not available

21

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

24

Toro 93-0222

Baffle Front
(Superseded to 93-0222-03)

$29.99

$

Usually ships in 3-6 days

0

25

Toro 93-0216

KICKER-FRONT

$

$

Not available

26

Toro 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

27

Toro 16-9259

Deck-21in Steel (Incl. Ref. #6 & 7 Pg. 1, #29 Pg. 2)

$

$

Not available

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

$1.49

$

Usually ships in 3-6 days

0
