20449 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

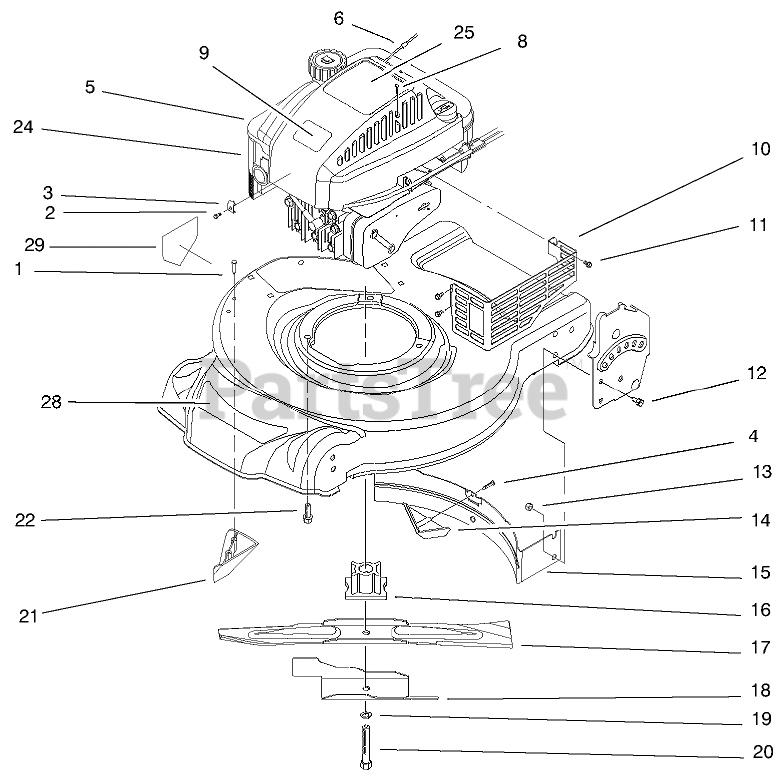

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-8470

SCREW-CLAMP

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

5

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

6

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

8

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

9

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

10

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

11

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 93-0217

KICKER-REAR

$

$

Not available

15

Toro 93-0223

Baffle-Rear
(Superseded to 93-0223-03)

$29.99

$

In Stock, only 1 left!

0

16

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

17

Toro 93-0241

Blade
(Superseded to 93-0241-03)

$45.99

$

In Stock, only 3 left!

0

18

Toro 93-0219

Accelerator
(Superseded to 93-0219-03)

$41.99

$

In Stock, only 4 left!

0

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

20

Toro 26-0670

SCREW-BLADE

$

$

Not available

21

Toro 93-0218

KICKER - SIDE

$

$

Not available

22

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Engine-Quantum 5.0 Hp

$

$

Not available

25

Toro 95-1652

DECAL - RECOIL

$

$

Not available

28

Toro 93-0245

DECAL - DECK

$

$

Not available

29

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0
