20444 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

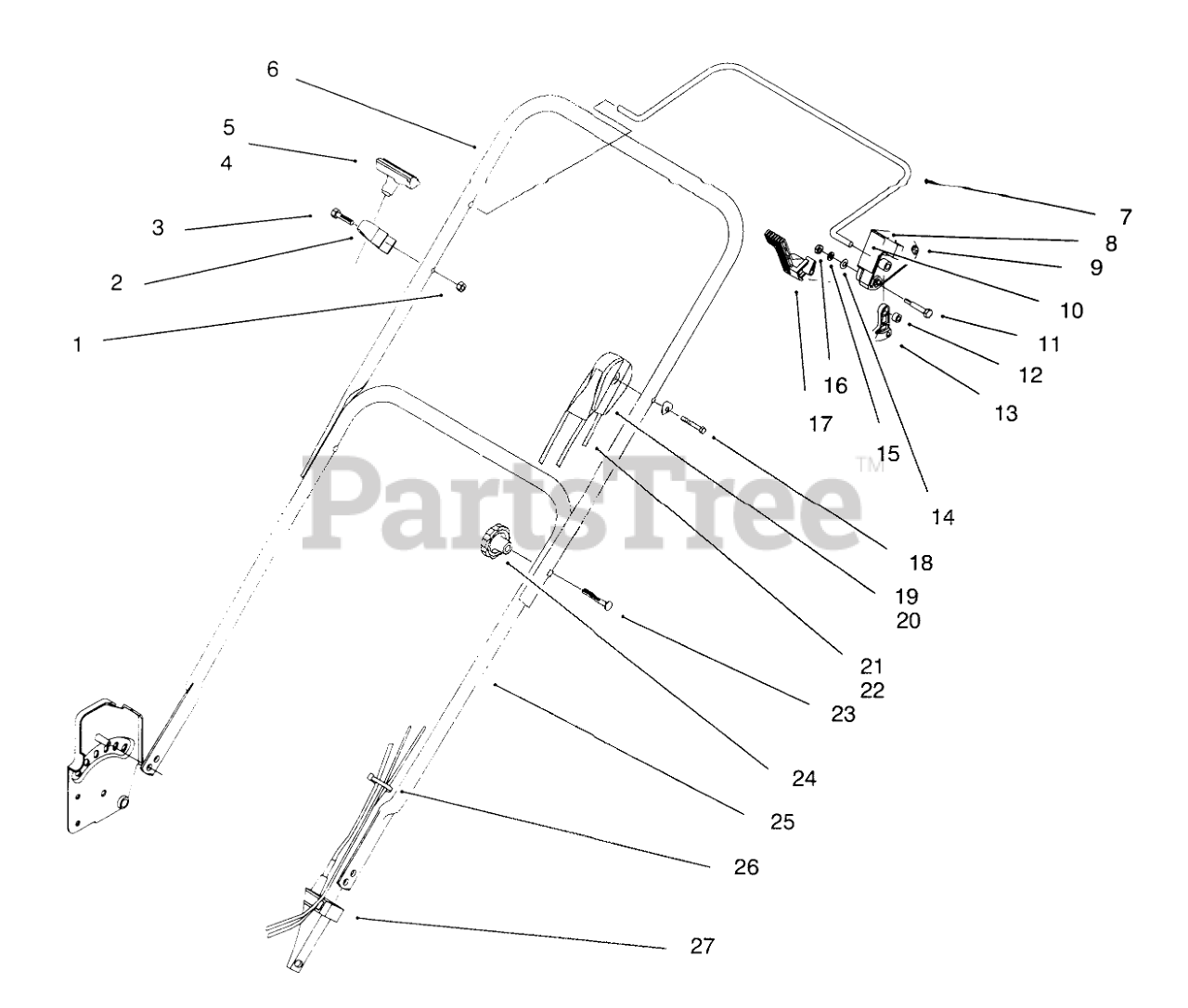

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

2

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

3

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

4

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

5

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

6

Toro 93-0237

Handle-Upper
(Superseded to 93-0237-05)

$74.99

$

Usually ships in 3-6 days

0

7

Toro 92-3135

Bar-Control
(Superseded to 92-3135-03)

$

$

Not available

8

Toro 92-2292

DECAL - INSTRUCTION

$

$

Not available

9

Toro 93-0340

STOP - PIVOT, PLASTIC

$29.99

$

In Stock, Qty 6

0

10

Toro 92-2280

DECAL - INSTRUCTION

$

$

Not available

11

Toro 92-3132

SHOULDER BOLT

$

$

Not available

12

Toro 92-3133

SPACER-LEVER, TRACTION

$3.99

$

In Stock, Qty 5

0

13

Toro 46-5520

LEVER-TRACTION

$

$

Not available

14

Toro 92-2298

WASHER - SPRING

$

$

Not available

15

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

16

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 92-2299

LEVER - SHIFT

$25.99

$

Usually ships in 3-6 days

0

18

Toro 93-0261

WASHER - CURVED

$

$

Not available

19

Toro 93-0250

CABLE - THROTTLE/TRACTION (Model 20444 and 20454)

$

$

Not available

20

Toro 93-0254

CABLE - THROTTLE/TRACTION (Model 20442 Only)

$

$

Not available

21

Toro 93-0251

CABLE - BRAKE (Model 20444 and 20454)

$63.99

$

Usually ships in 3-6 days

0

22

Toro 93-0255

CABLE - BRAKE (Model 20442 Only)

$49.99

$

In Stock, only 2 left!

0

23

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

24

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

25

Toro 93-0238

Handle-Lower
(Superseded to 93-0238-05)

$

$

Not available

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

27

Toro 93-7380

ANCHOR-CABLE

$14.99

$

In Stock, only 1 left!

0
