20442 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) STARTER ASSEMBLY BRIGGS AND STRATTON 127802-0640-01 Parts Diagram

Walk-Behind Mower

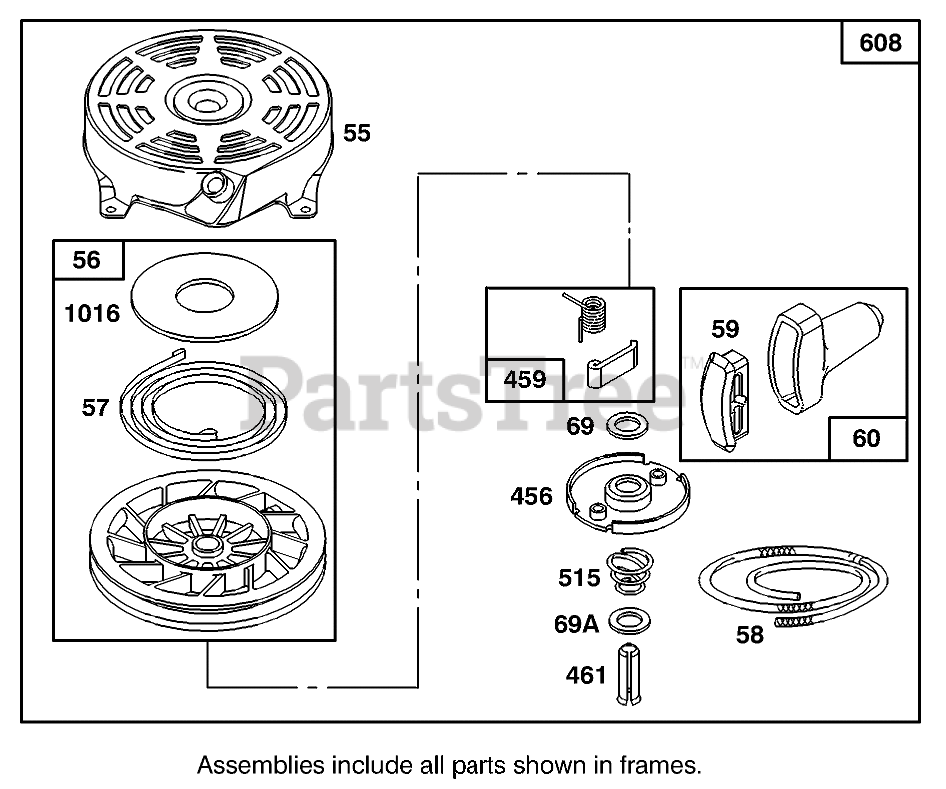

STARTER ASSEMBLY BRIGGS AND STRATTON 127802-0640-01 Parts Diagram

  • Title
55

Briggs & Stratton 492831

Housing-Starter

Note: Obtain parts from www.briggsandstratton.com

$74.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 493824

Pulley-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

57

Briggs & Stratton 262594

Spring-Starter
(Superseded to 491889)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

59

Briggs & Stratton 396892

Insert-Grip

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Grip-Starter Rope

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 280973

Washer

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

Washer

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

Retainer

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 5

0

459

Briggs & Stratton 492833

PawI-Ratchet

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

Pin-Shaft

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262625

Spring

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 493295

Starter Assy.
(Superseded to 497598)

Note: Obtain parts from www.briggsandstratton.com

$75.99

$

In Stock, only 2 left!

0

1016

Briggs & Stratton 224278

Spacer

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0
