20442 - Toro Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE ASSEMBLY #2 Parts Diagram

Walk-Behind Mower

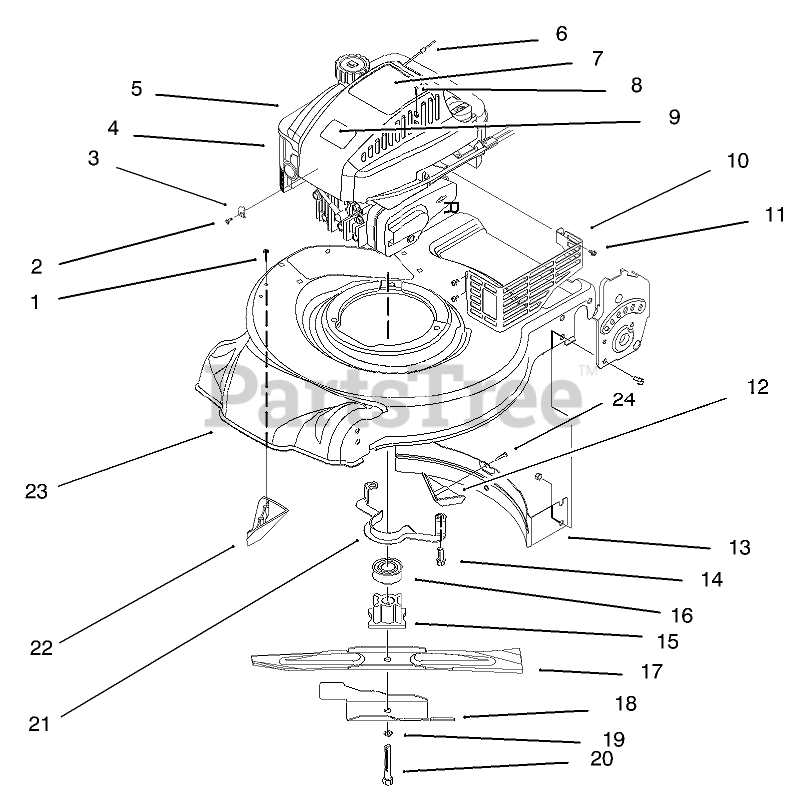

ENGINE ASSEMBLY #2 Parts Diagram

  • Title

1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-8470

SCREW-CLAMP

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

4

Engine-Quantum 4 HP (Model No. 20444 Only)

$

$

Not available

5

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

6

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 93-0247

OBS EXCEPT FOR SERVICE DECAL - ENGINE

$

$

Not available

8

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

9

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

10

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0

11

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

12

Toro 93-0217

KICKER-REAR

$

$

Not available

13

Toro 93-0223

Baffle-Rear
(Superseded to 93-0223-03)

$29.99

$

In Stock, only 1 left!

0

14

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

15

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

16

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

17

Toro 93-0241

Blade
(Superseded to 93-0241-03)

$45.99

$

In Stock, only 1 left!

0

18

Toro 93-0219

Accelerator
(Superseded to 93-0219-03)

$41.99

$

In Stock, only 1 left!

0

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

20

Toro 26-0670

SCREW-BLADE

$

$

Not available

21

Toro 93-0208

GUIDE - BELT

$14.99

$

Usually ships in 3-6 days

0

22

Toro 93-0218

KICKER - SIDE

$

$

Not available

23

Toro 16-9279

Deck-21" Steel SP (Incl. Ref. #6 pg.1, Ref. #34 pg. 2, & Ref. #16pg. 3)

$

$

Not available

24

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0
