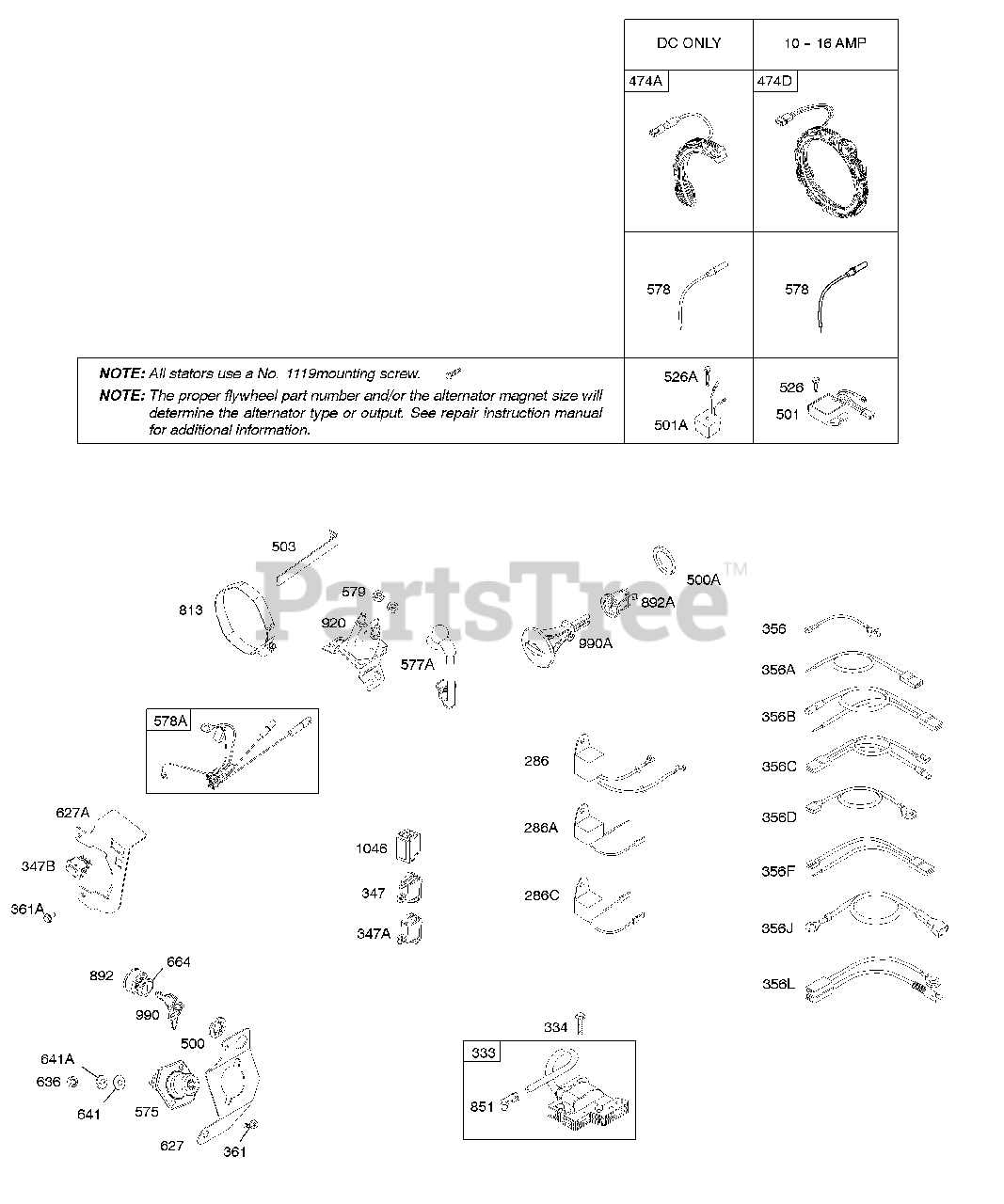

204417-0141-E1 - Briggs & Stratton Horizontal Engine Alternator, Ignition Parts Diagram

Horizontal Engine

Alternator, Ignition Parts Diagram

  • Title

286C

Briggs & Stratton 699951

Module-Oil Sensor

Note: Used After Code Date 03010500

$46.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347A

Briggs & Stratton 697854

SWITCH, Rocker

$13.99

$

Usually ships in 2-12 days

0

356D

Briggs & Stratton 695366

Wire-Stop
(Superseded to 694860)

Note: Used After Code Date 03010500 Used Before Code Date 03072400

$9.49

$

Usually ships in 2-12 days

0

356J

Briggs & Stratton 699994

Wire-Stop

Note: Used After Code Date 03072300

$5.99

$

Usually ships in 2-12 days

0

361A

Briggs & Stratton 690297

Screw

Note: (Starting Switch)

$3.49

$

In Stock, Qty 12

0

474A

Briggs & Stratton 695730

Alternator

Note: (3 Amps DC)

$71.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

500A

Briggs & Stratton 792613

Washer

Note: (Key Switch)

$12.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 692303

Switch-Starting

$

$

Not available

577A

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

Note: (1 Wire, 48-1/2" Long)(Snap Connect Female Pin Socket, And Bare WireEnd)

$17.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 790948

Wire Assembly

$19.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

627

Briggs & Stratton 696064

Bracket-Stopswitch

$31.99

$

Usually ships in 2-12 days

0

627A

Briggs & Stratton 792608

Bracket-Stopswitch

$14.99

$

Usually ships in 2-12 days

0

636

Briggs & Stratton 696198

Nut

Note: (Starting Switch)

$2.99

$

Usually ships in 2-12 days

0

641

Briggs & Stratton 691075

WASHER

Note: (Starting Switch)

$3.49

$

Usually ships in 2-12 days

0

641A

Briggs & Stratton 690282

Washer

Note: (Starting Switch)

$3.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

892

Briggs & Stratton 392833

Switch-Key

$41.99

$

In Stock, only 2 left!

0

892A

Briggs & Stratton 791944

Switch-Key

$14.99

$

In Stock, only 1 left!

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

990A

Briggs & Stratton 695756

Key Set
(Superseded to 794696)

$7.49

$

In Stock, Qty 19

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
