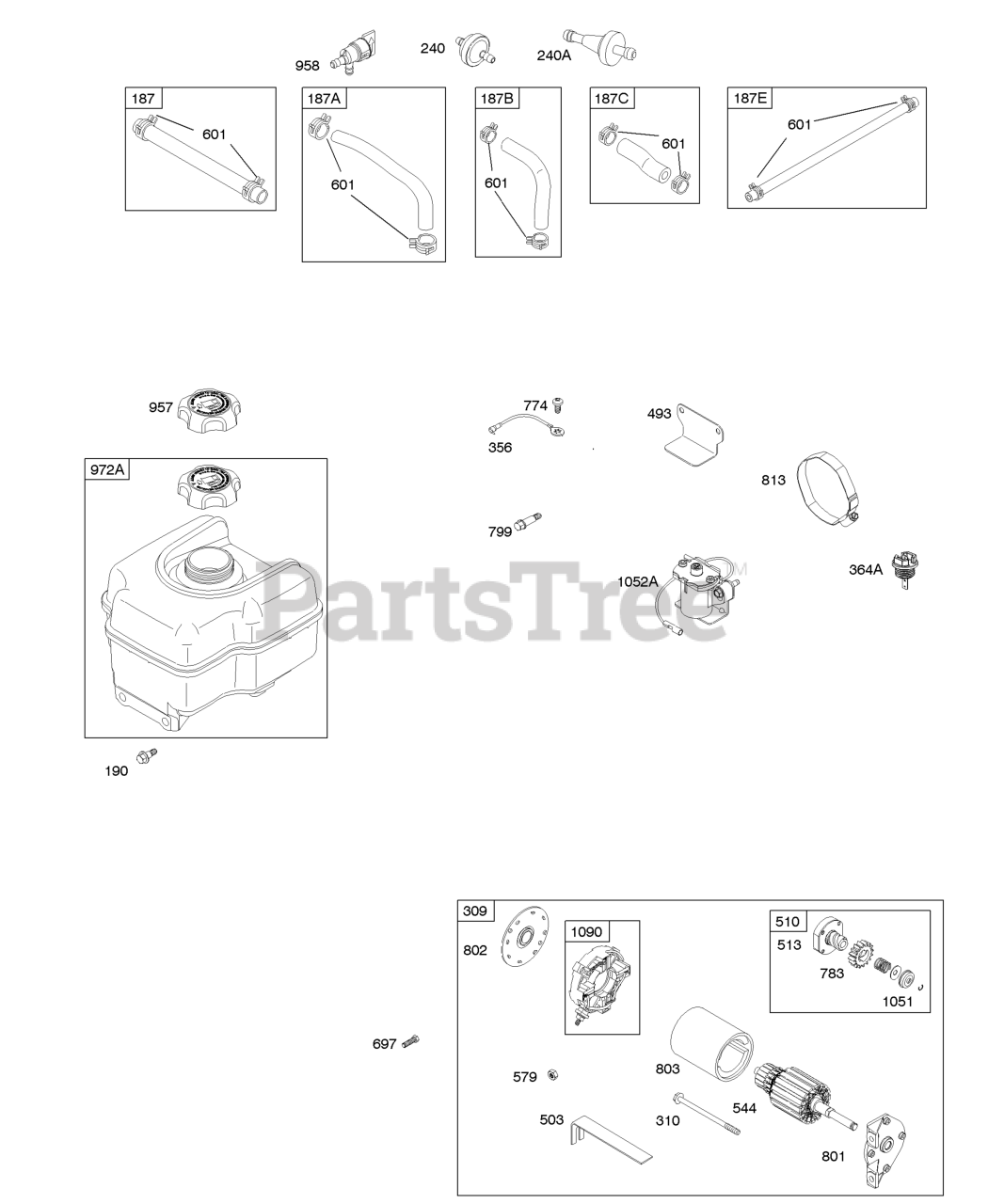

204412-0153-E1 - Briggs & Stratton Horizontal Engine Electric Starter, Fuel Supply Parts Diagram

Horizontal Engine

Electric Starter, Fuel Supply Parts Diagram

  • Title

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 695429

Line-Fuel
(Superseded to 791869)

Note: Used Before Code Date 05070100

$

$

Not available

187A

Briggs & Stratton 791869

Line-Fuel

Note: Used After Code Date 05063000

$

$

Not available

187B

Briggs & Stratton 791834

Line-Fuel

Note: Used After Code Date 05063000

$

$

Not available

187C

Briggs & Stratton 791871

Line-Fuel

Note: Used After Code Date 05063000

$12.99

$

In Stock, only 1 left!

0

187B

Briggs & Stratton 695482

Line-Fuel

Note: Used Before Code Date 05070100

$6.99

$

Usually ships in 2-12 days

0

187C

Briggs & Stratton 695483

Line-Fuel
(Superseded to 791871)

Note: Used Before Code Date 05070100

$12.99

$

In Stock, only 1 left!

0

187E

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (23 Inches Long)(Cut To Required Length)

$10.99

$

In Stock, Qty 20+

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

Usually ships in 2-12 days

0

240A

Briggs & Stratton 694485

Filter-Fuel
(Superseded to 595824)

$15.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 695479

MOTOR, Starter

$226.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

364A

Briggs & Stratton 699947

TERMINAL, Oil Plug

$8.49

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 694861

Bracket-Mounting
(Superseded to 794805)

$64.99

$

In Stock, only 1 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

774

Briggs & Stratton 695447

Screw

Note: (Stop Wire)

$3.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

799

Briggs & Stratton 695446

SCREW

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 694482

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter

Note: (Not Serviced Separately, Order Starter Motor 695479)

$

$

Not available

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 792647

Cap-Fuel Tank
(Superseded to 795027)

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off(PLT)

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972A

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 9

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1052A

Briggs & Stratton 791159

Sensor-Oil
(Superseded to 794805)

$64.99

$

In Stock, only 1 left!

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 5

0
