20441 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

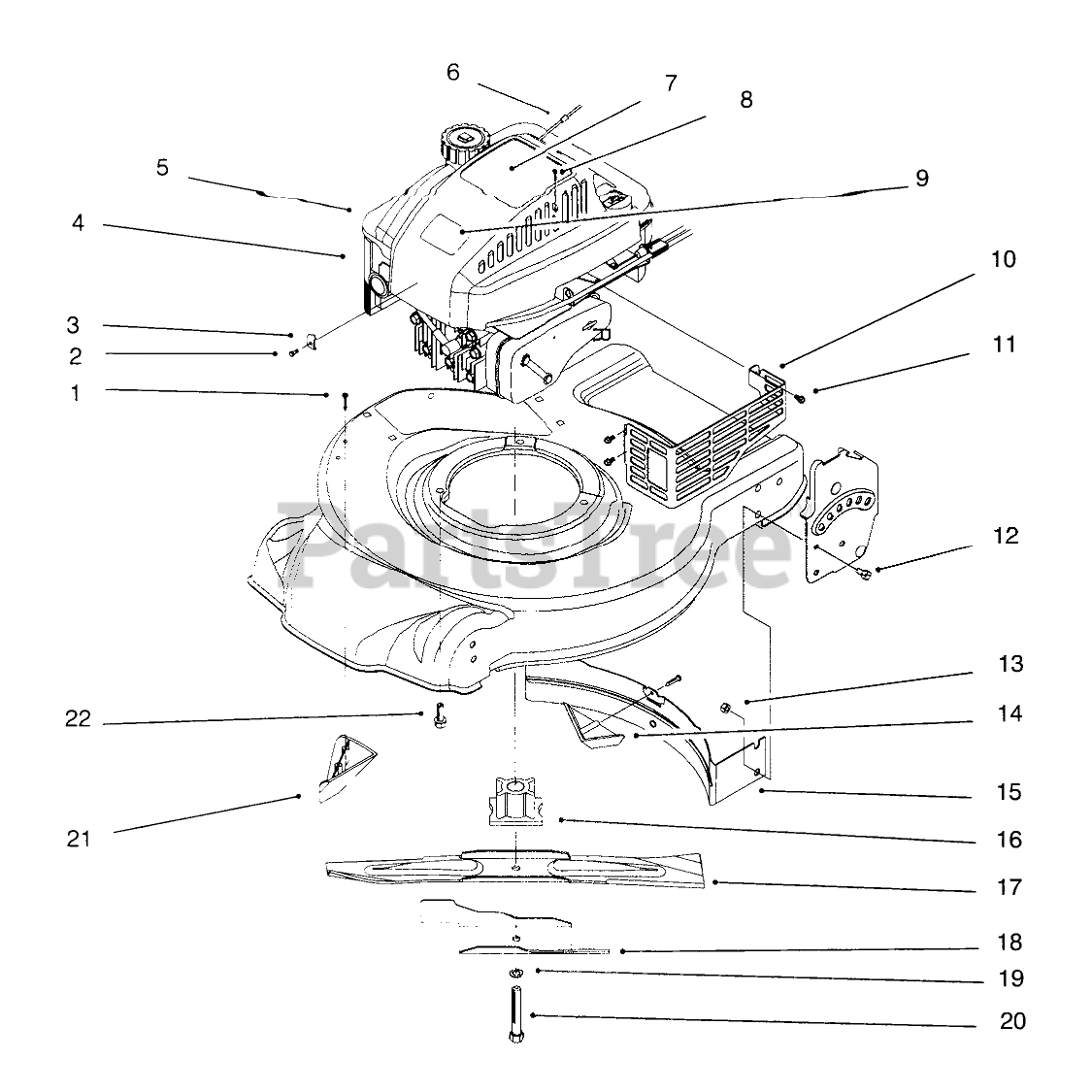

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Toro 93-8470

SCREW-CLAMP

$

$

Not available

3

Toro 2210-249

CLAMP-CASING

$3.99

$

Usually ships in 3-6 days

0

4

Engine-Quantum 4HP (Model No. 20441 & 20453)

$

$

Not available

5

Toro 93-0243

SHROUD-ENGINE

$63.99

$

Usually ships in 3-6 days

0

6

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

7

Toro 93-0247

OBS EXCEPT FOR SERVICE DECAL - ENGINE

$

$

Not available

8

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

9

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

10

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$27.99

$

Usually ships in 3-6 days

0

11

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 93-0217

KICKER-REAR

$

$

Not available

15

Toro 93-0223

Baffle-Rear
(Superseded to 93-0223-03)

$31.99

$

In Stock, only 1 left!

0

16

Toro 62-7540

BLADE RETAINER

$104.99

$

In Stock, only 1 left!

0

17

Toro 93-0241

Blade
(Superseded to 93-0241-03)

$42.99

$

In Stock, Qty 5

0

18

Toro 93-0219

Accelerator
(Superseded to 93-0219-03)

$43.99

$

In Stock, only 4 left!

0

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

20

Toro 26-0670

SCREW-BLADE

$

$

Not available

21

Toro 93-0218

KICKER - SIDE

$

$

Not available

22

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0
