20441 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) BLOCK ASSEMBLY (MODEL NO. 20441 ONLY) Parts Diagram

Walk-Behind Mower

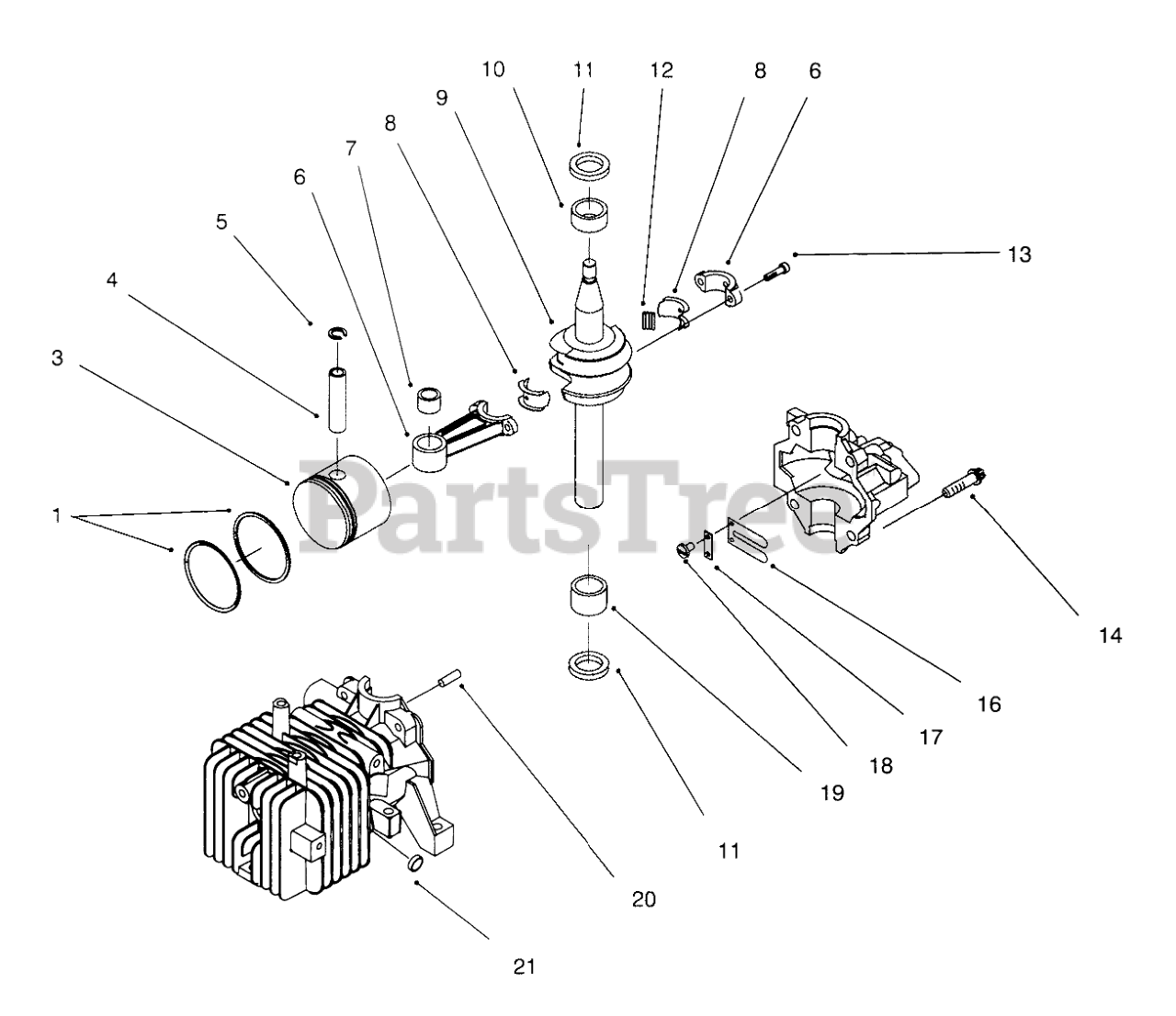

BLOCK ASSEMBLY (MODEL NO. 20441 ONLY) Parts Diagram

  • Title

1

Toro 681737

F-RING SET

$

$

Not available

3

Toro 92-4923

PISTON & RING

$

$

Not available

Toro 92-4925

Piston & Connecting Rod (Incl. Ref. #1, 3-7 & 13)

Note: Not illustrated

$

$

Not available

4

Toro 606608

PIN-WRIST VF
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

5

Toro 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

6

Toro 92-4921

Connecting Rod Assembly (Incl. Ref. #8, 12 & 13)

$241.99

$

In Stock, only 2 left!

0

7

Toro 92-4927

BEARING XEV

$

$

Not available

8

Toro 677982

LINER ASM

$46.99

$

In Stock, only 2 left!

0

9

Toro 94-5733

C/SHAFT 48CM FV

$274.99

$

Usually ships in 3-6 days

0

10

Toro 681830

BEARING V

$41.99

$

Usually ships in 3-6 days

0

11

Toro 611396

SEAL-OIL

$6.99

$

In Stock, only 2 left!

0

12

Toro 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

13

Toro 611393

SCREW-HSH

$22.99

$

Usually ships in 3-6 days

0

14

Toro 614636

SCREW-HWH V

$

$

Not available

16

Toro 602588

REED-CARBURETOR

$

$

Not available

17

Toro 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

18

Toro 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

19

Toro 681831

BEARING V

$24.99

$

Usually ships in 3-6 days

0

20

Toro 609629

DOWEL XEV

$

$

Not available

21

Toro 609123

PLUG-CORE VF

$3.49

$

Usually ships in 3-6 days

0
