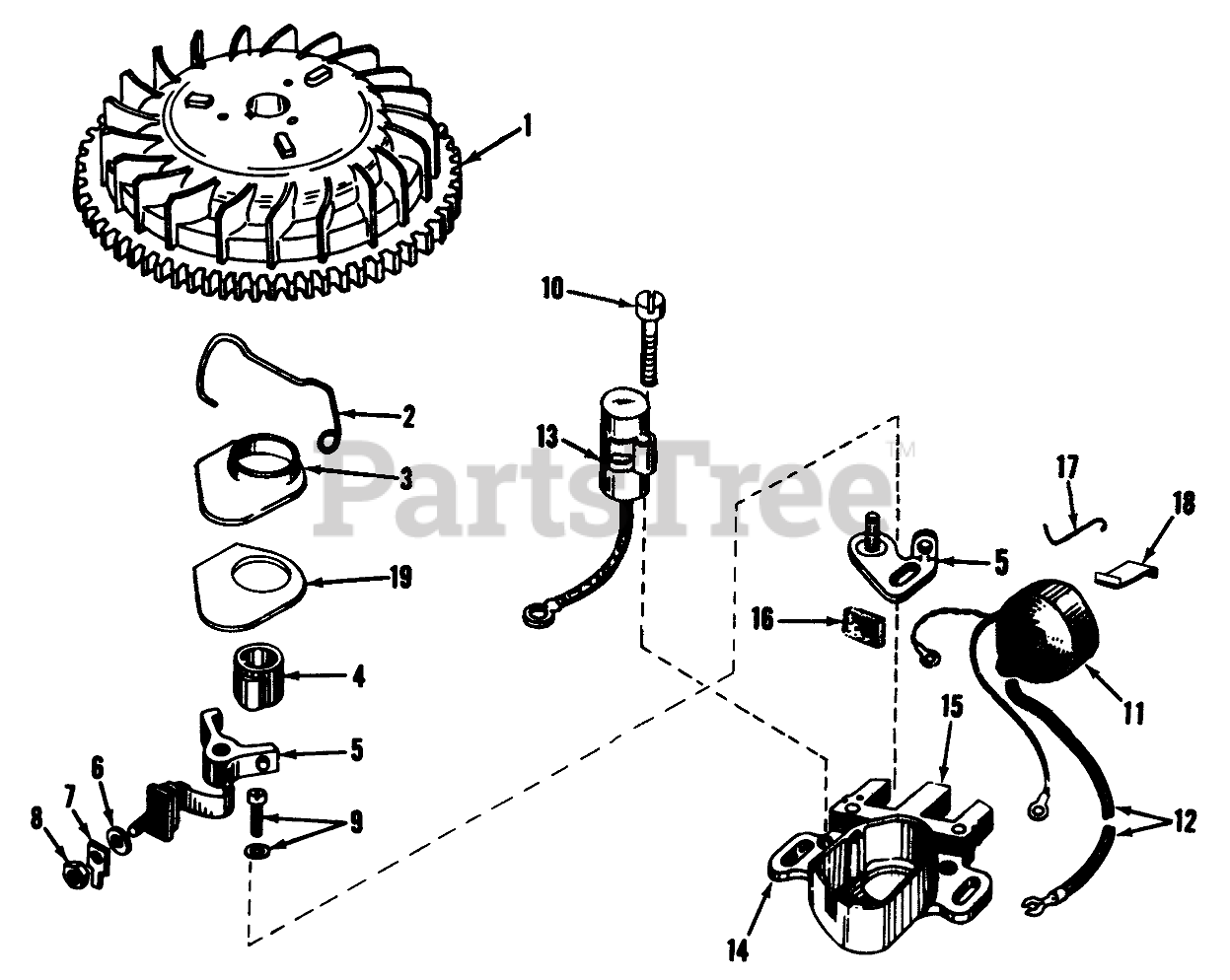

20440 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1974) MAGNETO NO. 610900 (MOWER MODEL NO. 20660) Parts Diagram

Walk-Behind Mower

MAGNETO NO. 610900 (MOWER MODEL NO. 20660) Parts Diagram

  • Title

1

Tecumseh 610899

Flywheel
(Superseded to 610899A)

$

$

Currently unavailable

2

Tecumseh 30551

Spring Breaker Box

$

$

Not available

3

Tecumseh 30550

Cover, Dust
(Superseded to 610947)

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 30992

Cam-Breaker

$

$

Not available

5

Toro 30547-A

Contact Assy., Breaker

$

$

Currently unavailable

6

Tecumseh 610385

Washer

$

$

Not available

7

Tecumseh 30843

Terminal
(Superseded to 33356)

$1.99

$

In Stock, only 4 left!

0

8

Tecumseh 610408

DECAL

$

$

Currently unavailable

9

Tecumseh 29181

Breaker Screw

$

$

Not available

10

Tecumseh 610593

Condenser Screw

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 30560A

Coil Assy. (Incl. #12)

$48.99

$

Usually ships in 3-12 days

0

12

Tecumseh 30554

Wire, Lead

$

$

Not available

13

Tecumseh 30548A

Condenser
(Superseded to 30548B)

$13.99

$

In Stock, Qty 6

0

14

Tecumseh 30545

Core & Plate

$

$

Not available

15

Tecumseh 30561A

Stator Assy. (Incl. #2, 3 & 5 thru 14 & 16 thru 19)
(Superseded to 30561B)

$

$

Not available

16

Tecumseh 30549

Felt,Cam Wiper

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 31311

Clip, Coil

$

$

Not available

18

Tecumseh 29629

Spring Coil Wedge

$

$

Not available

19

Tecumseh 32052

Gasket Dust Cover

$

$

Not available
