20440 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HANDLE ASSEMBLY MODEL NO. 20440 Parts Diagram

Walk-Behind Mower

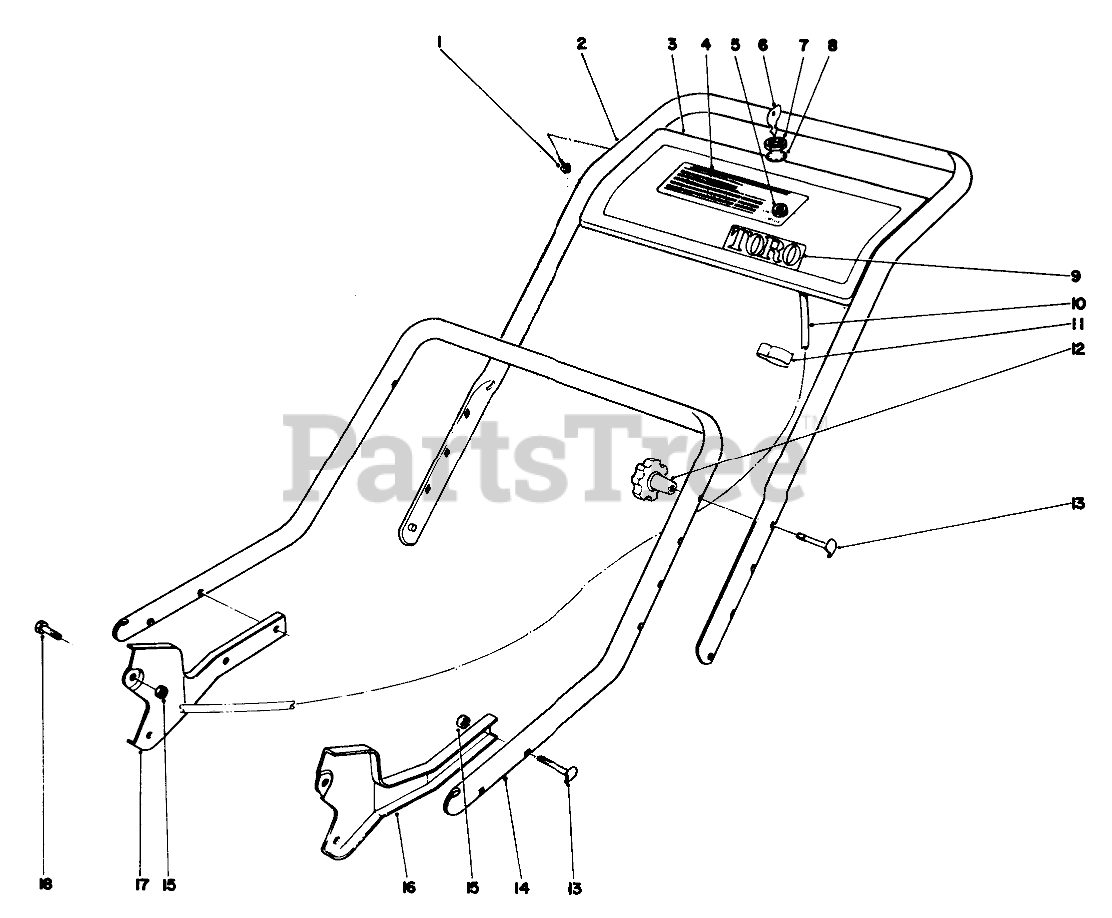

HANDLE ASSEMBLY MODEL NO. 20440 Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 23-0580

Upper Handle

$

$

Not available

3

Toro 23-0490

Control Plate

$

$

Currently unavailable

4

Toro 23-0760

Decal-Control Plate

$

$

Currently unavailable

5

Toro 23-0650

Switch
(Superseded to 29-5560)

$17.99

$

In Stock, only 2 left!

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 3-0800

Decal Toro

$

$

Currently unavailable

10

Toro 23-0820

Wire Harness

$

$

Not available

11

Toro 218-465

BOWDEN CLIP

$

$

Not available

12

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

13

Toro 6-6330

HANDLE SCREW

$

$

Not available

14

Toro 20-9820

Lower Handle

$

$

Currently unavailable

15

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

16

Toro 23-0430

Latch Handle L.H.

$

$

Currently unavailable

17

Toro 23-0420

Latch Handle R.H.
(Superseded to 25-2210)

$

$

Not available

18

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
