2044 (2690449) - Simplicity Champion 44" Zero-Turn Mower, 20hp Kohler 44" Mower Deck - Rear Roller & Linkage Parts Diagram

Champion 44" Zero-Turn Mower, 20hp Kohler

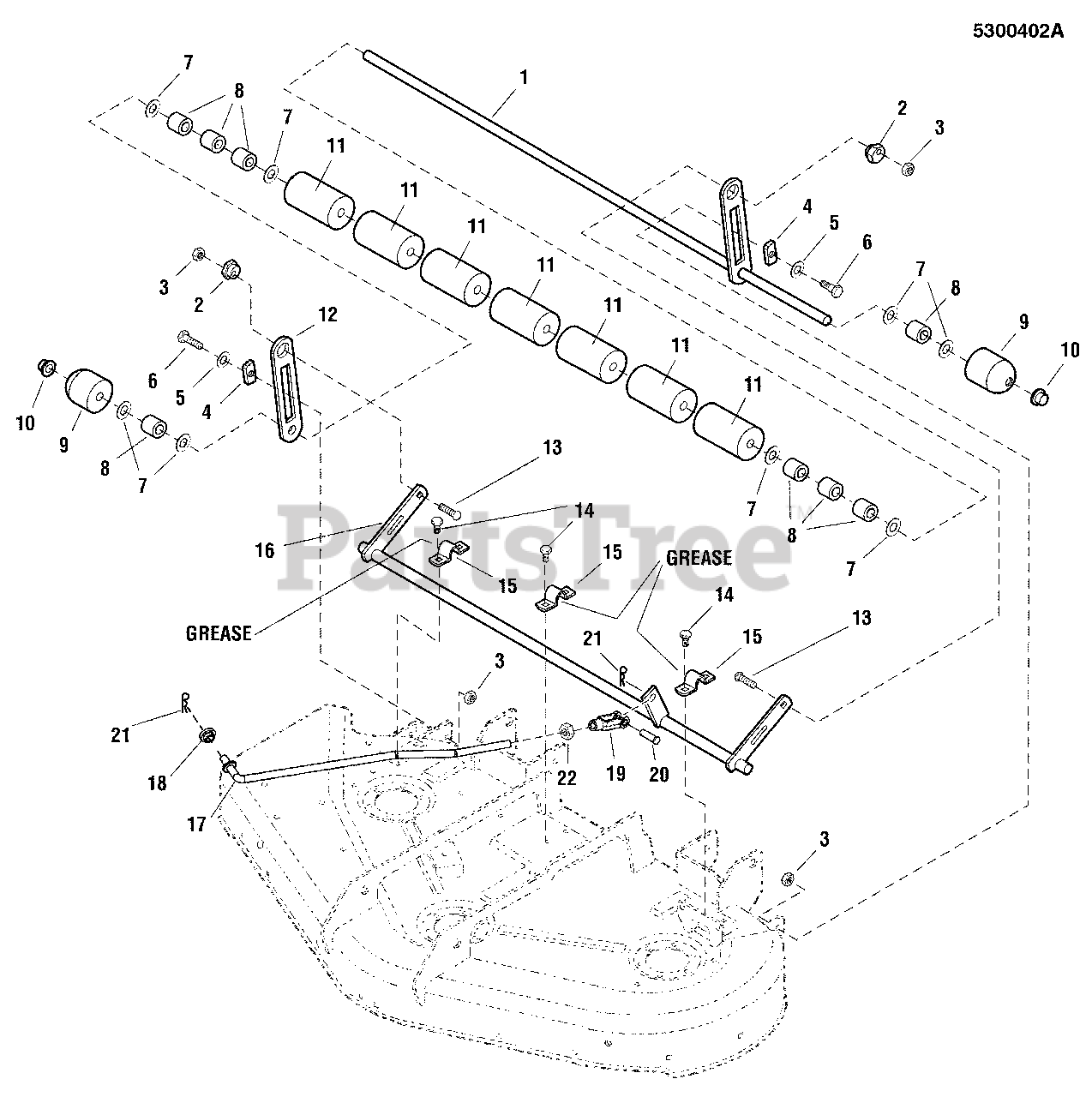

44" Mower Deck - Rear Roller & Linkage Parts Diagram

  • Title

1

Simplicity 5048676CSM

WELD,SHAFT,ROLLER,44

$164.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

3

Simplicity 2860681SM

NUT, HEX TOP LOCK SPIRAL FLNG, 3/8-16 YEL

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1677507SM

SLIDE .803 X 1.7

$6.99

$

In Stock, only 3 left!

0

5

Simplicity 1924361SM

WASHER-0500(0.53IDX1.25X.08THK)BLK
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

9

Simplicity 1717675SM

ROLLER,ROUNDED

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1960520SM

NUT-PUSH FOR .625 DIA STUD CAPPED BLK
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1668513SM

ROLLER

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 5049040CSM

BAR, ROLLER

$26.99

$

Usually ships in 2-12 days

0

13

Simplicity 1931352SM

BOLT-RD HD SH SQ NK 3/8-16X1.500 G5 BLK

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 1664847SM

CAPSCREW, HEX HEAD TAPTITE, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665374SM

STRAP-1.00WD 3.06LG .134THK ROLLER ECOAT
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 5048672CSM

WELD,SHAFT,DECK LIFT,44

$100.99

$

Usually ships in 2-12 days

0

17

Simplicity 5100275SM

ROD, DECK LIFT LINKAGE

$33.99

$

Usually ships in 2-12 days

0

18

Simplicity 5048258SM

BUSHING, DECK SUPPORT

$11.99

$

In Stock, only 2 left!

0

19

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, Qty 6

0

21

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 1 left!

0

22

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 19

0
