20439 WF - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

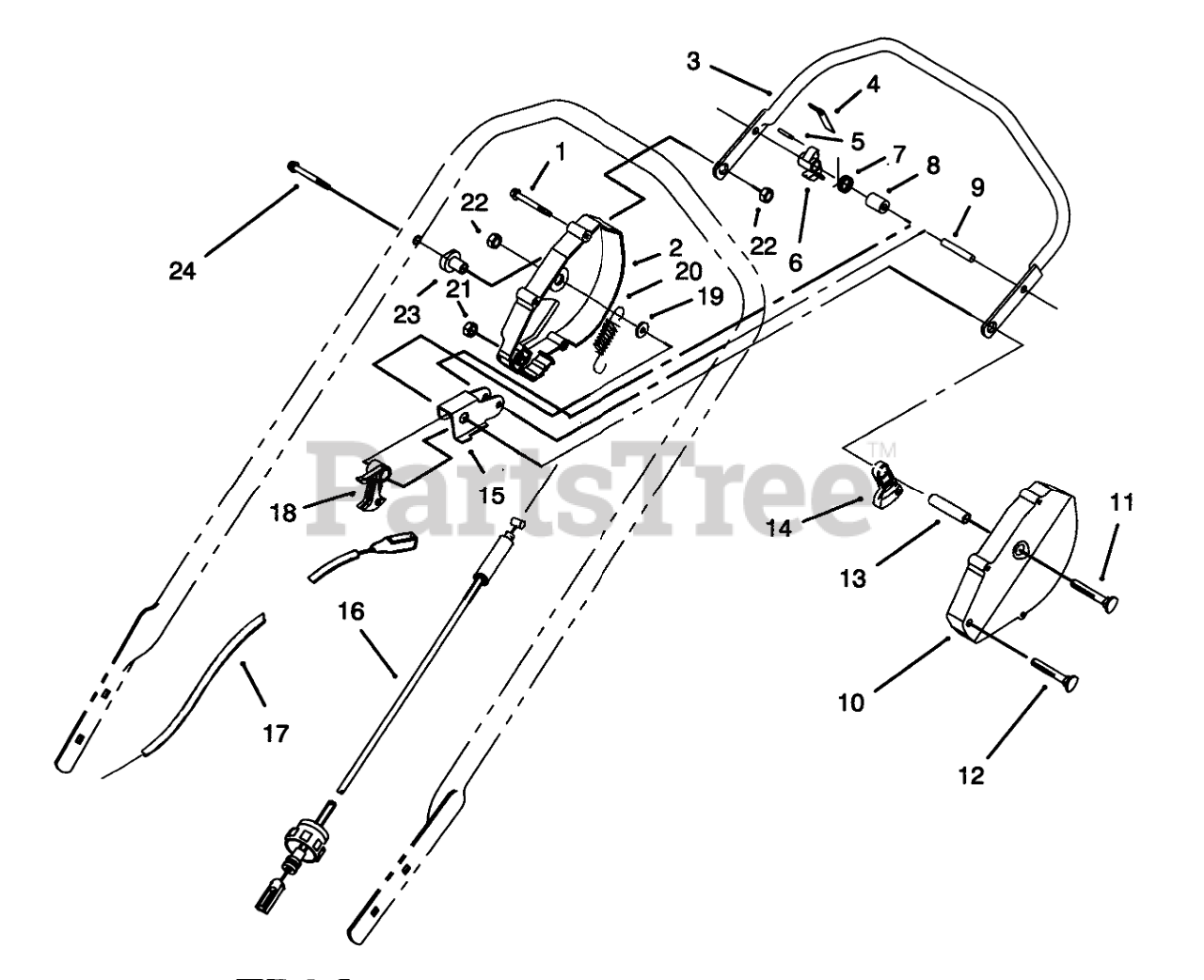

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 12-3429

Housing-Control R.H. (Incl Ref. #4 & 5)

$

$

Not available

3

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

4

Toro 52-7410

SPRING-LEAF

$

$

Not available

5

Toro 57-6290

PIN-INSERT

$4.49

$

Usually ships in 3-6 days

0

6

Toro 46-5530

HOOK-CONTROL

$

$

Not available

7

Toro 46-5510

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

8

Toro 46-5550

SPACER

$19.99

$

Usually ships in 3-6 days

0

9

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

10

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

11

Toro 92-2261

OBS MATERIAL EXCEPT FOR SERVICE

$

$

Not available

12

Toro 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

13

Toro 46-5590

TUBING-SPACER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 46-5520

LEVER-TRACTION

$

$

Not available

15

Toro 66-0180

ROCKER

$

$

Not available

16

Toro 46-5480

TRACTION CABLE

$106.99

$

Usually ships in 3-6 days

0

17

Toro 83-6600

CLUTCH CABLE

$

$

Not available

18

Toro 46-5540

LEVER-CABLE

$19.99

$

In Stock, only 3 left!

0

19

Toro 66-0170

WASHER-NYLON

$5.49

$

In Stock, Qty 6

0

20

Toro 66-0190

SPRING-DETENT

$31.99

$

Usually ships in 3-6 days

0

21

Toro 3296-75

NUT-LOCK NI

$2.49

$

Usually ships in 3-6 days

0

22

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

23

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

24

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0
