20439 WF - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE GTS-150 Parts Diagram

Walk-Behind Mower

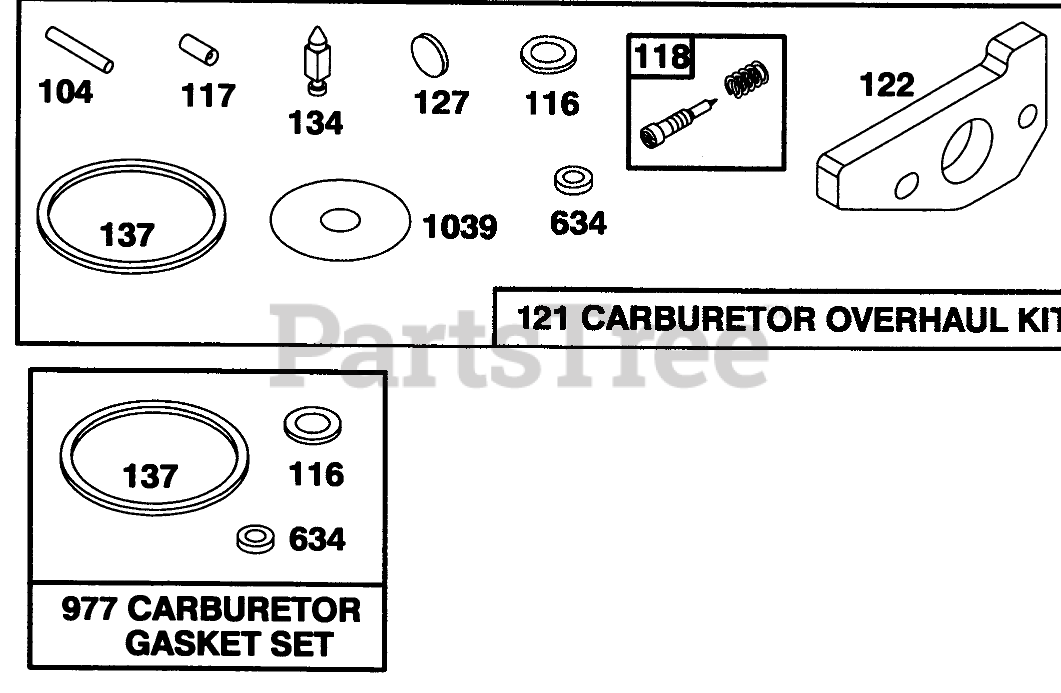

ENGINE GTS-150 Parts Diagram

  • Title
104

Toro 77-8180

FLOAT HINGE PIN

$

$

Not available

116

Toro 77-8210

SEALING GASKET

$6.99

$

In Stock, Qty 16

0

117

$

$

Not available

118

Toro 77-8230

VALVE KIT - NEEDLE

$19.99

$

Usually ships in 3-6 days

0

121

Toro 77-8920

CARBURATOR OVERHAUL KIT

$64.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

127

$2.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Float (Includes Seat)

$23.99

$

Usually ships in 3-6 days

0

137

Toro 77-8200

FLOAT BOWL GASKET

$8.49

$

In Stock, only 3 left!

0

634

Toro 77-8150

SEAL WASHER

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

1039

Toro 77-7250

FLOAT LIMITER

$

$

Not available
