20439 - Toro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

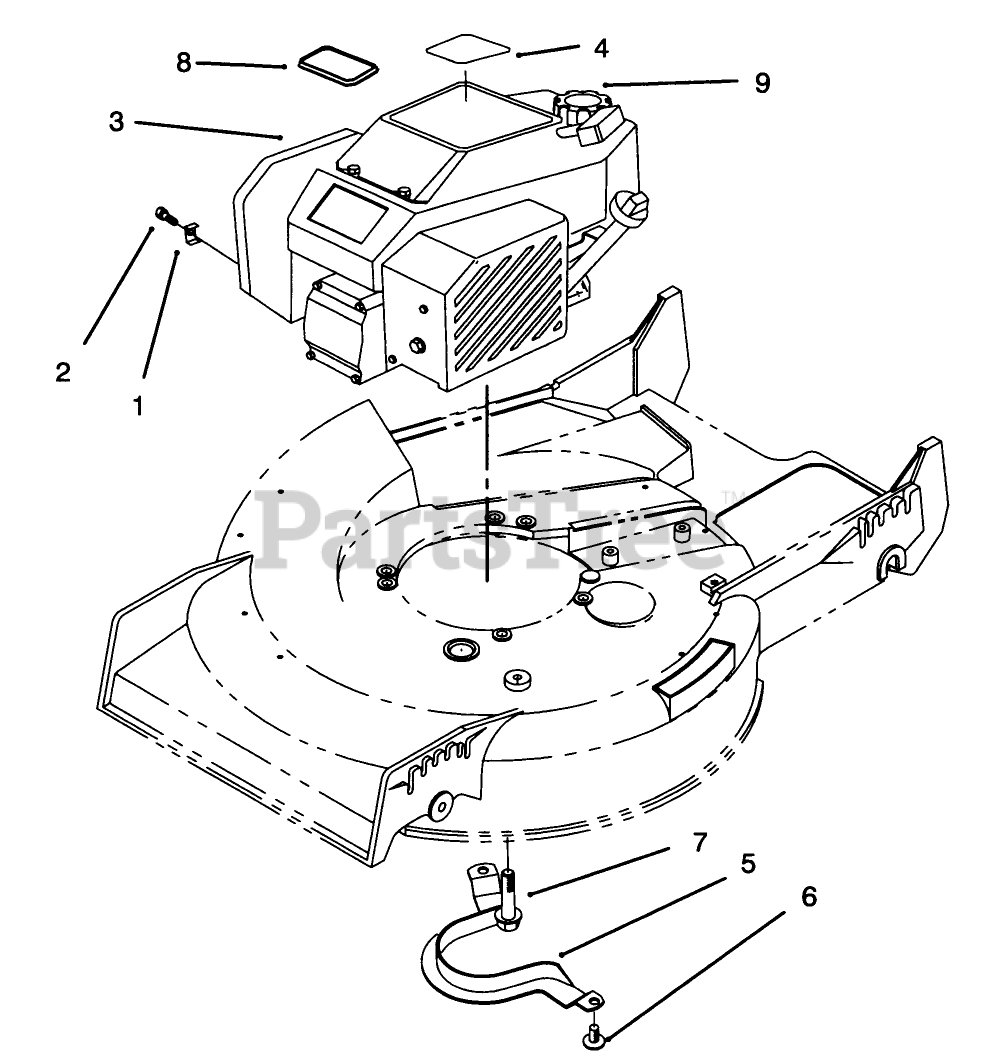

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

3

Toro 77-8991

Engine (Incl. Ref. #4 & 8)

$1478.99

$

Usually ships in 3-6 days

0

4

Toro 92-3147

DECAL - ENGINE

$

$

Not available

5

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

6

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0
