20438 WF - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

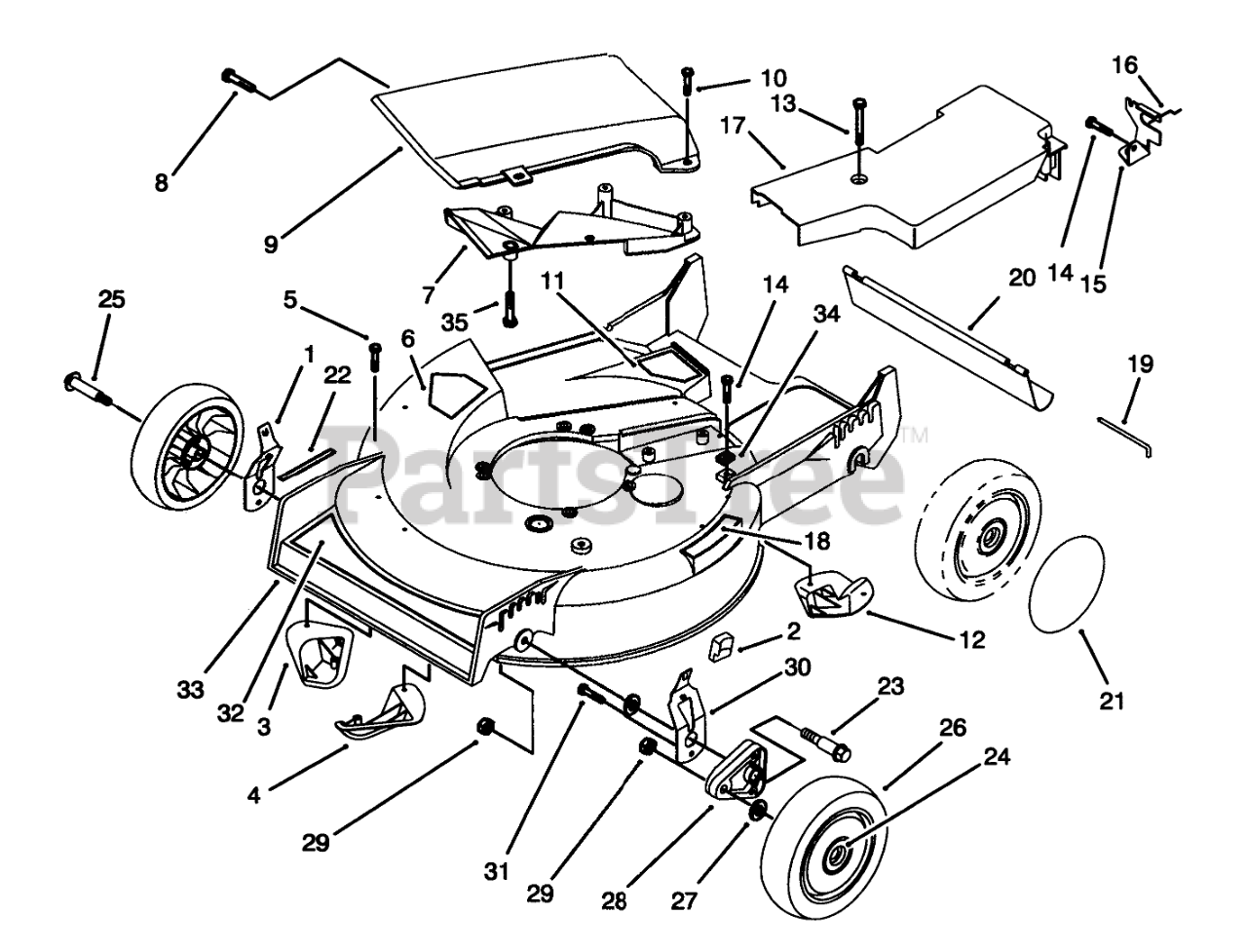

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 56-6270

DECAL-DANGER

$

$

Not available

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 14-9979

Cover Assembly (Incl. Ref. #7 & 35)
(Superseded to 100-2859)

$109.99

$

Usually ships in 3-6 days

0

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 92-1703

DECAL - DANGER

$

$

Not available

12

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

13

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

16

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

17

Toro 82-9910

BELT COVER

$

$

Not available

18

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

19

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

20

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

21

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0

22

Toro 92-2279

DECAL - HOC

$

$

Not available

23

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

24

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

25

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

26

Toro 14-9989

Wheel & Tire Assembly (Incl. Ref. #24)

$47.99

$

In Stock, only 2 left!

0

27

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

28

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, only 1 left!

0

29

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

30

Toro 71-0571

LH SPRING ARM ASM

$45.99

$

In Stock, only 1 left!

0

31

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

32

Toro 92-2281

DECAL - DECK

$

$

Not available

33

Toro 16-1589

Housing Assembly (Incl. Ref.#1,3-6,8,11,12,14,22,pg.1)(Incl. Ref.#5 pg. 3)(Incl. Ref. #30-31 pg.4)

$1078.99

$

Usually ships in 3-6 days

0

34

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

35

Screw-Plastite

$

$

Not available
