20438 WF - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE GTS 150 Parts Diagram

Walk-Behind Mower

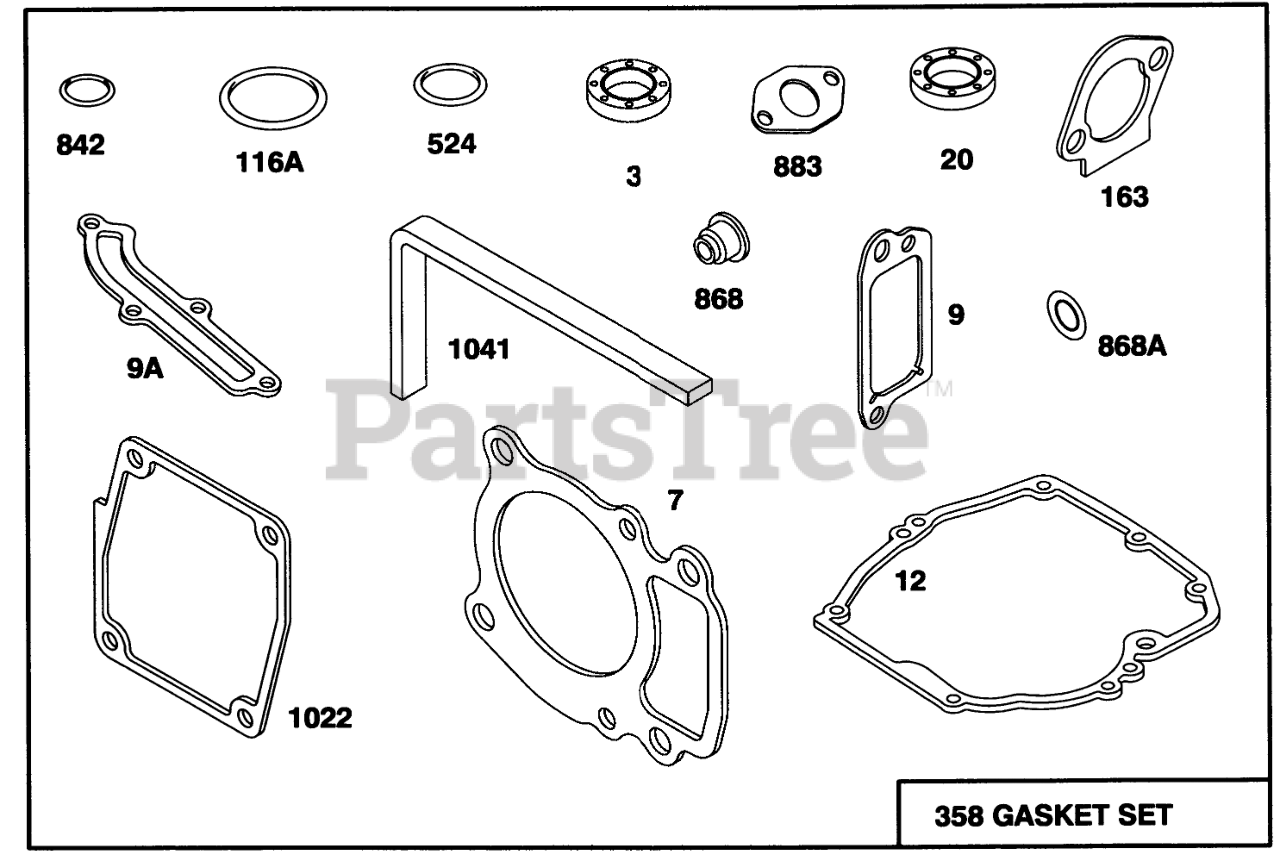

ENGINE GTS 150 Parts Diagram

  • Title
3

Toro 77-9060

SEAL - OIL

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

$29.99

$

In Stock, only 1 left!

0

9

Toro 77-7440

Gasket-Breather
(Superseded to 99-0913)

$4.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

$12.99

$

Usually ships in 3-6 days

0

12

Toro 77-7550

ENGINE BASE GASKET

$23.99

$

In Stock, only 1 left!

0

20

Toro 77-7570

SEAL-OIL

$23.99

$

Usually ships in 3-6 days

0

116A

Toro 77-7660

O RING SEAL

$13.99

$

Usually ships in 3-6 days

0

163

Toro 77-7960

AIR CLEANER GASKET

$21.99

$

Usually ships in 3-6 days

0

524

Toro 77-7270

O-RING

$10.99

$

Usually ships in 3-6 days

0

842

Toro 77-7300

O-RING

$4.99

$

In Stock, Qty 7

0

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

$

$

Not available

1022

Toro 77-7320

ROCKER COVER GASKET

$20.99

$

In Stock, only 2 left!

0

1041

Toro 77-8590

SEAL - FOAM

$

$

Not available
