20438 WF - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE GTS-150 Parts Diagram

Walk-Behind Mower

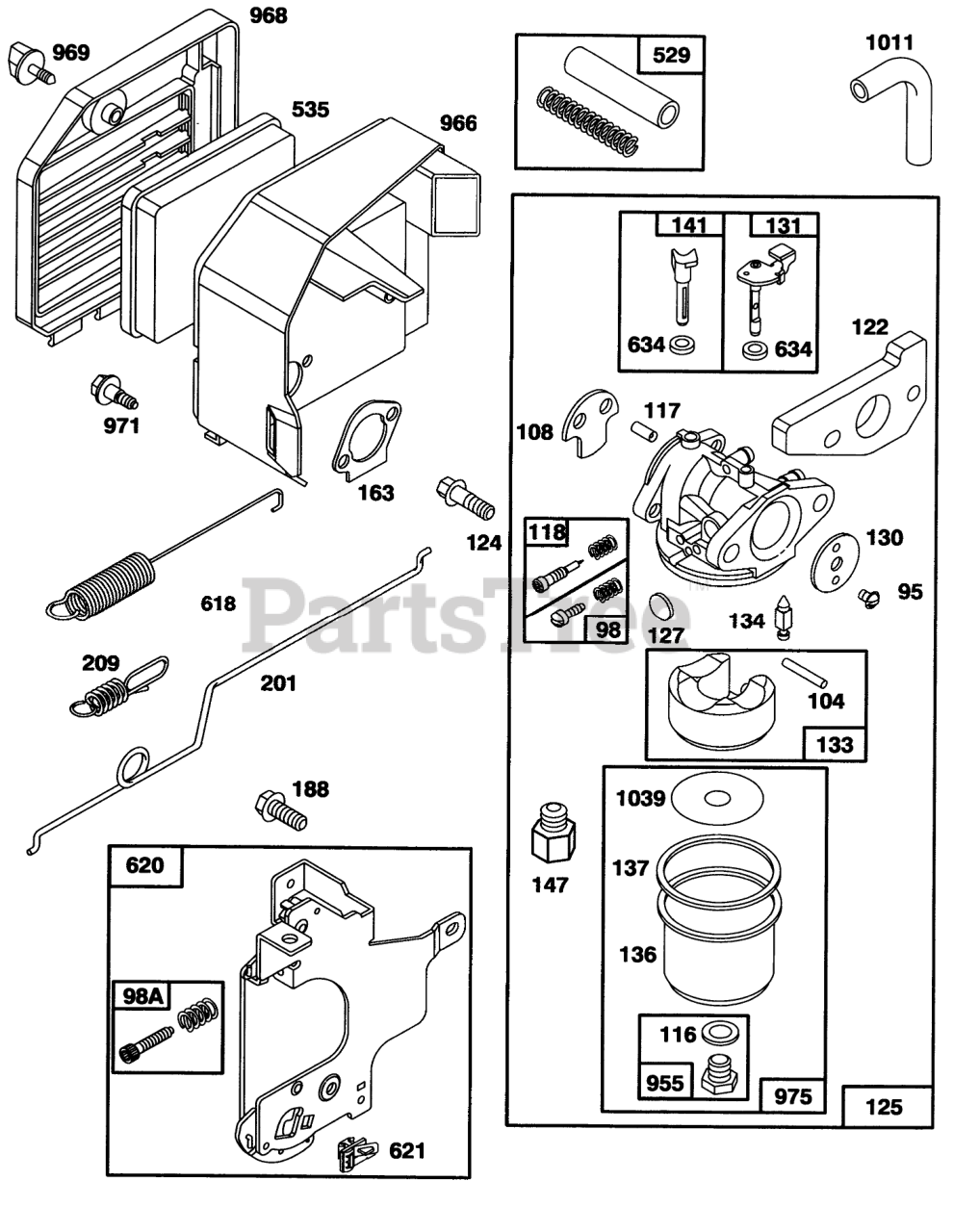

ENGINE GTS-150 Parts Diagram

  • Title
95

Toro 77-8090

SCREW - ROUND HEAD

$

$

Not available

98

Toro 77-8240

IDLE ADJUSTING SCREW

$

$

Not available

98A

Toro 77-8020

SPEED ADJUST. SCREW ASM

$

$

Not available

104

Toro 77-8180

FLOAT HINGE PIN

Note: Included in Carburetor Overhaul Kit

$

$

Not available

108

Toro 77-8070

CHOKE VALVE

$

$

Not available

116

Toro 77-8210

SEALING GASKET

Note: Included in Carburetor Overhaul Kit

$6.99

$

In Stock, Qty 16

0

117

Toro 77-8060

JET

Note: Included in Carburetor Overhaul Kit

$

$

Not available

118

Toro 77-8230

VALVE KIT - NEEDLE

Note: Included in Carburetor Overhaul Kit

$19.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit

$31.99

$

Usually ships in 3-6 days

0

124

Toro 77-7970

HEX HEAD SCREW

$5.49

$

Usually ships in 3-6 days

0

125

Toro 77-8050

CARBURETOR ASSEMBLY

$

$

Not available

127

Toro 77-8100

PLUG

Note: Included in Carburetor Overhaul Kit

$2.99

$

In Stock, only 1 left!

0

130

Toro 77-8080

THROTTLE VALVE

$

$

Not available

131

Toro 77-8160

THROTTLE SHAFT

$

$

Not available

133

Toro 77-8170

FLOAT-CARBURETOR

$32.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Float (Includes Seat)

Note: Included in Carburetor Overhaul Kit

$23.99

$

Usually ships in 3-6 days

0

136

Toro 77-7240

FLOAT BOWL

$

$

Not available

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carburetor Overhaul Kit

$8.49

$

In Stock, only 3 left!

0

141

Toro 77-8130

CHOKE SHAFT

$

$

Not available

147

Toro 77-8120

JET ADAPTER

$20.99

$

Usually ships in 3-6 days

0

163

Toro 77-7960

AIR CLEANER GASKET

Note: Included in Gash at Set

$21.99

$

Usually ships in 3-6 days

0

188

Toro 77-7450

SCREW - SEM

$

$

Not available

201

Toro 77-7980

GOVERNOR LINK

$28.99

$

Usually ships in 3-6 days

0

209

Toro 77-7990

GOVERNOR SPRING

$16.99

$

Usually ships in 3-6 days

0

529

Toro 77-8030

BREATHER TUBE

$

$

Not available

535

Toro 77-7950

FILTER ELEMENT

$20.99

$

In Stock, Qty 5

0

618

Toro 77-8140

RETURN SPRING

$10.99

$

Usually ships in 3-6 days

0

620

Toro 77-8000

CARBURETOR BRACKET

$

$

Not available

621

Toro 77-8010

STOP SWITCH

$

$

Not available

634

Toro 77-8150

SEAL WASHER

Note: Included in Carburetor Overhaul Kit

$

$

Not available

955

Toro 77-8220

HEX HEAD SCREW

$

$

Not available

966

Toro 77-7940

AIR CLEANER BASE

$74.99

$

In Stock, only 1 left!

0

968

Toro 77-7040

AIR CLEANER COVER

$

$

Not available

969

Toro 77-7920

AIR CLEANER SCREW

$24.99

$

Usually ships in 3-6 days

0

971

Toro 77-7930

AIR CLEANER SCREW

$8.99

$

Usually ships in 3-6 days

0

975

Toro 77-8190

CARBURETOR BOWL ASM

$

$

Not available

1011

Toro 77-8040

VENT TUBE

$22.99

$

Usually ships in 3-6 days

0

1039

Toro 77-7250

FLOAT LIMITER

Note: Included in Carburetor Overhaul Kit

$

$

Not available
