20438 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HANDLE ASSEMBLY Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

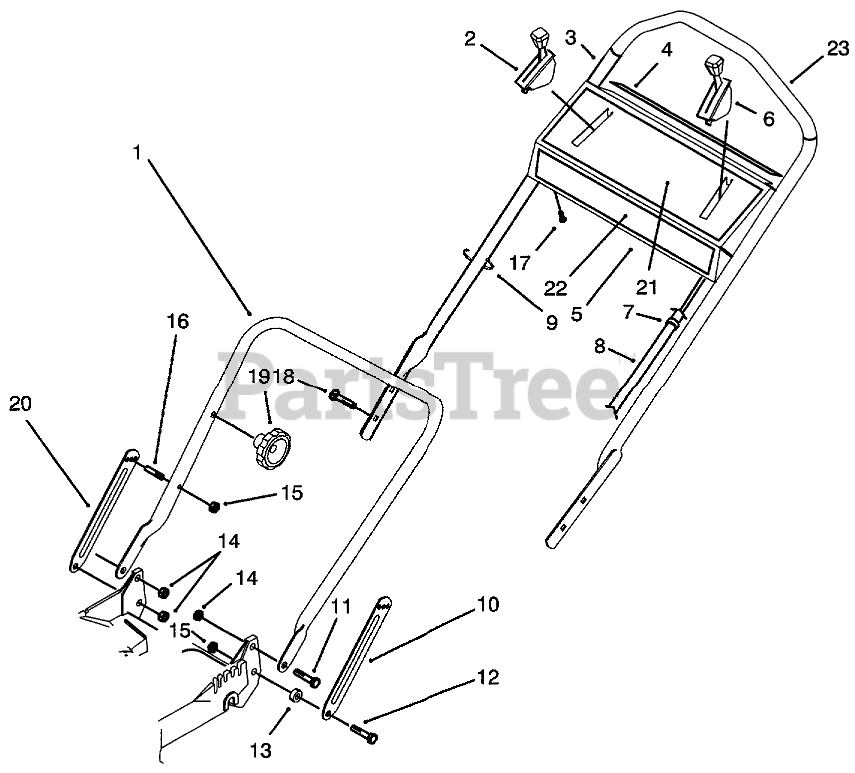

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5531-05

LOWER HANDLE ASM
(Superseded to 82-5530)

$

$

Not available

2

Toro 76-2712

CONTROL-SPEED, GROUND

$49.99

$

In Stock, only 4 left!

0

3

Toro 92-2277

Handle-Upper
(Superseded to 94-4922)

$175.99

$

Usually ships in 3-6 days

0

4

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

5

Toro 16-1619

Panel-Control (Incl. Ref. #4, 21, & 22)

$

$

Not available

6

Toro 71-8391

THROTTLE CONTROL

$111.99

$

Usually ships in 3-6 days

0

7

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

8

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

14

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

17

Toro 32144-115

10-16X1/2 SHWH SCREW
(Superseded to 92-9665)

$6.99

$

In Stock, Qty 20+

0

18

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

19

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

20

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

21

Toro 92-2285

DECAL - INSTRUCTION

$

$

Not available

22

Toro 92-3146

DECAL - FRT PANEL

$

$

Not available

23

Toro 92-4086

Grip-Foam

$

$

Not available
