20438 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE GTS-150 Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

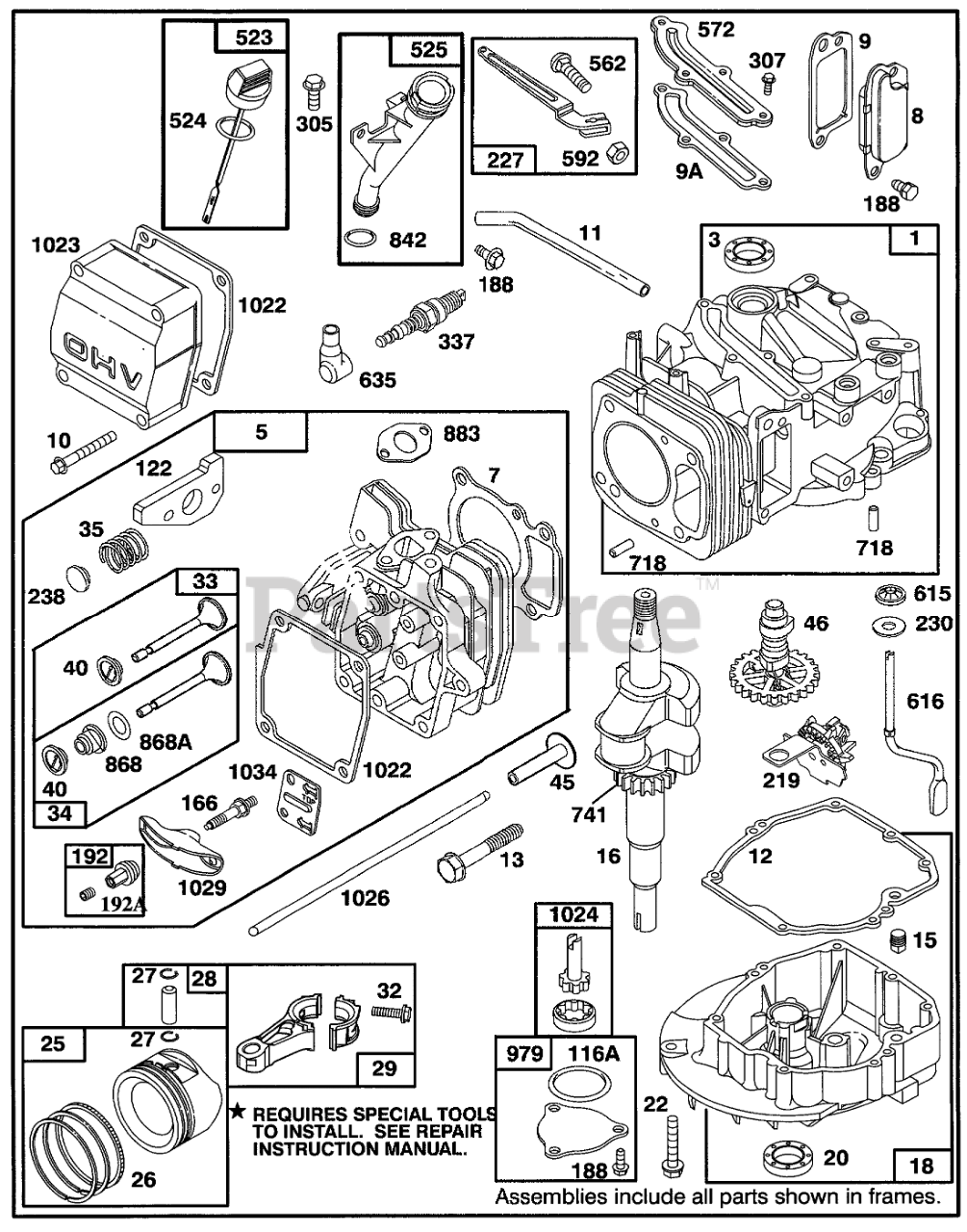

ENGINE GTS-150 Parts Diagram

  • Title

1

Toro 77-7590

CYLINDER ASSEMBLY

$771.99

$

Usually ships in 3-6 days

0

3

Toro 77-9060

SEAL - OIL

Note: Included in Gasket Set

$

$

Not available

5

Toro 77-7730

CYLINDER HEAD

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

Note: Included in Gasket Set

$29.99

$

In Stock, only 1 left!

0

8

Toro 77-9260

BREATHER ASM

$

$

Not available

9

Toro 77-9250

BREATHER GASKET
(Superseded to 99-0913)

Note: Included in Gasket Set

$4.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

Note: Included in Gasket Set

$12.99

$

Usually ships in 3-6 days

0

10

Toro 77-7360

HEX HEAD SCREW

$

$

Not available

11

Toro 77-7350

BREATHER TUBE

$

$

Not available

12

Toro 77-7550

ENGINE BASE GASKET

Note: Included in Gasket Set

$23.99

$

Usually ships in 3-6 days

0

13

Toro 77-7630

CYLINDER HEAD SCREW

$

$

Not available

15

Toro 77-9240

PIPE PLUG

$

$

Not available

16

Toro 77-7510

CRANKSHAFT

Note: Note: Order Part No 77-7540 For Timing Gear Key

$

$

Not available

18

Toro 77-7560

ENGINE SUMP

$

$

Not available

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set

$23.99

$

In Stock, only 2 left!

0

22

Toro 77-9070

SCREW - ENGINE BASE
(Superseded to 99-0956)

Note: Note: Order Prt No.77-9080 For Hole Nearest Breather

$

$

Not available

25

Toro 77-7690

STD PISTON ASSEMBLY

$182.99

$

In Stock, only 1 left!

0

26

Toro 77-7700

STD RING SET

$

$

Not available

27

Toro 77-7710

PISTON PIN LOCK

$

$

Not available

28

Toro 77-7720

Pin Assy-Piston
(Superseded to 77-9340)

$

$

Not available

29

Toro 77-7670

CONNECTING ROD

$

$

Not available

32

Toro 77-7680

Connecting Rod
(Superseded to 99-0963)

$

$

Not available

33

Toro 77-7860

EXHAUST VALVE

$

$

Not available

34

Toro 77-7880

INTAKE VALVE

$

$

Not available

35

Toro 77-7810

VALVE SPRING

$

$

Not available

40

Toro 77-7870

SPRING RETAINER

$

$

Not available

45

Toro 77-7610

VALVE TAPPET

$

$

Not available

46

Toro 77-7490

CAM GEAR

$

$

Not available

116A

Toro 77-7660

O RING SEAL

Note: Included in Gasket Set

$13.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carburetor Overhaul Kit

$31.99

$

Usually ships in 3-6 days

0

166

Toro 77-7780

ROCKER ARM STUD

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

192

Toro 77-7910

NUT - HEX SPECIAL

$

$

Not available

192A

Toro 77-9090

Screw-Set
(Superseded to 77-7910)

$

$

Not available

219

Toro 77-7500

GOVERNOR/OIL SLINGER

$62.99

$

Usually ships in 3-6 days

0

227

Toro 77-7370

GOVERNOR LEVER ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

230

Toro 77-7470

WASHER

$

$

Not available

238

Toro 77-7800

VALVE CAP

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

307

Toro 77-7420

SCREW - SEM

$

$

Not available

337

Toro 77-7330

PLUG-SPARK

$3.99

$

Usually ships in 3-6 days

0

523

Toro 77-7260

DIPSTICK-OIL

$

$

Not available

524

Toro 77-7270

O-RING

Note: Included in Gasket Set

$10.99

$

Usually ships in 3-6 days

0

525

Toro 77-7290

OIL FILLER TUBE

$

$

Not available

562

Toro 77-7380

GOVERNOR LEVER BOLT

$

$

Not available

572

Toro 77-7400

BAFFLE - CYCLINDER
(Superseded to 99-0922)

$

$

Not available

592

Toro 77-7390

HEX NUT

$

$

Not available

615

Toro 77-7480

FASTENER
(Superseded to 99-0925)

$

$

Not available

616

Toro 77-7460

GOVERNOR CRANK
(Superseded to 99-0926)

$

$

Not available

635

Toro 77-7340

SPARK PLUG ELBOW

$

$

Not available

718

Toro 77-7600

DOWEL - SLEEVE

$

$

Not available

741

Toro 77-7530

TIMING GEAR

$

$

Not available

842

Toro 77-7300

O-RING

Note: Included in Gasket Set

$4.99

$

In Stock, Qty 20+

0

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

Note: Included in Gasket Set

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set

$

$

Not available

979

Toro 77-7650

OIL PUMP COVER

$

$

Not available

1022

Toro 77-7320

ROCKER COVER GASKET

Note: Included in Gasket Set

$20.99

$

In Stock, only 2 left!

0

1023

Toro 77-7060

Cover-Valve
(Superseded to 77-9320)

$

$

Not available

1024

Toro 77-7640

OIL PUMP

$51.99

$

Usually ships in 3-6 days

0

1026

Toro 77-7620

PUSH ROD

$

$

Not available

1029

Toro 77-7790

ROCKER ARM

$37.99

$

In Stock, only 1 left!

0

1034

Toro 77-7770

PUSH ROD GUIDE

$

$

Not available

Toro 77-9280

Short Block (Incl. Ref. #1,7, 9, 9A, 16, 18, 25, 28, 29, 45, 46, 122, 219, 230, 615, 616, 883, 979, 1022, & 1024 pg. 10) (Incl. Ref. #163 pg.12)

Note: Included in Gasket Set

$1086.99

$

In Stock, only 1 left!

0
