20437 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

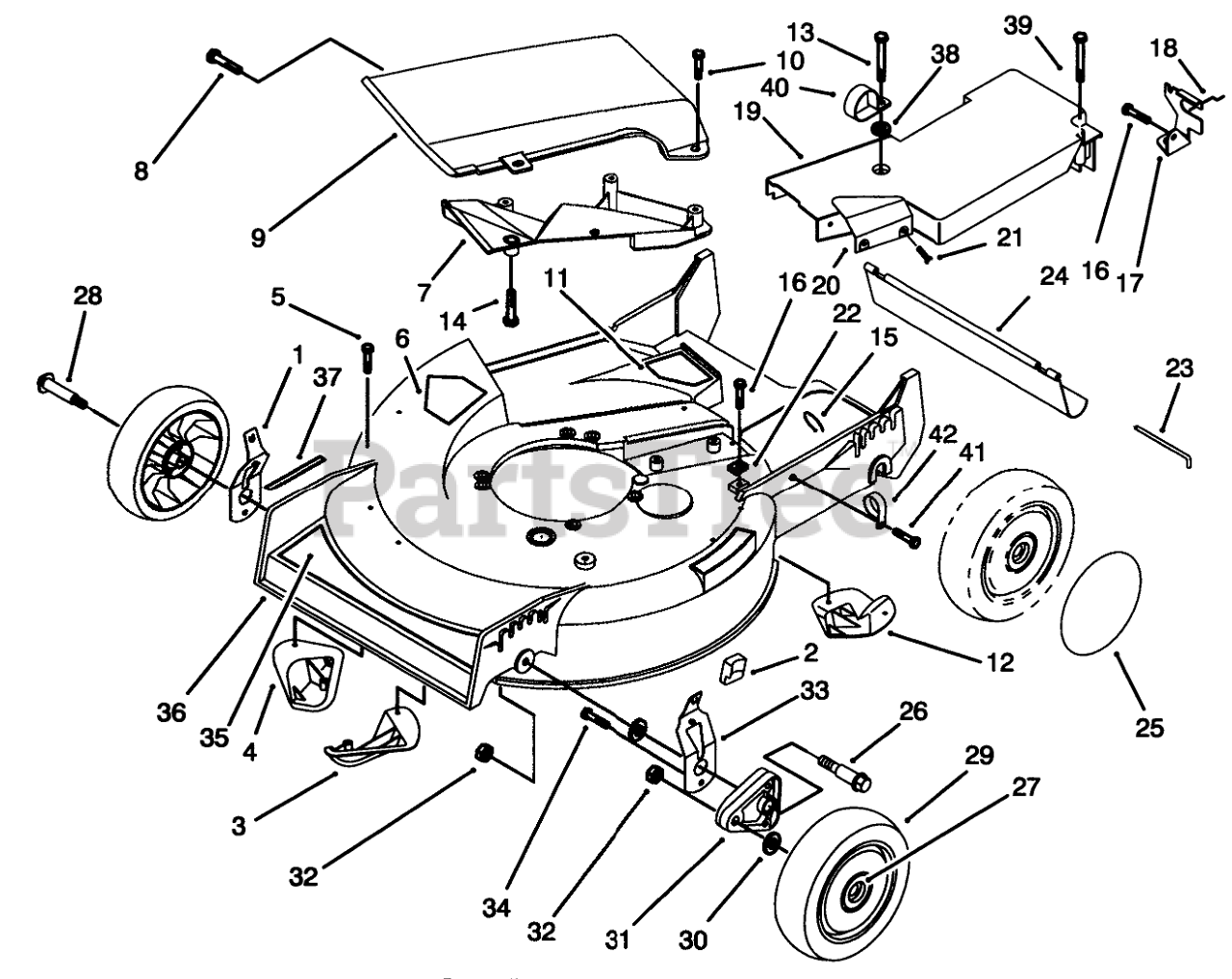

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

9

Toro 14-4069

Cover Assembly (Incl. Ref. #7 & 14)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

13

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

18

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

19

Toro 52-7406

Belt Cover Assembly (Incl. Ref. #20 & 21)

$

$

Not available

20

Toro 77-0280

HEAT SHIELD

$

$

Not available

21

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

22

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

23

Toro 33-3208

ROD-SHIELD

$16.99

$

In Stock, Qty 12

0

24

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

25

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0

26

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 15

0

27

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

28

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

29

Toro 14-9989

Wheel & Tire Assembly ,(Incl. Ref. #27)

$47.99

$

In Stock, only 2 left!

0

30

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

31

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, Qty 6

0

32

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

33

Toro 71-0571

LH SPRING ARM ASM

$45.99

$

In Stock, only 1 left!

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

Toro 92-2281

DECAL - DECK

$

$

Not available

36

Toro 16-1599

Housing Assembly (Incl.Ref.#3,4,5,6,11, 12, & 37 Pg.1-2) (Incl. Ref. # 6-7 Pg.3)

$994.99

$

Usually ships in 3-6 days

0

37

Toro 92-2279

DECAL - HOC

$

$

Not available

38

Toro 3-5792

WASHER

$6.99

$

Usually ships in 3-6 days

0

39

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 12

0

40

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

41

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

42

Toro 2412-83

CLAMP-CABLE

$

$

Not available
