20437 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 049000001 - 049999999) (1994) ENGINE BRIGGS & STRATTON MODEL 124707-3185-01 Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

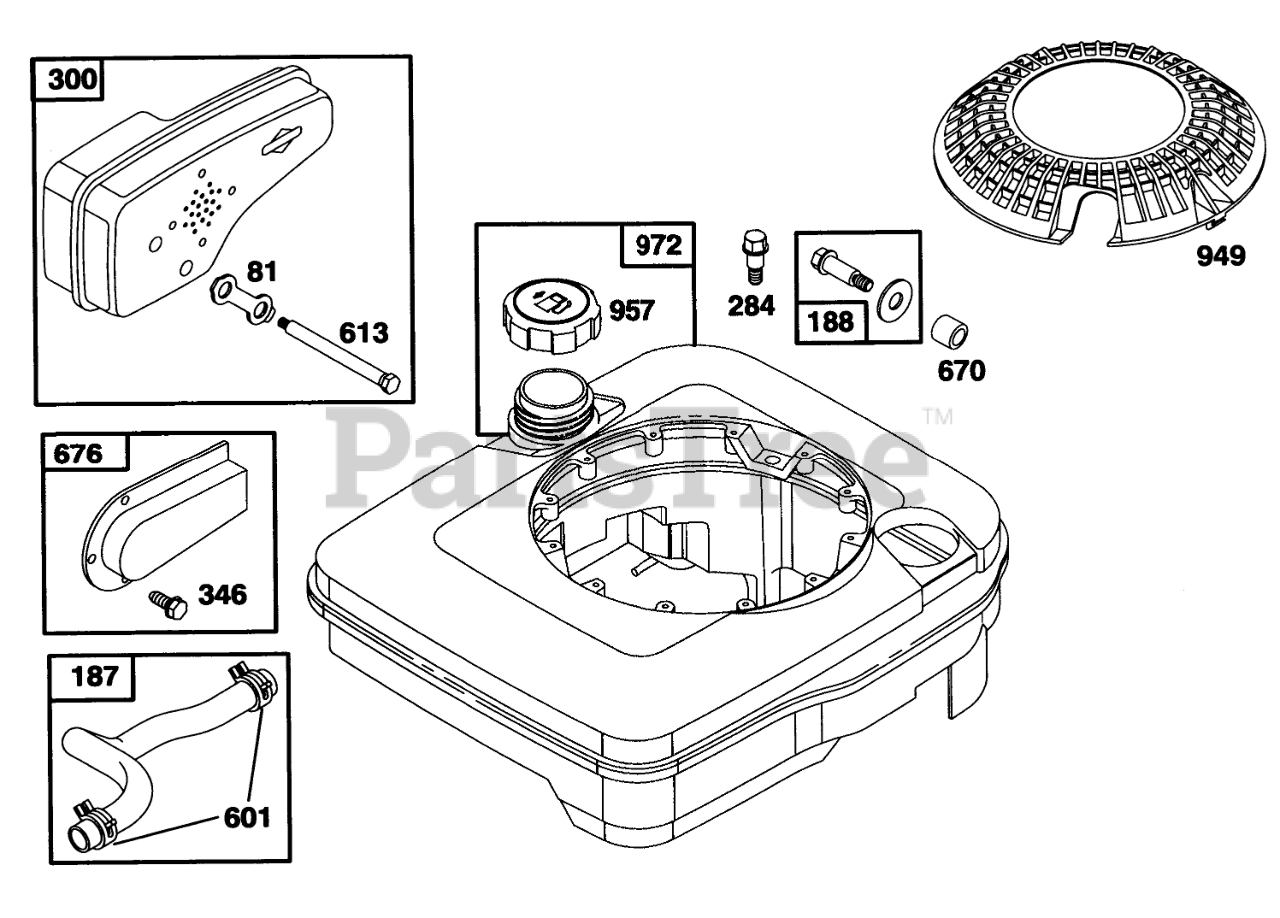

ENGINE BRIGGS & STRATTON MODEL 124707-3185-01 Parts Diagram

  • Title

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

In Stock, Qty 6

0

187

Briggs & Stratton 492791

Hose-Fuel
(Superseded to 791873)

$15.99

$

In Stock, Qty 7

0

188

Briggs & Stratton 398540

Screw-Tank Mounting (Includes Washer)
(Superseded to 692311)

$7.49

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94511

Screw-Hex.
(Superseded to 690940)

$3.99

$

In Stock, Qty 11

0

300

Briggs & Stratton 490547

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93807

Clamp-Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

613

Briggs & Stratton 94231

Screw-Shoulder
(Superseded to 691340)

$4.99

$

In Stock, Qty 7

0

670

Briggs & Stratton 280512

Spacer-FueITank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

676

Briggs & Stratton 493871

Deflector-Muffler

$14.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 281136

Guard-Finger
(Superseded to 691919)

$28.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 397974

Cap-Fuel
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

972

Briggs & Stratton 494358

Tank Assembly-Fuel
(Superseded to 497218)

$

$

Not available
