20435 - Toro 21" Recycler II Super Pro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

21" Recycler II Super Pro Walk-Behind Mower

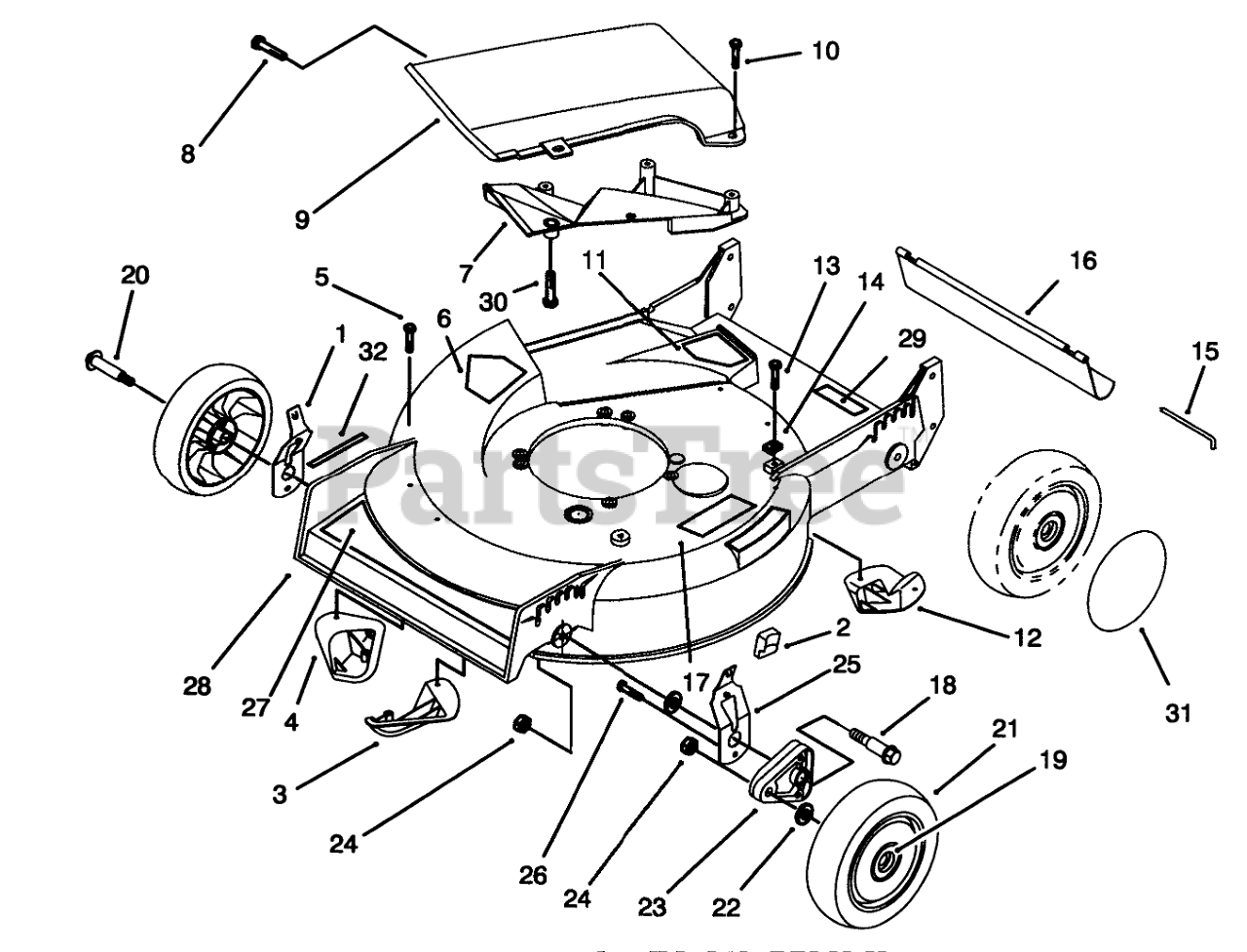

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 71-0561

RH SPRING ARM ASM

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 14-4069

Cover Assembly (Incl. Ref #7 & 19)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1660

KICKER-REAR

$

$

Not available

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

15

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

17

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

18

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

20

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

21

Toro 14-9989

Wheel & Tire Assembly (Incl. Ref. #19)

$47.99

$

In Stock, only 2 left!

0

22

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

23

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, only 1 left!

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 71-0571

LH SPRING ARM ASM

$45.99

$

In Stock, only 1 left!

0

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Toro 92-2281

DECAL - DECK

$

$

Not available

28

Toro 16-1579

Housing Assembly (Incl. Ref. #3-6, 11, 12, 17, 29, & 32)

$1078.99

$

Usually ships in 3-6 days

0

29

Toro 92-1779

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

30

Screw-Pan Hd.

$

$

Not available

31

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0

32

Toro 92-2279

DECAL - HOC

$

$

Not available
