20434 - Toro Recycler II Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HOUSING ASSEMBLY Parts Diagram

Recycler II Walk-Behind Mower

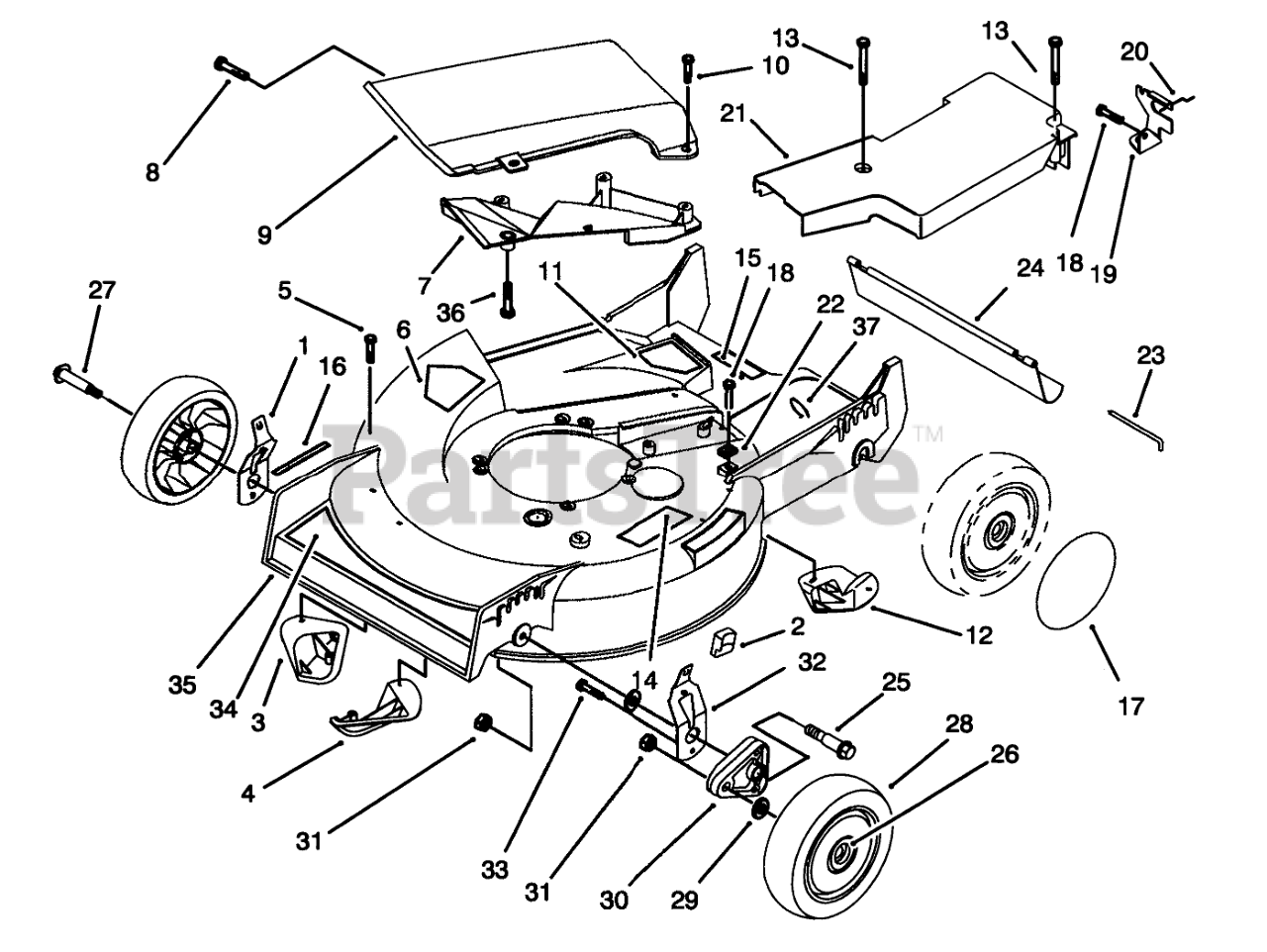

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 14-4069

Recycler Cover Assembly (Incl. Ref. #7 & 36)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

13

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

14

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

15

Toro 92-1779

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

16

Toro 92-2279

DECAL - HOC

$

$

Not available

17

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

20

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

21

Toro 52-7406

BELT COVER ASM

$

$

Not available

22

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

23

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

24

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

25

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

26

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

27

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

28

Toro 11-9509

Wheel & Tire Assembly (Incl Ref. #26)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

30

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

31

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

32

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

33

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

34

Toro 92-2283

DECAL - DECK

$

$

Not available

35

Toro 16-1599

Housing (Incl. Ref. #3-6, 11, 12, & 14-16 pg. 1) (Incl. Ref. #6, & 7 pg.3)

$994.99

$

Usually ships in 3-6 days

0

36

Screw-Plastite

$

$

Not available

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
