20434 - Toro Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

Recycler II Walk-Behind Mower

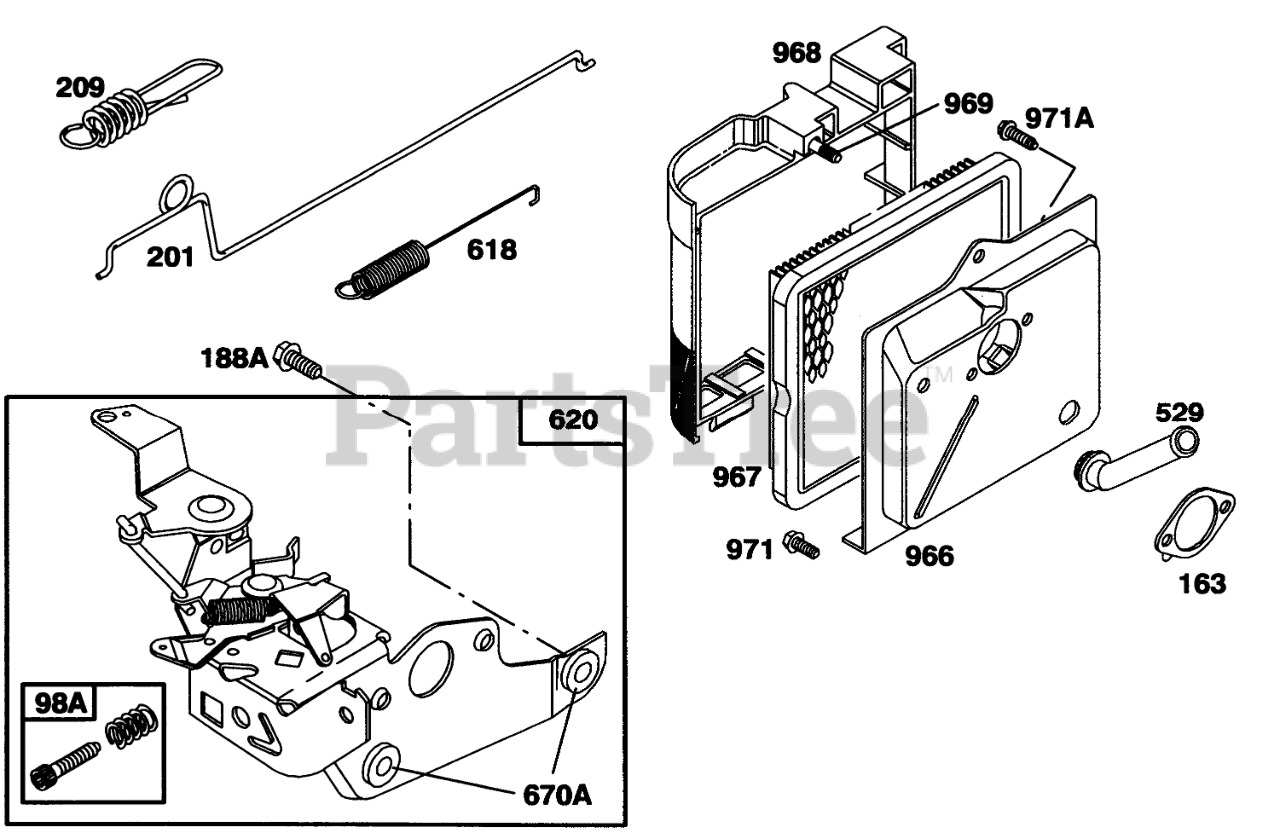

ENGINE BRIGGS & STRATTON MODEL 122702-3171-01 Parts Diagram

  • Title

98A

Briggs & Stratton 493280

Screw Assy.

$8.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272296

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 493263.

$4.99

$

In Stock, only 1 left!

0

188A

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, Qty 5

0

201

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 262661

Spring-Govemor

$

$

Not available

529

Briggs & Stratton 280943

Grommet-Breather

$8.49

$

In Stock, only 1 left!

0

618

Briggs & Stratton 262749

Spring-Choke
(Superseded to 690354)

$7.49

$

In Stock, only 1 left!

0

620

Briggs & Stratton 493894

Bracket Assembly

$81.99

$

In Stock, only 1 left!

0

670A

Briggs & Stratton 493823

Spacer

$6.49

$

In Stock, only 1 left!

0

966

Briggs & Stratton 492363

Base-Air Cleaner

$

$

Not available

967

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 280937

Cover-Air Cleaner
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

Screw-Cover Mt.
(Superseded to 690670)

$5.99

$

In Stock, Qty 5

0

971

Briggs & Stratton 94269

Screw-Air Cleaner
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

971A

Briggs & Stratton 94121

Screw-Air Cleaner
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0
