20432 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) REAR AXLE & WHEEL ASSEMBLY Parts Diagram

Walk-Behind Mower

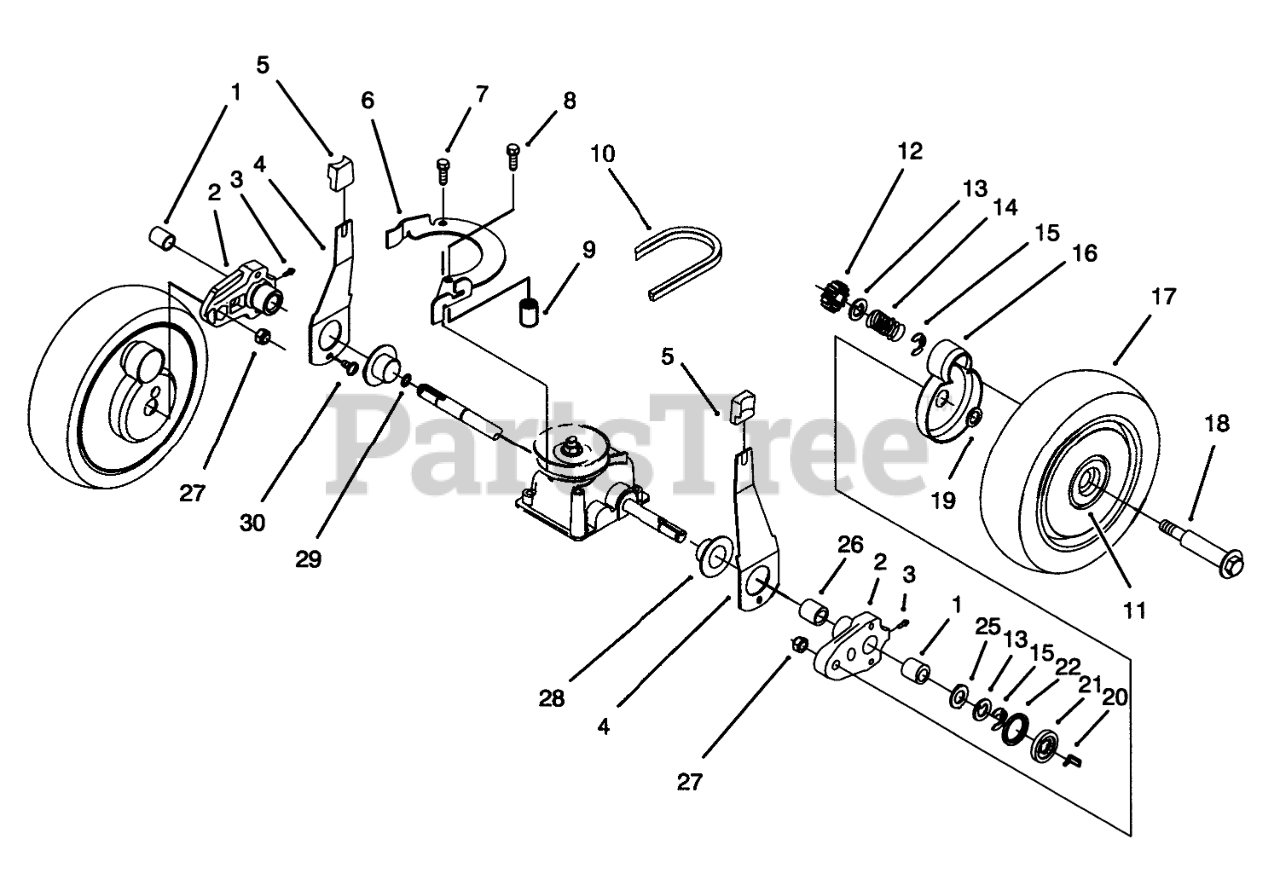

REAR AXLE & WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

2

Toro 63-8701

Pivot Arm Assembly (Incl. Ref. #1, 3, & 26)

$51.99

$

Usually ships in 3-6 days

0

3

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

4

Toro 63-8720

SPRING ARM ASM SP

$29.99

$

Usually ships in 3-6 days

0

5

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

6

Toro 92-2264

BRACKET-BELT GUIDE

$

$

Not available

7

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

8

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

9

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

10

Toro 91-2258

BELT-V

$18.99

$

In Stock, Qty 8

0

11

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

12

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

13

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, only 2 left!

0

14

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

15

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 6

0

16

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

17

Toro 14-9959

Wheel-Tire & Gear Ass-y (Incl. Ref. #11)

$62.99

$

In Stock, only 2 left!

0

18

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

19

Toro 74-1670

SPACER-COVER, WHEEL

$7.99

$

Usually ships in 3-6 days

0

20

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

Note: Not illustrated

$7.49

$

In Stock, Qty 12

0

21

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

22

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 5

0

25

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, only 3 left!

0

26

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 6

0

27

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

28

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

29

Toro 237-153

O-RING

$4.49

$

Usually ships in 3-6 days

0

30

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
