20432 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

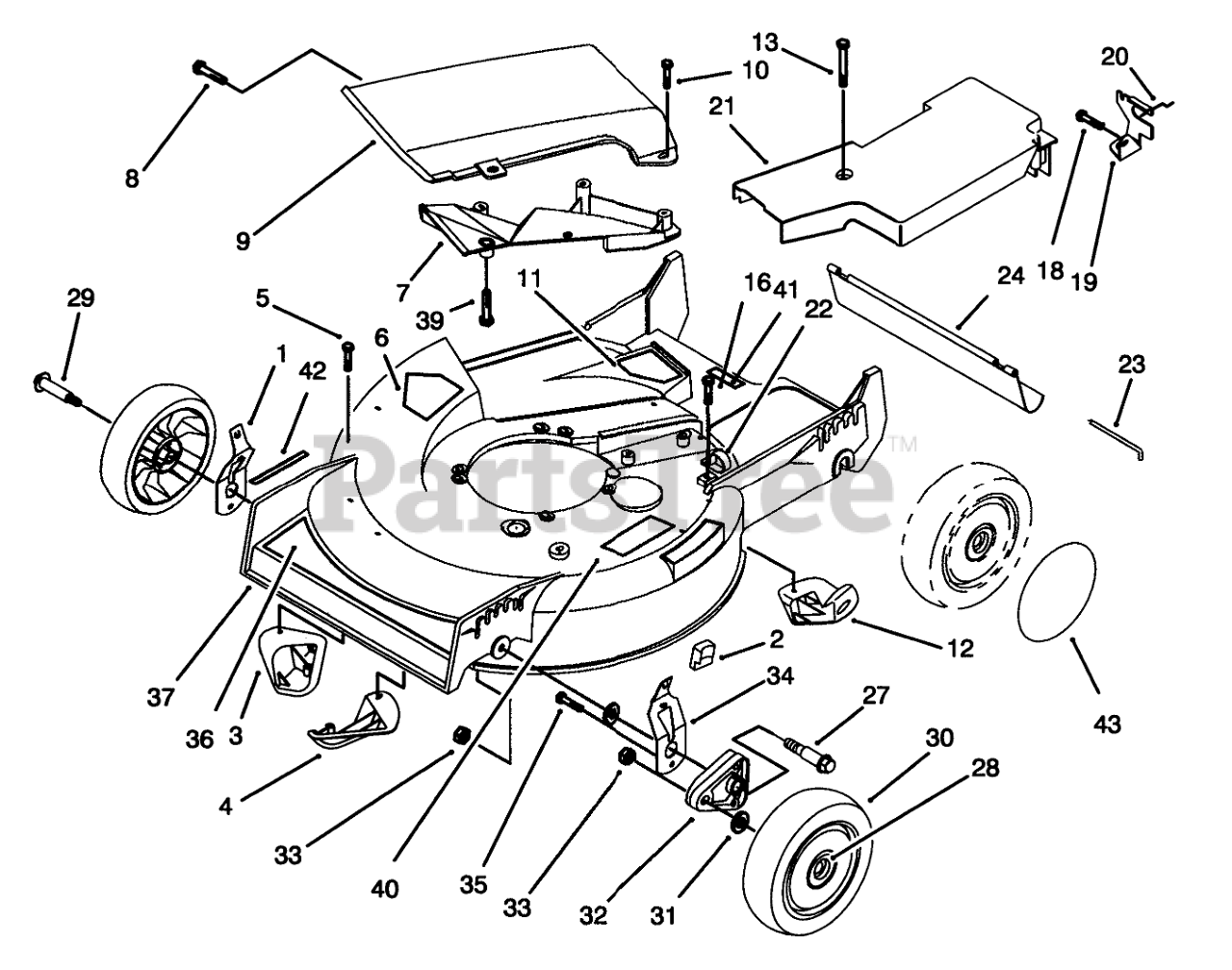

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

4

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 14-4069

Recycler Cover Assembly (Incl. Ref. #7 & 39)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

13

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

20

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

21

Toro 82-9911

BELT COVER

$

$

Not available

22

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

23

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

24

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

27

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

28

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

29

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

30

Toro 11-9509

Wheel & Tire Assembly (Incl Ref. #28)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

31

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

32

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

33

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

34

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

35

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

36

Toro 92-2283

DECAL - DECK

$

$

Not available

37

Toro 16-1599

Housing (Incl. Ref. #3-6, 11, 12, 18 & 40-42)

$994.99

$

Usually ships in 3-6 days

0

39

Screw-Plastite

$

$

Not available

40

Toro 71-1280

DECAL-INSTRUCTION, SAFETY

$31.99

$

In Stock, Qty 13

0

41

Toro 92-1779

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

42

Toro 92-2279

DECAL - HOC

$

$

Not available

43

Toro 91-2253

WHEEL COVER
(Superseded to 100-6351)

$21.99

$

Usually ships in 3-6 days

0
