20432 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

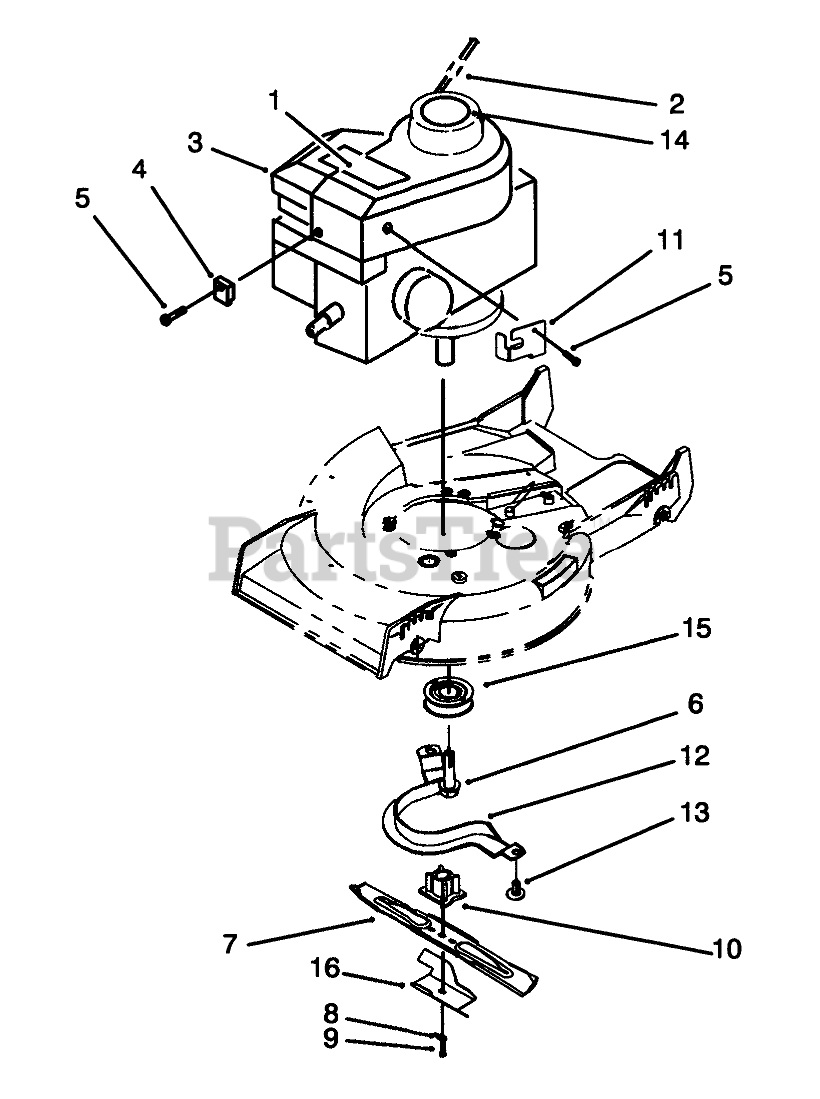

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2297

DECAL - ENGINE

$

$

Not available

2

Toro 2210-316

STOP-ROPE

Note: Service Replacement Part

$7.99

$

Usually ships in 3-6 days

0

3

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

4

Toro 86-7980

CASING CLAMP F/W ENGINE

$

$

Not available

5

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

8

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

9

Toro 26-0670

SCREW-BLADE

$

$

Not available

10

Toro 52-7320

BLADE RETAINER

$77.99

$

In Stock, only 1 left!

0

11

Toro 92-3149

BRACKET - CABLE

$

$

Not available

12

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 92-2296

Decal-Toro
(Superseded to 68-5370)

$8.49

$

Usually ships in 3-6 days

0

15

Toro 92-2271

Pulley-Drive
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

16

Toro 92-1599

Accelerator
(Superseded to 92-1599-03)

$79.99

$

Usually ships in 3-6 days

0
