20431 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 95902-3154-01 Parts Diagram

Walk-Behind Mower

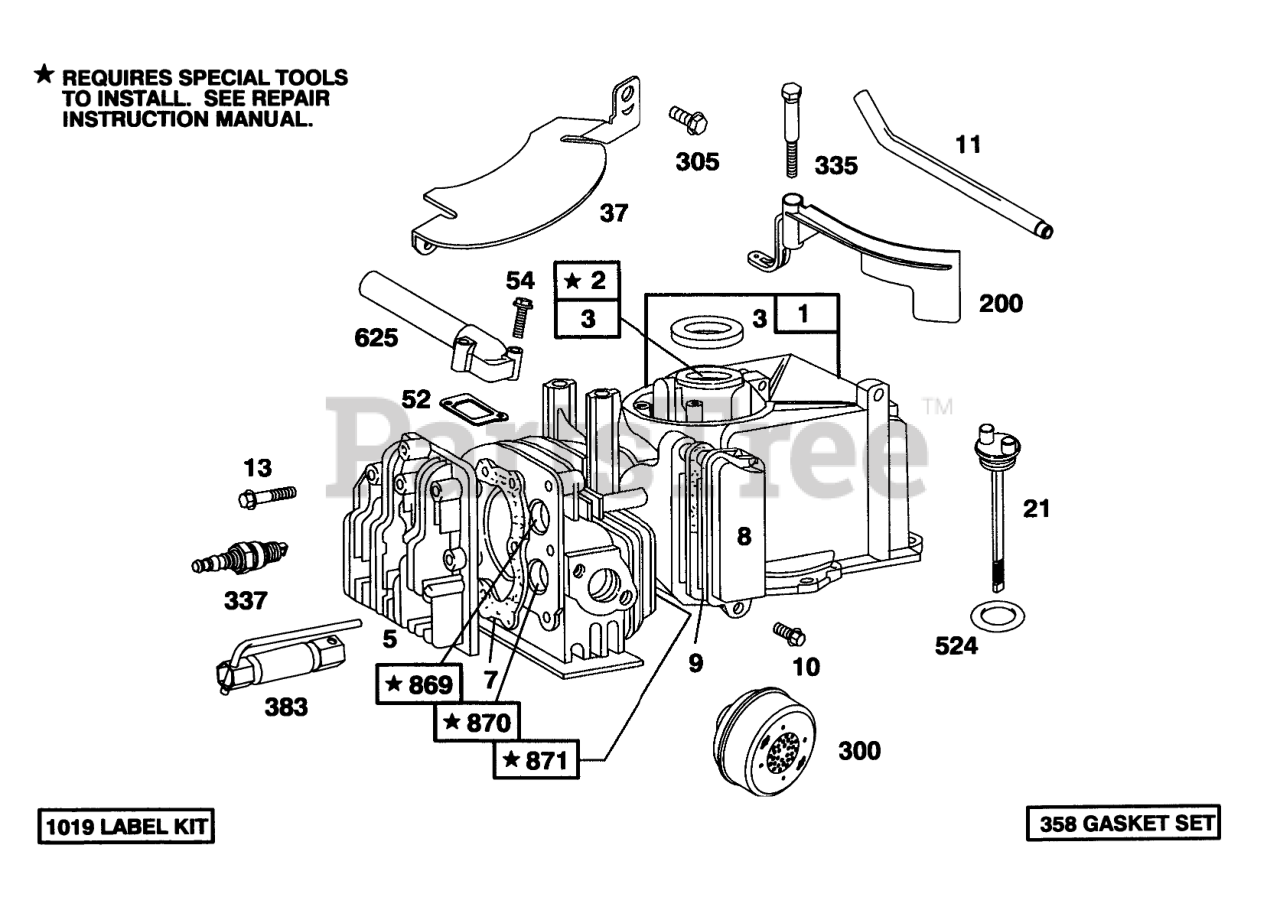

ENGINE BRIGGS & STRATTON MODEL 95902-3154-01 Parts Diagram

  • Title

1

Briggs & Stratton 399164

Cylinder Assembly
(Superseded to 699653)

$

$

Not available

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 298989.

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 213942

Head-Cylinder
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272536

Gasket-Cylinder Head
(Superseded to 698717)

Note: Included in Gasket Set-Part No. 298989.

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495785

Breather-Valve Chamber
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

Gasket-Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 298989.

$4.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231774

Tube-Breather
(Superseded to 691245)

$8.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 281081

Plug-Oil Filler
(Superseded to 691913)

$9.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 223150

Guard-Flywheel
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Gasket-Intake Elbow
(Superseded to 270345S)

Note: Included in Gasket Set-Part No. 298989.

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

Screw Intake Elbow Mtg.
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 281024

Blade-Govemor
(Superseded to 691912)

$13.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 394569

Muffler-Exhaust
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Screw-Blo. Hsg. Mtg.
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

335

Briggs & Stratton 94732

Screw-Armature and Gov. Blade Mounting Sem
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

524

Briggs & Stratton 271485

Seal-O-Ring
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 298989.

$5.49

$

In Stock, Qty 11

0

625

Briggs & Stratton 298775

Tube Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Ex. Valve
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Exhaust Valve
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Guide-Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491082

Label Kit

$

$

Not available
