20431 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

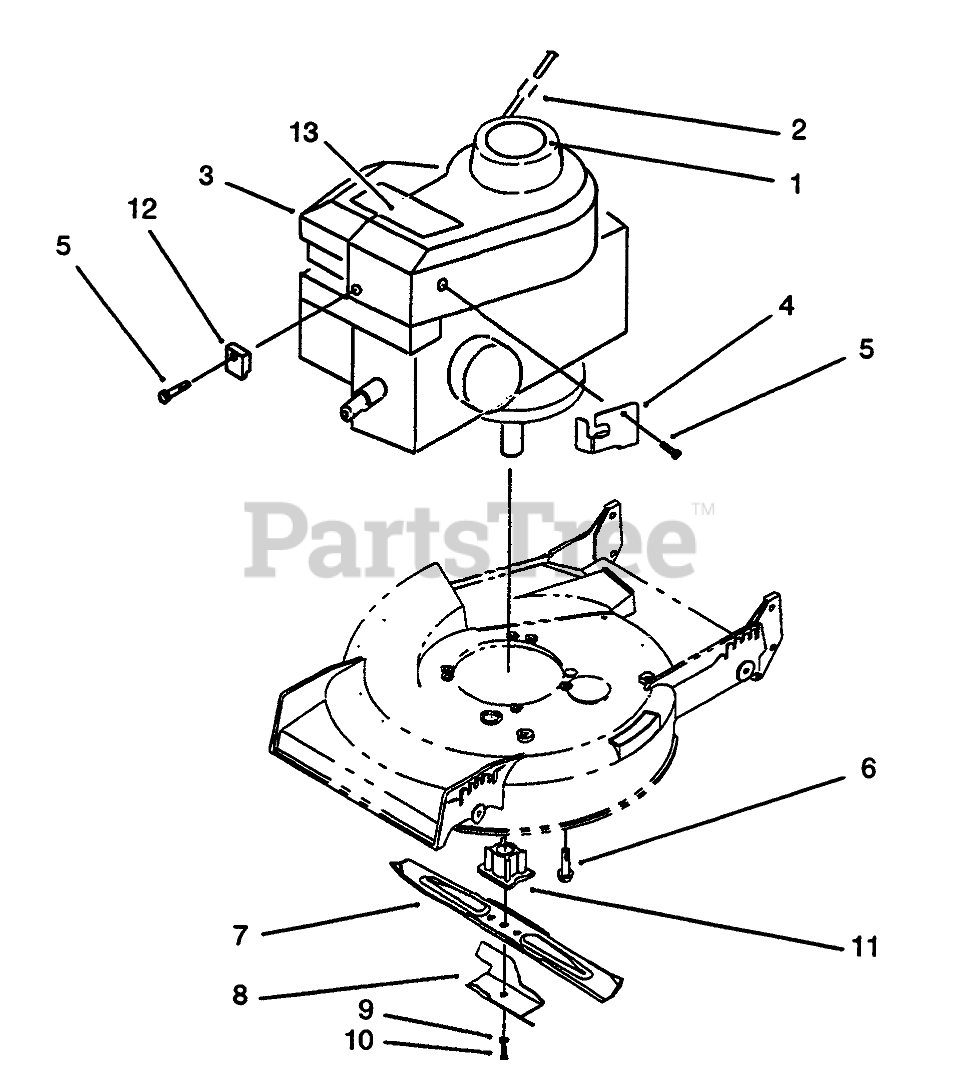

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2296

Decal-Toro
(Superseded to 68-5370)

$8.49

$

Usually ships in 3-6 days

0

2

Toro 2210-316

STOP-ROPE

Note: Provided with Engine

$7.99

$

Usually ships in 3-6 days

0

3

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

4

Toro 92-3149

BRACKET - CABLE

$

$

Not available

5

Toro 86-7990

CLAMP SCREW F/W ENGINE

Note: Provided with Engine

$3.49

$

Usually ships in 3-6 days

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 14-9419

Blade
(Superseded to 91-2256-03)

$31.99

$

In Stock, only 1 left!

0

8

Toro 92-1599

Accelerator
(Superseded to 92-1599-03)

$76.99

$

Usually ships in 3-6 days

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 52-7320

BLADE RETAINER

$65.99

$

In Stock, only 1 left!

0

12

Toro 86-7980

CASING CLAMP F/W ENGINE

Note: Provided with Engine

$1.49

$

Usually ships in 3-6 days

0

13

Toro 92-2297

DECAL - ENGINE

$

$

Not available
