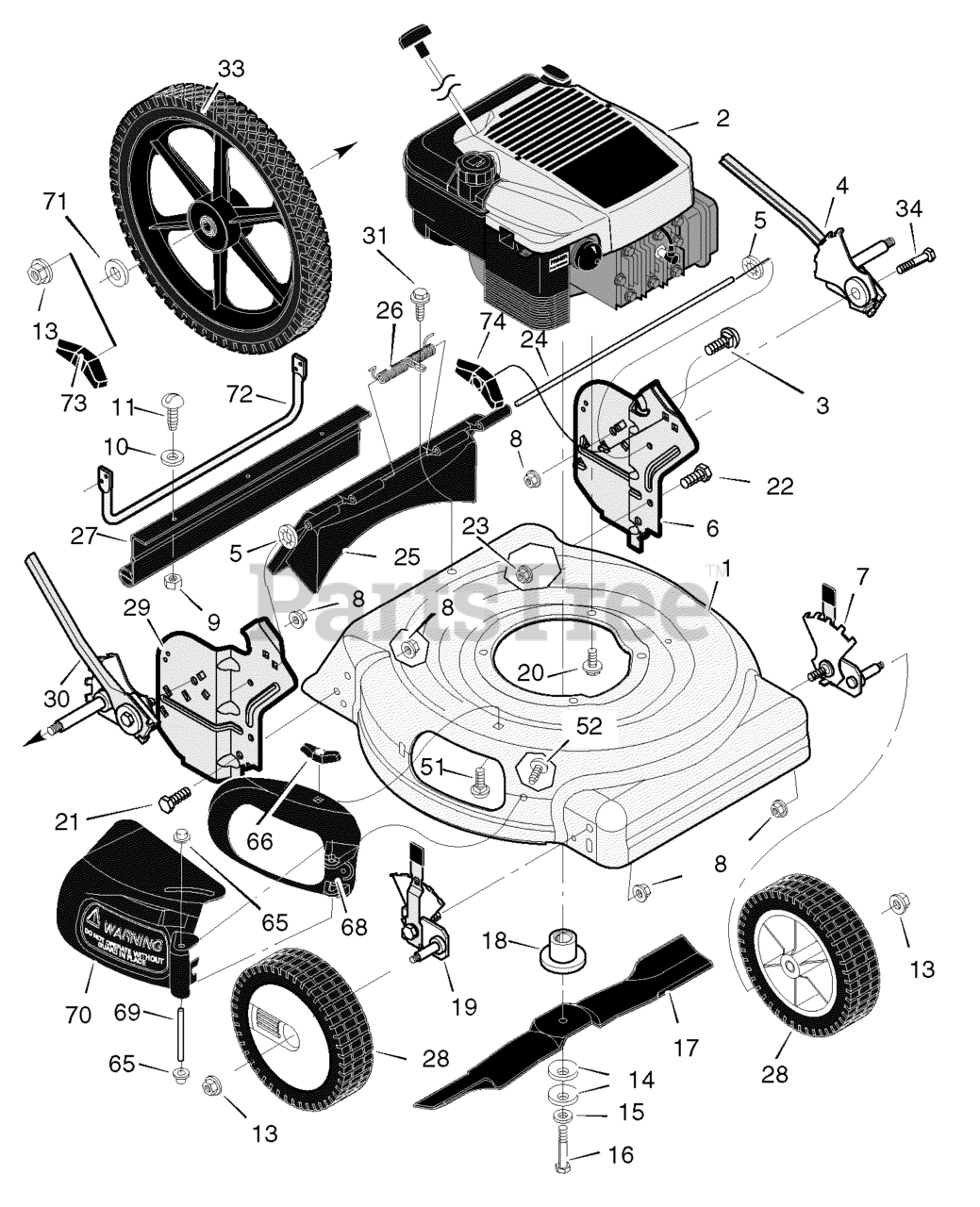

204210x8E - Scotts 20" Walk-Behind Mower (2004) Side Discharge Models w/14" Rear Wheels Parts Diagram

20" Walk-Behind Mower

Side Discharge Models w/14" Rear Wheels Parts Diagram

  • Title

1

Murray 776153

Housing

$240.99

$

Usually ships in 2-12 days

0

2

Engine *

$

$

Not available

3

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

4

Murray 1101892

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49

Retainer, Push

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101245E700

Bracket, Left Handle

$

$

Not available

7

Murray 1101899

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124

Washer

$

$

Not available

16

Murray 01X153

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 672763E701

Blade

$

$

Not available

18

Murray 672503

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 1101898

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

22

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 25)

$

$

Currently unavailable

25

Murray 672610

Door, Rear (Black)

$11.99

$

Usually ships in 2-12 days

0

25

Murray 672612

Door, Rear (Gray)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 166X44

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 1 left!

0

27

Murray 671969

Guard, Rear

$

$

Not available

28

Wheel & Tire *

$

$

Not available

29

Murray 1101244E700

Bracket, Right Handle

$8.49

$

Usually ships in 2-12 days

0

30

Murray 1101892

Adjuster, Right Rear Height

$

$

Currently unavailable

31

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

33

Wheel, Rear *

$

$

Not available

51

Murray 002X16

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

Murray 26X221

Screw

$3.49

$

Usually ships in 2-12 days

0

65

Murray 028X42

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

66

Murray 71495

Wingnut

$

$

Not available

68

Murray 671926

Bezel (Black)

$

$

Not available

68

Murray 672190

Bezel (Gray)

$15.99

$

Usually ships in 2-12 days

0

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute (Black)

$3.99

$

Usually ships in 2-12 days

0

70

Murray 672191

Deflector, Chute (Gray)

$

$

Not available

71

Murray 017X91 Z

Washer

$

$

Currently unavailable

72

Murray 672737E701

Brace

$

$

Not available

73

Murray 672449

Knob

$5.99

$

Usually ships in 2-12 days

0

74

Murray 71495

Knob

$

$

Not available

--

Murray F-040460L

Instruction Book

$

$

Currently unavailable

34

Murray 01X108

Bolt

$3.49

$

Usually ships in 2-12 days

0
