204210x50C - Murray 20" Walk-Behind Mower (2003) Handle And Bag Assembly Parts Diagram

20" Walk-Behind Mower

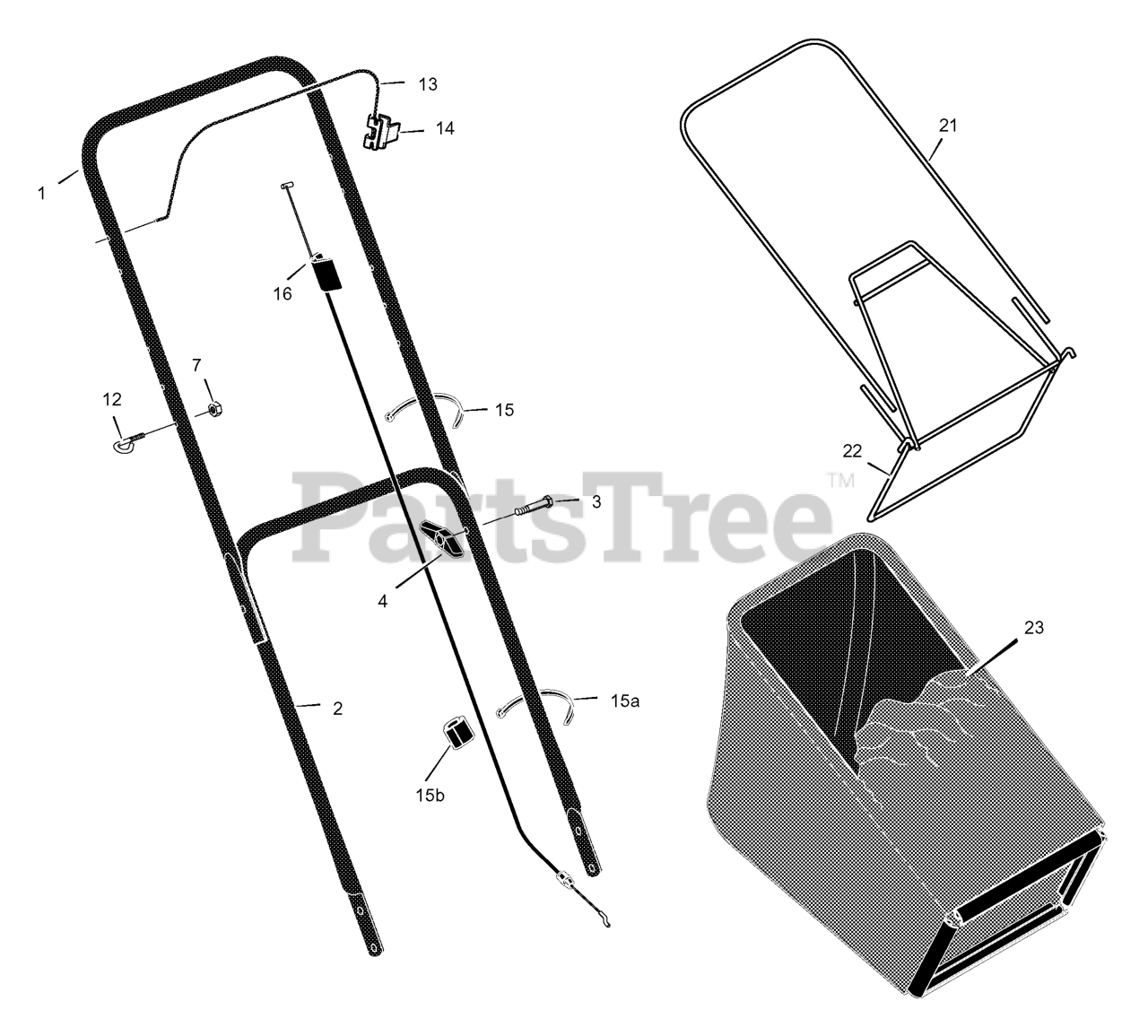

Handle And Bag Assembly Parts Diagram

  • Title

1

Murray 1101555E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 672874E724

Handle, Lower (Gray)

$

$

Not available

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 671924E701MA

Engine Stop Lever
(Superseded to 7101742AYP)

$6.49

$

Usually ships in 2-12 days

0

14

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0

15

UNKNOWN

$

$

Not available

15A

Murray 071372MA

Tie, Cable

$4.49

$

In Stock, only 1 left!

0

15B

Murray 1101353MA

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

16

Murray 1101360MA

Engine Stop Cable

$12.99

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672905MA

Frame Assembly

$153.99

$

In Stock, only 1 left!

0

23

Murray 1101032MA

Bag, Cloth
(Superseded to 1101031MA)

$164.99

$

Usually ships in 2-12 days

0
