20407 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

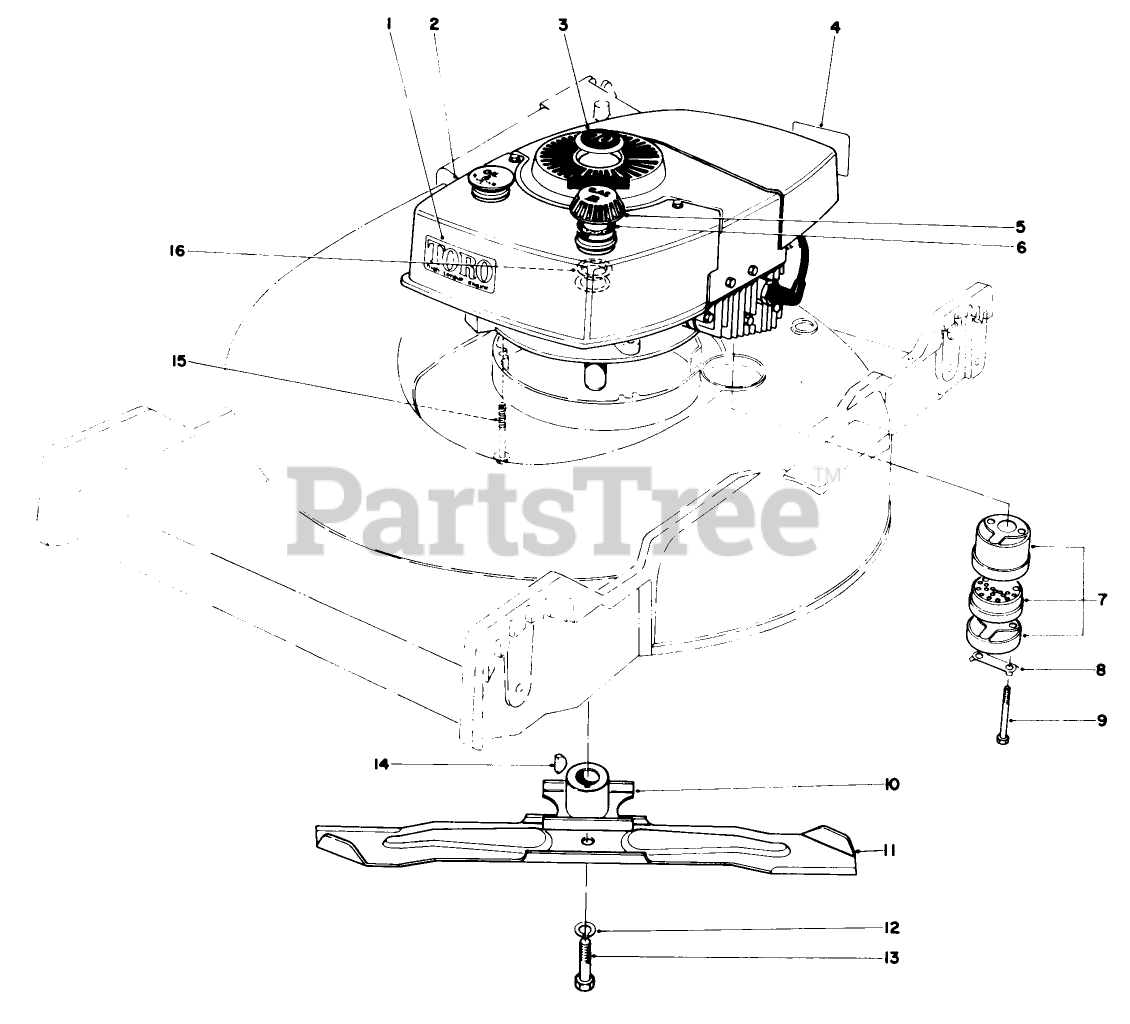

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-542

Engine

$

$

Currently unavailable

3

Toro 21-4870

PLUG BUTTON

$

$

Not available

4

Toro 20-2710

Decal Maintenance

$

$

Not available

5

Toro 27-7870

Gas Cap (Incl. Ref. #6 & 16)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 5-4769

Muffler Assembly (Incl. Ref. #8 & 9)

$54.99

$

Usually ships in 3-6 days

0

8

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

11

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

14

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

15

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0

16

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

Toro 6-8449

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 26-9510

Replacement Stud Kit

Note: Not illustrated

$

$

Not available
