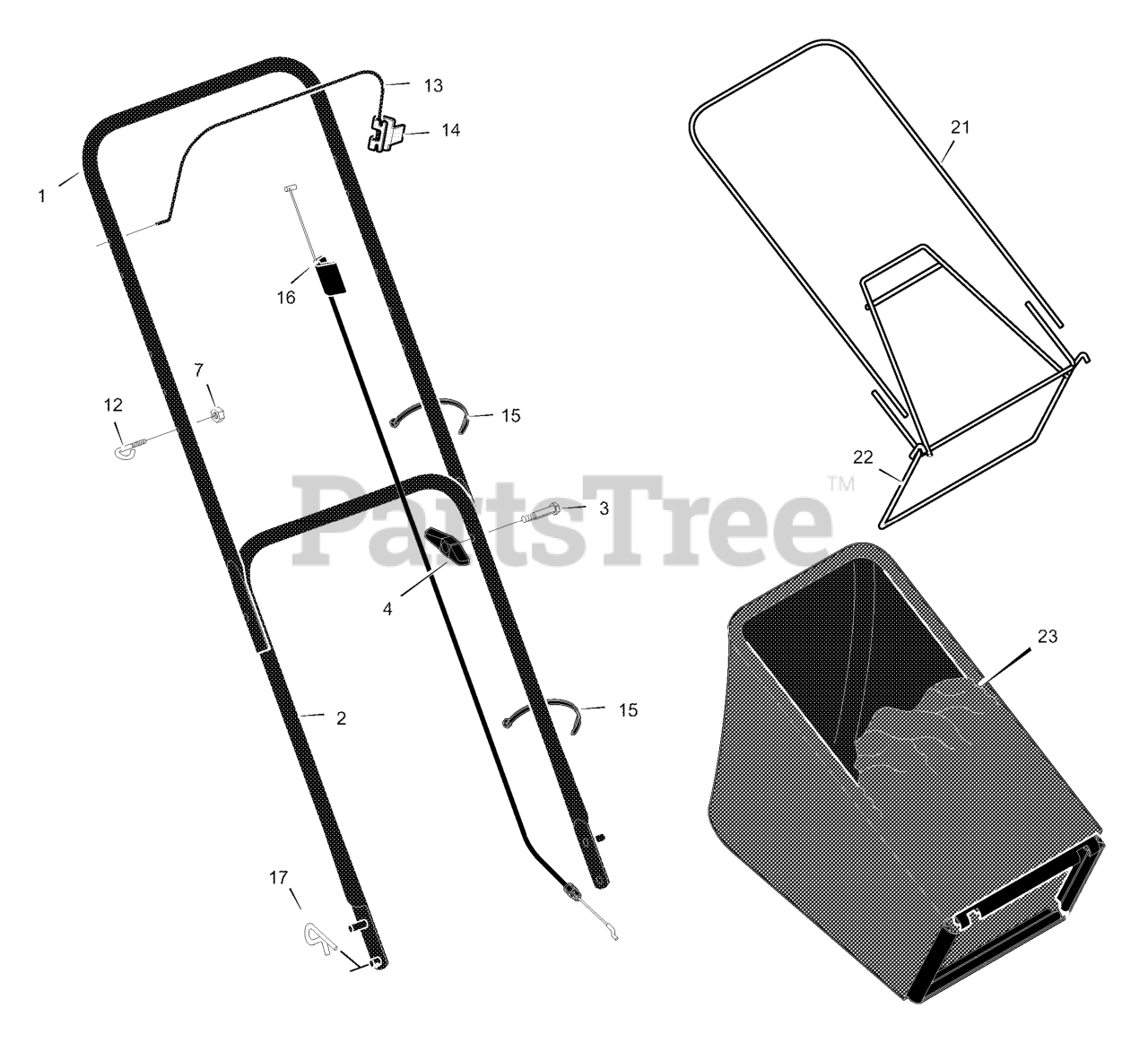

20405x30B - Murray 20" Walk-Behind Mower (2000) Handle & Bag Assembly Parts Diagram

20" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 671918E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 1101010E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 671924E700

Engine Stop Lever

$

$

Not available

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 672832

Engine Stop Cable

$

$

Currently unavailable

17

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672614

Frame Assembly

$

$

Not available

23

Murray 672069

Bag, Cloth

$

$

Currently unavailable
