20405B - Murray 20" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

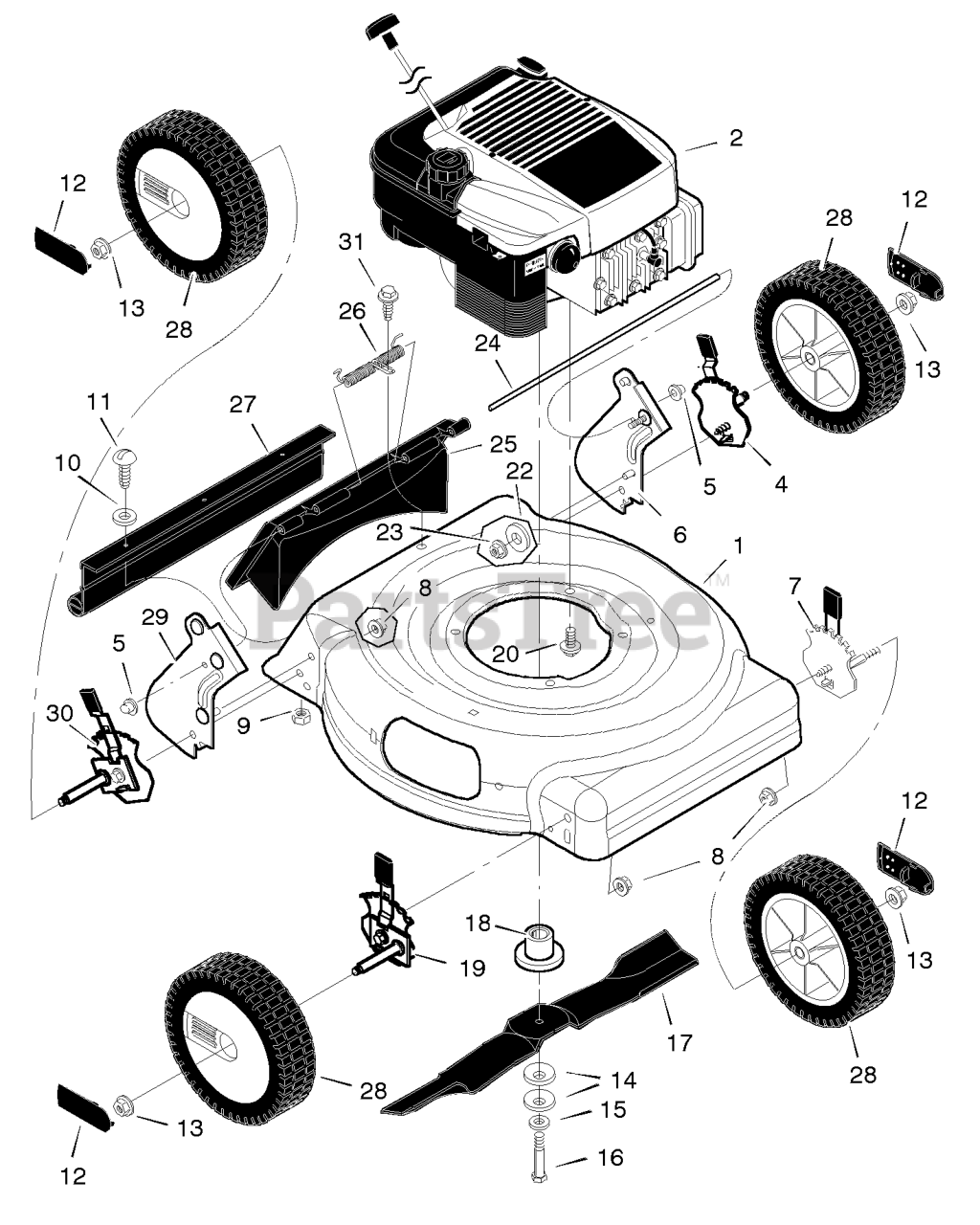

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 776005

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

4

Murray 672605A

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49MA

Nut, Push

$3.99

$

In Stock, Qty 13

0

6

Murray 672591

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 672601A

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

Murray 017X38MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

16

Murray 01X142MA

Bolt

$8.49

$

In Stock, only 2 left!

0

17

Murray 671921E701

Blade

$

$

Not available

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600A

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

22

Murray 17X146MA

Washer

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 672611

Door, Rear

$95.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

$14.99

$

In Stock, only 1 left!

0

27

Murray 671970MA

Guard, Rear

$13.99

$

Usually ships in 2-12 days

0

28

Murray 672080

Wheel (Light Gray)

$7.49

$

Usually ships in 2-12 days

0

29

Murray 672590

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 672604A

Adjuster, Right Rear Height

$

$

Currently unavailable

31

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

--

Murray F-98448

Instruction Book

$

$

Currently unavailable
