20384 - Toro Super Recycler Walk-Behind Mower (SN: 402082000 - 402661154) IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

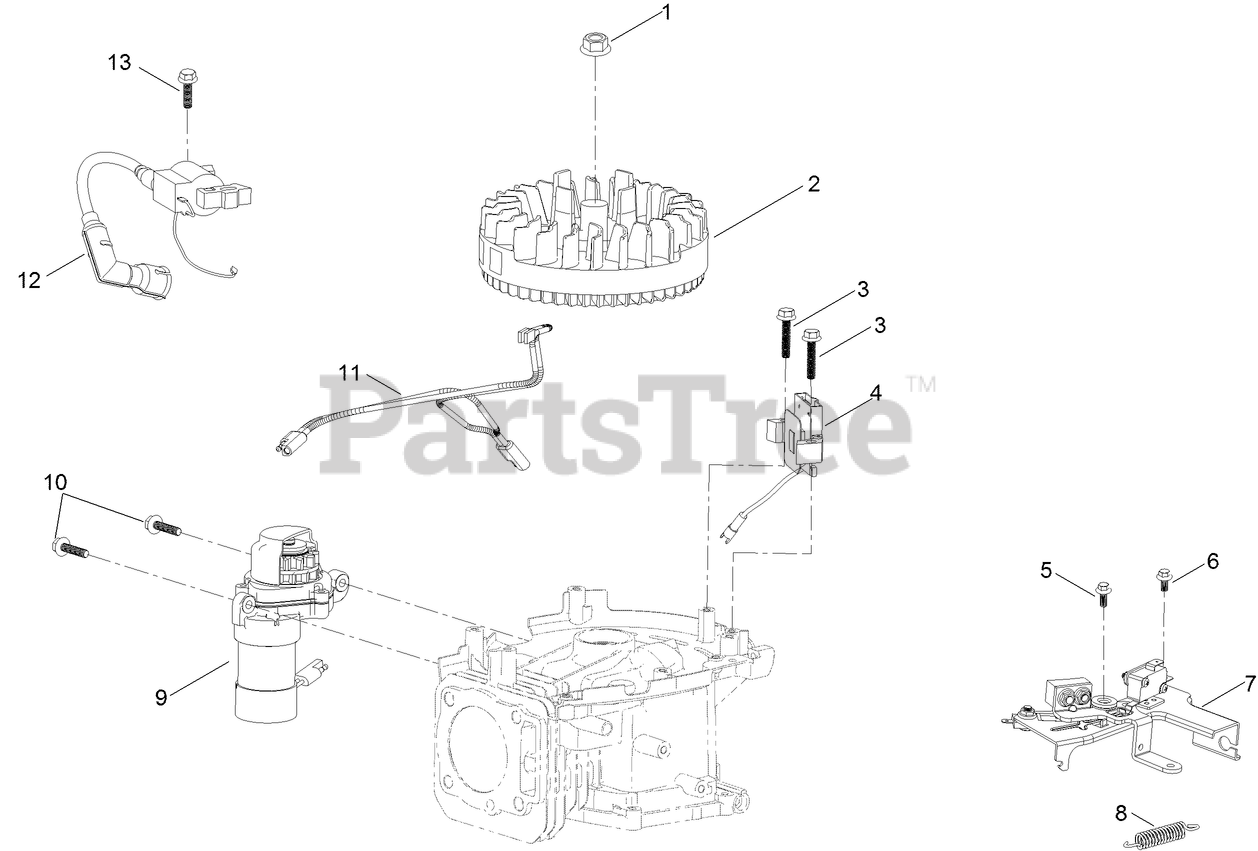

IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 133-9917

FLYWHEEL
(Superseded to 139-0619)

$101.99

$

Usually ships in 3-6 days

0

3

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

4

Toro 136-7861

ALTERNATOR

$45.99

$

Usually ships in 3-6 days

0

5

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

6

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 136-7873

BRAKE ASM

$29.99

$

Usually ships in 3-6 days

0

8

Toro 133-9890

SPRING-BRAKE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 136-7862

MOTOR-STARTER
(Superseded to 139-0617)

$239.99

$

Usually ships in 3-6 days

0

10

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

11

Toro 133-9921

HARNESS-MOTOR, STARTER

$30.99

$

Usually ships in 3-6 days

0

12

Toro 136-7870

IGNITION COIL ASM

$66.99

$

In Stock, only 1 left!

0

13

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0
