20384 - Toro Super Recycler Walk-Behind Mower (SN: 400000000 - 402081999) IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

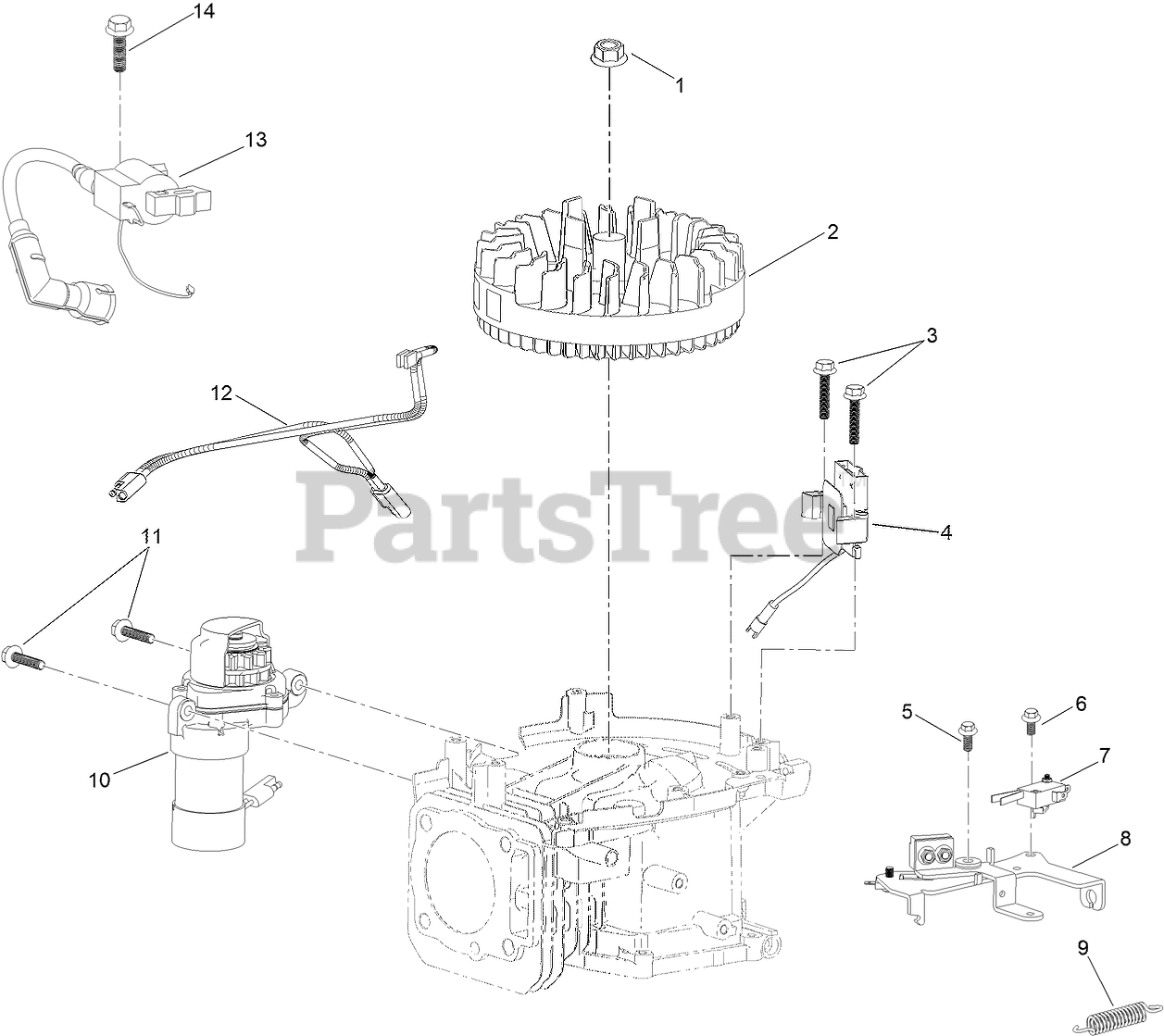

IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 133-9917

FLYWHEEL
(Superseded to 139-0619)

$101.99

$

Usually ships in 3-6 days

0

3

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

4

Toro 133-9918

ALTERNATOR
(Superseded to 136-7861)

$45.99

$

Usually ships in 3-6 days

0

5

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

6

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 133-9919

SWITCH-STOP, ENGINE

$14.99

$

Usually ships in 3-6 days

0

8

Toro 133-9889

BRAKE ASM

$28.99

$

Usually ships in 3-6 days

0

9

Toro 133-9890

SPRING-BRAKE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 133-9920

MOTOR-STARTER
(Superseded to 139-0617)

$239.99

$

Usually ships in 3-6 days

0

11

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

12

Toro 133-9921

HARNESS-MOTOR, STARTER

$30.99

$

Usually ships in 3-6 days

0

13

Toro 121-4187

IGNITION COIL ASM
(Superseded to 136-7870)

$66.99

$

In Stock, only 1 left!

0

14

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0
