20384 - Toro Super Recycler Walk-Behind Mower (SN: 400000000 - 402081999) AIR INTAKE AND FILTRATION ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

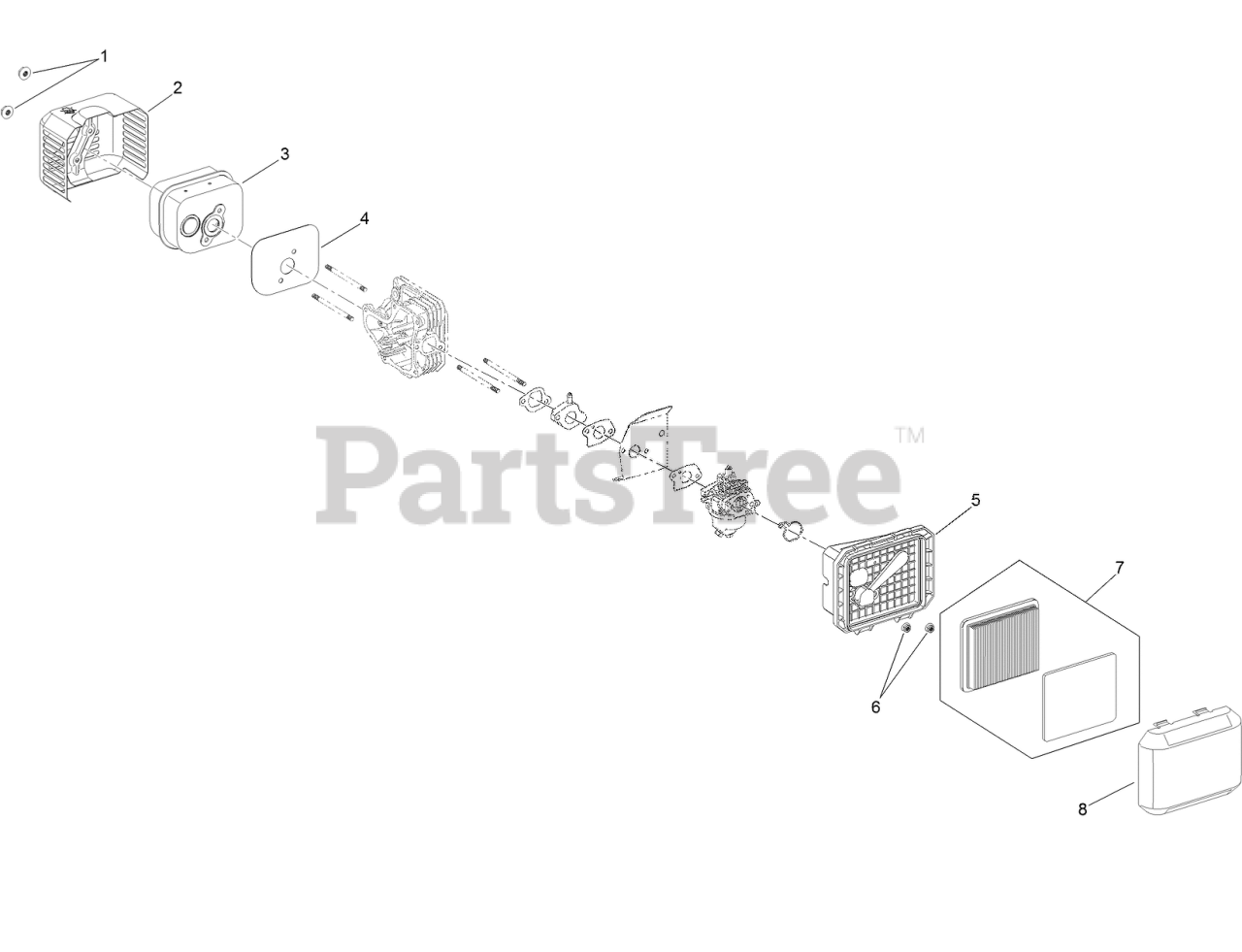

AIR INTAKE AND FILTRATION ASSEMBLY Parts Diagram

  • Title
1

Toro 121-0010

NUT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

2

Toro 133-9906

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

3

Toro 121-0166

MUFFLER ASM

$30.99

$

Usually ships in 3-6 days

0

4

Toro 121-0034

GASKET-EXHAUST

$2.49

$

In Stock, only 1 left!

0

5

Toro 133-9898

BASE-CLEANER, AIR
(Superseded to 133-9928)

$12.99

$

In Stock, only 1 left!

0

6

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

7

Toro 119-1909

AIR FILTER AND PREFILTER KIT

$19.99

$

In Stock, Qty 5

0

8

Toro 121-0364

COVER-CLEANER, AIR

$9.49

$

In Stock, only 1 left!

0
