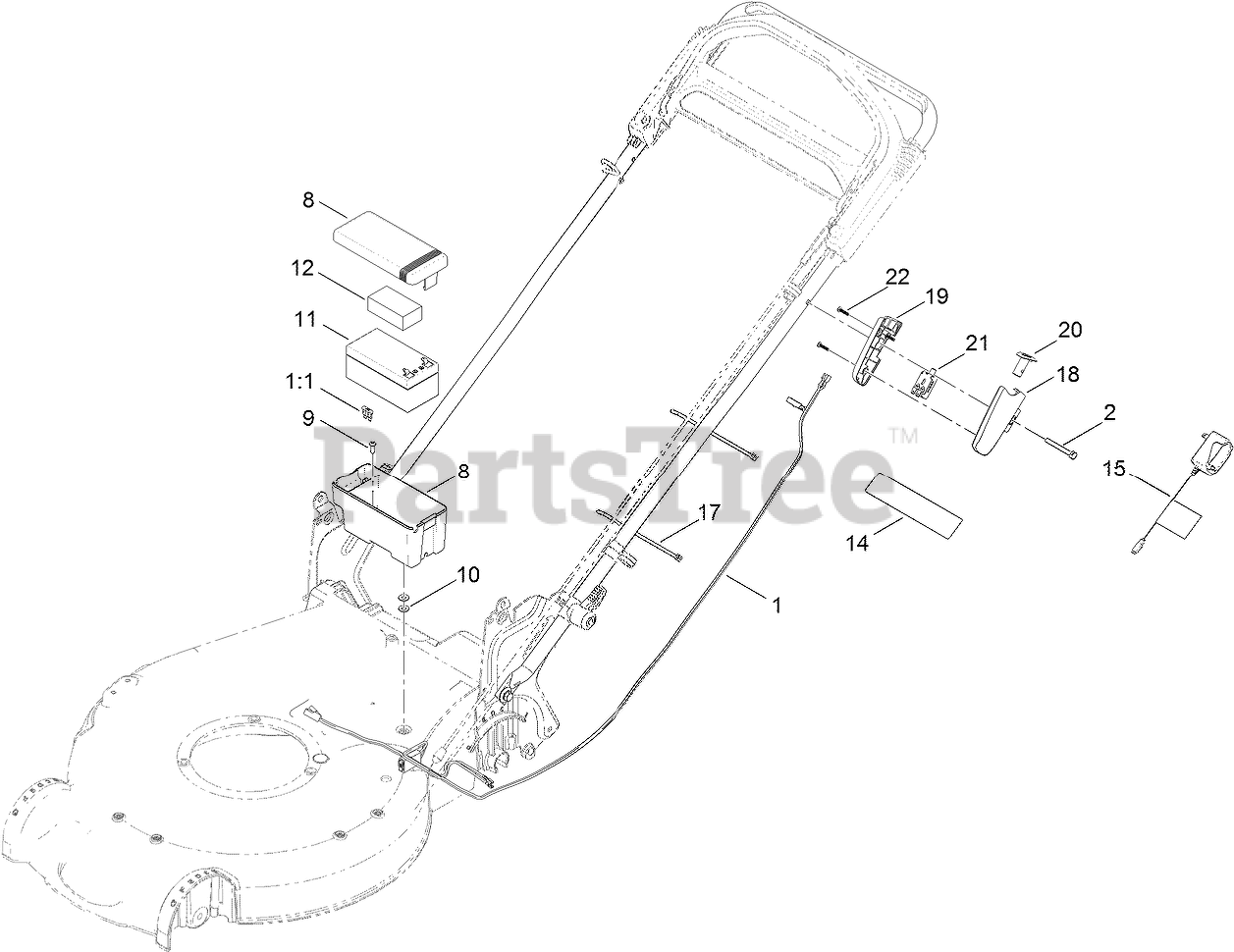

20384 - Toro Super Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ELECTRICAL ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 125-5025

HARNESS-WIRE

$86.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

2

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

8

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

9

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 106-8397

BATTERY-WET

$79.99

$

In Stock, Qty 5

0

12

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

14

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

15

Toro 114-1588

CHARGER-BATTERY
(Superseded to 136-9126)

$41.99

$

In Stock, Qty 18

0

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

18

Toro 125-2468

HOUSING-SWITCH, LH
(Superseded to 136-5853)

$3.99

$

In Stock, Qty 6

0

19

Toro 125-2469

HOUSING-SWITCH, RH
(Superseded to 136-5853)

$3.99

$

In Stock, Qty 6

0

20

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 20+

0

21

Toro 121-9173

SWITCH-PUSH BUTTON

$23.99

$

In Stock, only 2 left!

0

22

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
