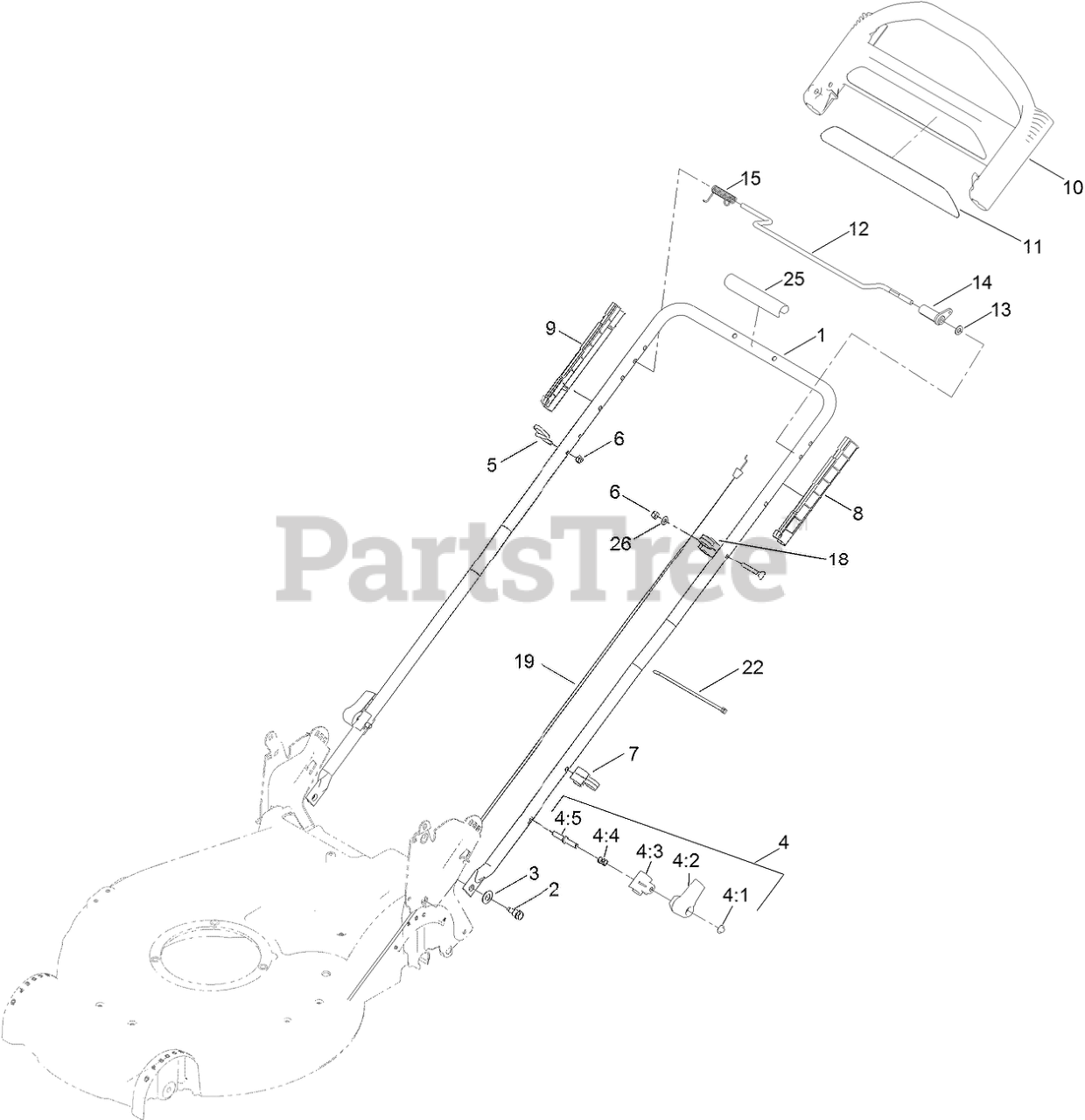

20383 - Toro Super Recycler Walk-Behind Mower (SN: 404314000 - 999999999) Handle Assembly Parts Diagram

Super Recycler Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title
1

$83.99

$

Usually ships in 3-6 days

0

2

Toro 115-1958

BOLT-SHOULDER

$8.49

$

In Stock, only 2 left!

0

3

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0

4

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

4:2

Toro 114-7995

LEVER
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:3

Toro 114-7996

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

4:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

4:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

8

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

11

$9.99

$

In Stock, only 1 left!

0

12

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

15

Toro 121-9118

See Supercession: 136-7166
(Superseded to 136-7166)

$3.49

$

In Stock, Qty 6

0

18

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 7

0

19

Toro 117-9389

CABLE-TRACTION

$39.99

$

In Stock, only 1 left!

0

22

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

25

Toro 131-4551

HANDLE-COVER

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
