20383 - Toro Super Recycler Walk-Behind Mower (SN: 402082000 - 404313999) Engine and Blade Assembly Parts Diagram

Super Recycler Walk-Behind Mower

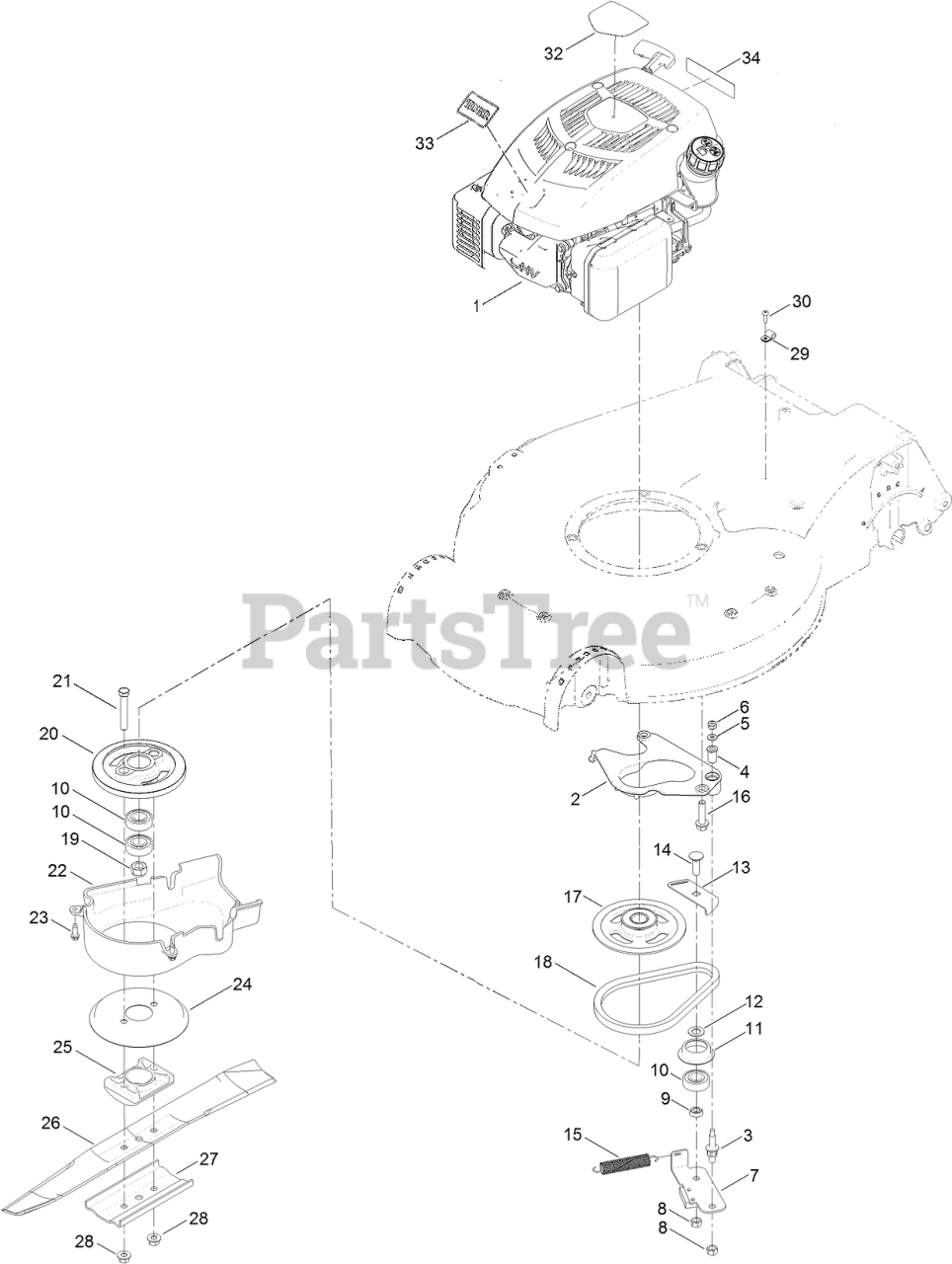

Engine and Blade Assembly Parts Diagram

  • Title
1

Toro 133-9861

ENGINE-1P65F-2

$515.99

$

Usually ships in 3-6 days

0

2

Toro 133-8189

PLATE-ANCHOR

$25.99

$

Usually ships in 3-6 days

0

3

Toro 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 5

0

4

Toro 107-0797

BUSHING

$6.49

$

In Stock, Qty 8

0

5

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

6

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

7

Toro 125-1063

PLATE-BRAKE

$23.99

$

In Stock, Qty 9

0

8

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

9

Toro 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

10

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

11

Toro 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 11

0

12

Toro 605256

SPACER

$2.99

$

In Stock, Qty 20+

0

13

Toro 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

14

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

15

Toro 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

16

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

17

Toro 117-5970

PULLEY

$41.99

$

Usually ships in 3-6 days

0

18

Toro 110-1790

BELT
(Superseded to 110-1790-SL)

$35.99

$

Usually ships in 3-6 days

0

19

Toro 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

20

Toro 107-0754

See Supercession: 126-8108
(Superseded to 126-8108)

$55.99

$

Usually ships in 3-6 days

0

21

Toro 3211-42

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

22

$21.99

$

Usually ships in 3-6 days

0

23

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 3 left!

0

25

Toro 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

26

Toro 108-3762-03

See Supercession: 133-8183-03
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 9

0

27

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

28

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

29

Toro 98-2256

CLAMP

$5.49

$

Usually ships in 3-6 days

0

30

$2.99

$

Usually ships in 3-6 days

0

32

Toro 136-9054

DECAL-SHROUD

$4.49

$

Usually ships in 3-6 days

0

33

$2.49

$

Usually ships in 3-6 days

0

34

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
