20382 - Toro Super Recycler Walk-Behind Mower (SN: 404310000 - 999999999) Engine and Blade Assembly Parts Diagram

Super Recycler Walk-Behind Mower

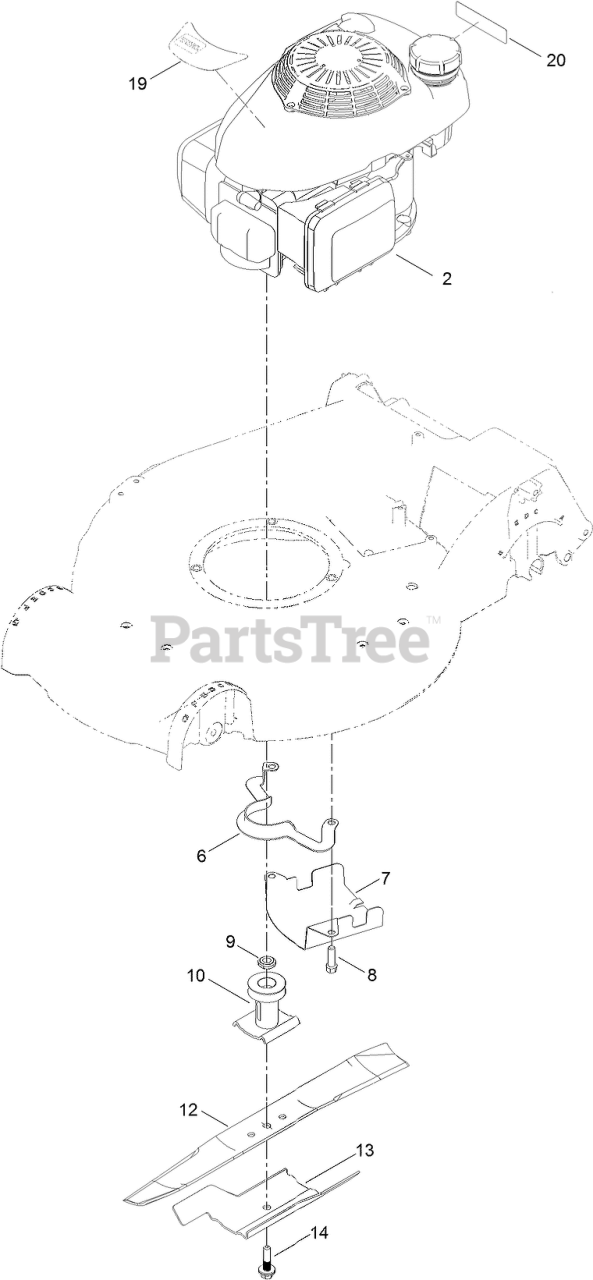

Engine and Blade Assembly Parts Diagram

  • Title

2

ENGINE-HONDA, GCV160LA0 S3B

Note: Not serviced separately

$

$

Not available

2

ENGINE-HONDA, GCV160LA0 S3B

Note: Obtain parts from www.honda-engines.com

$

$

Not available

6

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

7

Toro 107-7489-03

SHIELD-GRASS

$17.99

$

In Stock, only 1 left!

0

8

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 106-3999

SPACER-DRIVER

$3.49

$

In Stock, only 4 left!

0

10

Toro 114-2774

DRIVER-BLADE

$34.99

$

Usually ships in 3-6 days

0

12

Toro 133-8183-03

BLADE-21IN, RECYCLING

$22.99

$

In Stock, Qty 17

0

13

Toro 105-6848-03

ACCELERATOR-BLADE

$18.99

$

In Stock, only 1 left!

0

14

Toro 117-5270

BOLT-BLADE

$

$

Not available

19

Toro 131-0854

DECAL-SHROUD, HONDA

$3.99

$

Usually ships in 3-6 days

0

20

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0
