20382 - Toro Super Recycler Walk-Behind Mower (SN: 400000000 - 402081999) ENGINE AND BLADE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

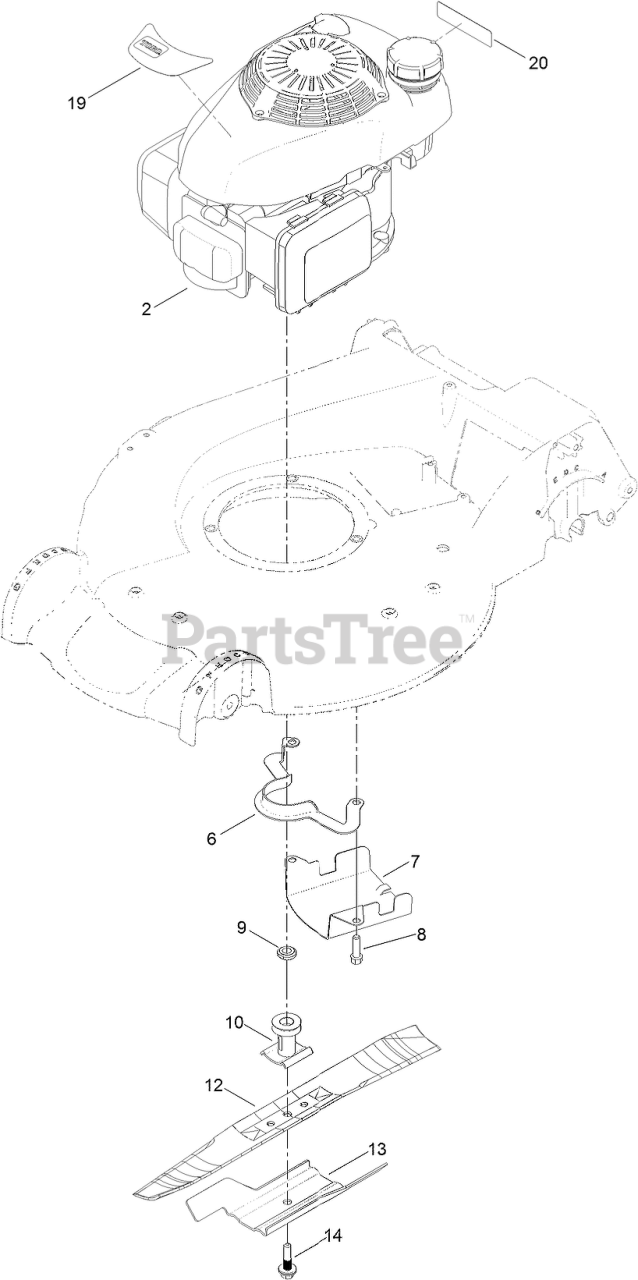

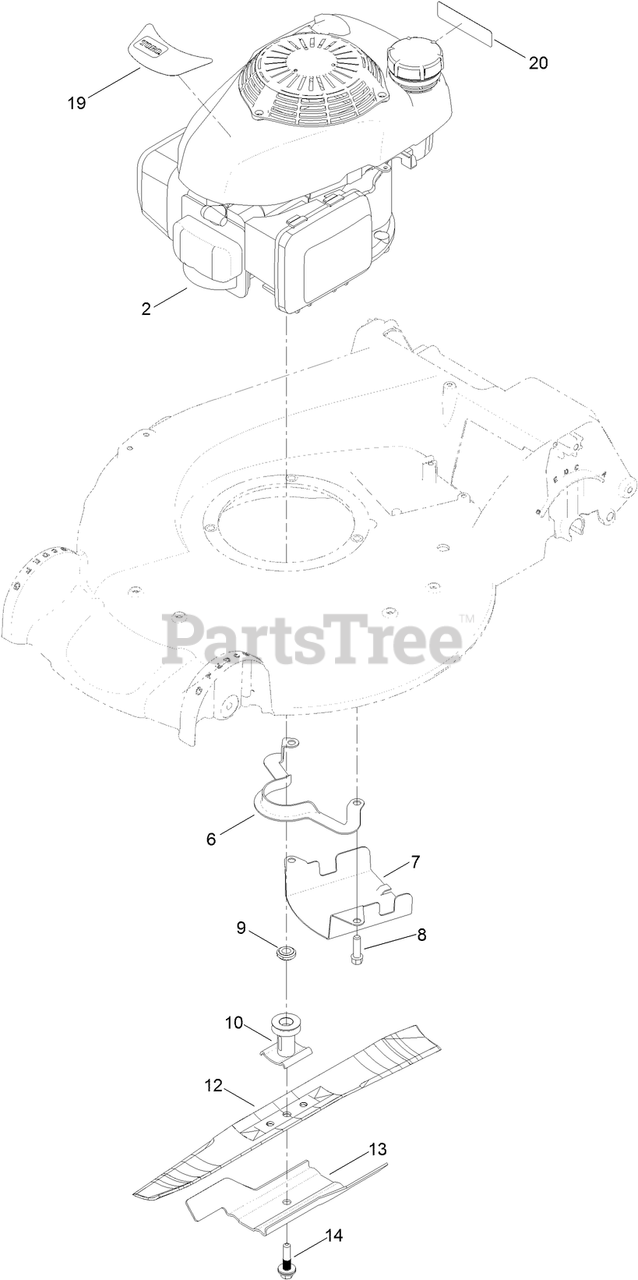

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

2

ENGINE-HONDA, GCV160LA0 S3B

Note: Not serviced separately

$

$

Not available

2

ENGINE-HONDA, GCV160LA0 S3B

Note: Obtain parts from www.honda-engines.com

$

$

Not available

6

Toro 108-8110-03

GUIDE-BELT

$15.99

$

In Stock, only 1 left!

0

7

Toro 107-7489-03

SHIELD-GRASS

$17.99

$

In Stock, only 1 left!

0

8

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

10

Toro 114-2774

DRIVER-BLADE

$34.99

$

Usually ships in 3-6 days

0

12

Toro 108-3762-03

BLADE-RECYCLING
(Superseded to 108-3762-S)

$29.99

$

In Stock, Qty 9

0

13

Toro 105-6848-03

Accelerator-Blade

$18.99

$

In Stock, only 1 left!

0

14

Toro 117-5270

BOLT-BLADE

$

$

Not available

19

Toro 131-0854

DECAL-SHROUD, HONDA

$3.99

$

Usually ships in 3-6 days

0

20

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
